Deploying Software Reclaimer

Before deployment, the Software Reclaimer requires configuration, described in Configuring the Software Reclaimer below.

During installation of 1E, 1E Setup (specifically the SLA Platform installer) copies three files into C:\ProgramData\1E\SLA Platform

If the executable is run without the customization files, it will display the default English text and 1E banner logo.

Overview

The Software Reclaimer is designed to run in two modes using the -mode parameter. These modes should be run at different times of the day, on all Windows workstations.

Opt-out mode processes optional software reclaim policies. When run, it contacts the SLA Operations Provider API to determine whether there is software to optionally uninstall from the local machine, and displays a dialog to the user only if there are polices for optional uninstallation. Optout mode does not uninstall any software. The Software Reclaimer does not need elevated rights to run in this mode, but does require a user to be logged on.

• If there isn't software to optionally uninstall, the SLA API returns an empty list, and the Software Reclaimer exits without displaying anything.

• If there is, the Software Reclaimer prompts the user for a response, and sends back the user's response to the SLA Operations Provider API

If the response is Remove software, then the server will convert the reclaim policy from optional to mandatory, so that the software will be uninstalled later. If the response is I still need this, then software is not uninstalled.

Mandatory mode processes mandatory reclaim policies. In this mode, the Reclaimer runs unattended and does not display any dialog or progress bars. When run, it contacts the SLA Operations Provider API service to determine whether there is software to uninstall from the local machine. For this to work, the Software Reclaimer must be run with administrative privileges.

• If there isn't software to uninstall, the server returns an empty list, and the Software Reclaimer exits.

• If there is, the SLA Operations Provider API returns the software it considers the highest priority to remove for the Software Reclaimer to act on immediately. The Reclaimer attempts to uninstall the software, returning the result to the SLA Operations Provider API.

Software Reclaimer command line

AppClarity.SoftwareReclaimer.exe [-mode <mode>] [-service "<serverURL>/CoreExternal/api/ReclaimAction/Action/"]

<serverURL>/CoreExternal/api/ReclaimAction/Action/

Configuring Software Reclaimer to use HTTP or HTTPS

If using HTTP

Specify HTTP in the server URL used to connect to the 1E Web Server (Master Stack):

• Either edit the server URL in each XML file(s).

• Use the -service parameter to override XML file(s).

If using HTTPS

You can configure the Software Reclaimer to use SSL over HTTPS to connect to the 1E website. The following applies to the 1E website's SSL certificate:

• It must be trusted by clients running the Software Reclaimer. This is also the same requirement for 1E clients. Refer to Client authentication certificates.

• Its public key must be encoded in each of the Software Reclaimer XML file(s).

Use the attached ReclaimerPublicKey.ps1 to encode the public key and add it to the XML file.

• Either run the script on the 1E Web Server (Master Stack).

• Or copy the XML file from the Web Server into the same folder as the PowerShell script, and then run the script.

If you have multiple XML files to support customizations then you will need to add the public key to each of them.

Using a non-standard port

A default installation of 1E uses standard ports HTTP 80 and HTTPS 443. You may wish to use a different port for Software Reclaimer, for example, if you previously used:

• HTTP 8335 or HTTPS 8336 with AppClarity 5.2.

• HTTP 8080 or HTTPS 8443 with SLA Platform 3.3 and AppClarity 6.1.

You can manually add a website binding after installation of 1E. You may already be using a non-standard port if specified in 1E Setup during installation of 1E, or you manually added a binding after installation for another application like Application Migration, or ActiveEfficiency.

Testing Software Reclaimer

If you simply want to demonstrate how the reclaimer behaves, or test customizations (refer to Customizing the dialogs), then you can use Demo mode.

If you run Software Reclaimer on a device that has a reclaim policy then it will process the reclaim in the normal way. That is, it will present the optout dialog if the policy is configured for optional uninstall, and uninstall the software in mandatory mode. You will not be able to easily repeat the test even if you re-install the software, because the policy will have been processed on the server and be subject to Site Settings affecting the Software Reclaimer, including uss_AutomaticUninstallOptOutInterval_Days (7) and uss_MinimumResendCompletedPolicy_Days (14).

AppClarity.SoftwareReclaimer.exe [-mode <mode>] [-service <serverURL>/CoreExternal/api/ReclaimAction/Action/] -nowait

You can see reclaim reports in Viewing the software reclaim reports.

Example command-line for testing mandatory mode

To view what policies affect a device, without processing a reclaim, you can test the URL in a browser:

<serverURL>/CoreExternal/api/ReclaimAction/Action/OptionalPolicy?machinegroup=<Domain Name>&machinename=<Machine Name>

<serverURL>/CoreExternal/api/ReclaimAction/Action/UninstallPolicy?machinegroup=<Domain Name>&machinename=<Machine Name>

<serverURL> is the binding used to connect to the 1E server which hosts the SLA Operations Provider API, for example: https://tachyon.acme.local:443

Below is an example XML response for a mandatory request. You would only see details for one application at any time. If you have multiple reclaims for the same device then the server will prioritize one at a time.

Example XML response for a mandatory request:

<ArrayOfUninstallableProduct xmlns="http://www.1e.com/appclarity/services/softwarereclaimer/" xmlns:i="http://www.w3.org/2001/XMLSchema-instance">
 <UninstallableProduct>
   <CorrelationId>1:2345:5678</CorrelationId>
   <ProductDescription>Microsoft Visio Premium 2010</ProductDescription>
   <UninstallCommandLines xmlns:a="http://schemas.microsoft.com/2003/10/Serialization/Arrays">
      <a:string>cscript.exe ".\Resources\VisioPro2010\VisioPro_2010.vbs"</a:string>
   </UninstallCommandLines>
   <UninstallableApplications xmlns:a="http://schemas.microsoft.com/2003/10/Serialization/Arrays">
      <a:string>Microsoft Visio Premium 2010</a:string>
   </UninstallableApplications>
   <Versions xmlns:a="http://schemas.microsoft.com/2003/10/Serialization/Arrays">
      <a:string>14.0.6029.1000</a:string>
   </Versions>
 </UninstallableProduct>
</ArrayOfUninstallableProduct>

Log files

Every time the Reclaimer runs it will create a local log file of the process it is doing. The location and name of the log file depends on what task the reclaimer is doing.

The following assumes you will create one Configuration Manager package, with two deployments. However, an additional two deployments are recommended for initial testing.

To setup the Software Reclaimer in Configuration Manager

1. Create a source folder in your Configuration Manager site source folder structure.

• Copy the AppClarity.SoftwareReclaimer.exe and optionally the two customization files into the source folder.

• Optionally include other customization files, if required for language support - see Customizing the dialogs.

2. In Configuration Manager console, deploy a new software distribution package, with two programs

• In package settings, point the source directory to the source folder where you copied all the files.

• For the newly created package, distribute to relevant distribution points.

• Create a Collections to be used specifically for the Software Reclaimer.

• Create Programs for the package – one for the mandatory mode and one for the opt-out mode.

• Create Deployments – one for each program.

Collections

We recommend you create at least one new collection specifically for use with the Software Reclaimer. DO NOT reuse an existing collection made for another purpose in case you need to add exclusions at a later date. The collection must contain all the Windows workstations you want to run the Software Reclaimer on. There may be instances where it is advisable to create more than one collection so that you can stagger the times the Software Reclaimer is run within your organization.

Programs

You must create up two programs for the package – one for opt-out mode and one for mandatory mode.

The parameters you need to set in Configuration Manager when you run it in mandatory mode are:

AppClarity.SoftwareReclaimer.exe -mode MANDATORY -service "<serverURL>/CoreExternal/api/ReclaimAction/Action"

In opt-out mode, the Software Reclaimer does not require elevated rights and it is advisable to run it at a time when users are most likely at their computers so that they can respond to prompts. The parameters you need to set in Configuration Manager when you run it in opt-out mode are:

AppClarity.SoftwareReclaimer.exe -mode OPTOUT -service "<serverURL>/CoreExternal/api/ReclaimAction/Action"

Deployments

Each program created (one for opt-out mode and one for mandatory mode) must have its own deployment. Additionally, if you created more than one collection, you must create an advertisement for each collection. The parameters for the deployments are:

Testing

Refer to Testing Software Reclaimer above.

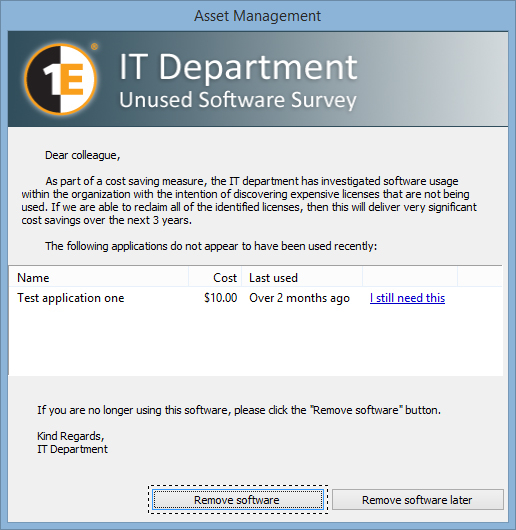

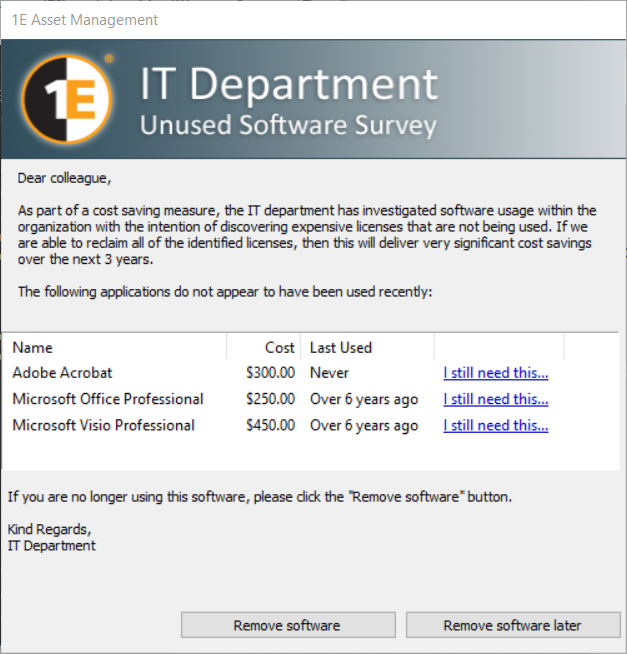

This dialog is displayed when the Software Reclaimer is run in opt-out mode and only if there is at least one application that is a candidate for un-installation. If there is more than one candidate for removal, it will show up to three items as prioritized by the AppClarity server.

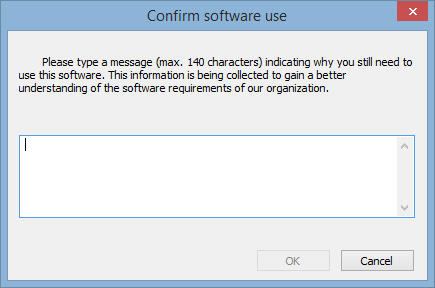

If the end-user selects a I still need this… link, a second dialog is displayed prompting them to justify their need for the corresponding application.

To close the main opt-out dialog, the end-user must select either Remove software or Remove software later.

The Software Reclaimer closes automatically after 120 minutes if the end-user does not interact with the dialog.

When a policy for an application is converted from optional to mandatory, then the application will be handled the same as any other application that has a mandatory policy. The mandatory policies for the machine are prioritized by the AppClarity server, and the next time the Software Reclaimer runs in mandatory mode, the application with the highest mandatory policy will be uninstalled. The Software Reclaimer uninstalls only one application each time it runs.

Reclaim overrides

When a user chooses to opt out of a reclaim, their reason is displayed in Reclaim override management under the Policy tab. Administrators then have an option whether to accept or reject the end-user's reason. The end-user is not informed of the administrator's decision.

Administrator actions

• If an administrator accepts the reason, the application policy for the end-user's machine is de-activated (is neither an optional nor mandatory policy) and the application starts again with the normal usage assessment that may cause re-activation at a later date

• If an administrator rejects the reason, the policy for the application is converted from optional to mandatory.

User actions

• If the user selects Remove software, then all applications in the list will be scheduled for un-installation. The actual un-installation is reassessed on the next mandatory-mode software reclaim run and prioritized along any other candidates for mandatory uninstall.

• If the user selects Remove software later, they defer the decision of whether to uninstall the applications. The opt-out dialog is not displayed on that machine for the next seven days even if the Software Reclaimer is run in opt-out mode on that machine within the seven-day window.

• When a user defers the decision for the first time, they must choose I still need this… within the next 21 days or it will be scheduled for uninstallation and not be displayed in the opt-out dialog again.

When a policy for an application is converted from optional to mandatory, then the application will be handled the same as any other application that has a mandatory policy. The mandatory policies for the machine are prioritized by the AppClarity server, and the next time the Software Reclaimer runs in mandatory mode, the application with the highest mandatory policy will be uninstalled. The Software Reclaimer uninstalls only one application each time it runs.

The Software Reclaimer has the following settings in the SLA databases, which directly relate to the behaviour of the Reclaimer. There are other settings in the same database tables which relate to usage policies and other behavior of the system, some are described in .

SELECT * for [SLA-Shared]SELECT * FROM [SLA-Data].dbo.InstanceSetting AS ISG
JOIN [SLA-Data].dbo.InstalledProject AS IP ON IP.ProjectID=ISG.ProjectID
JOIN [SLA-Data].dbo.Instance AS I ON I.InstanceID=ISG.InstanceID
WHERE IP.Title='Compliance' AND I.IsArchived=0

Either or both of these dialogs can be customized:

• For the main (Asset Management) dialog, all text plus the header logo can be customized.

• For the confirmation (Confirm software use dialog), all text can be customized.

Dialogs are customized by using one or more locale specific XML files to override any or all parts of the two dialogs. Locales and XML search order, are discussed in more detail below under Per-locale customization.

Although you can have multiple XML files for different languages, you cannot use multiple files to independently configure either dialog. The first XML file which is considered applicable will always be used, to the exclusion of any other files.

The XML files

• must be included in the same folder as the Reclaimer executable.

• can have any name but we recommend a convention such as AppClarity.SoftwareReclaimer(locale).xml

Customizing the logo in the main dialog

The built-in header logo used in the main dialog can be replaced using an image file called logo.png which must exist in the same folder as the Reclaimer executable.

For best results, this image should be 500x90 pixels.

There can be only one logo file, because the filename is hard-coded in the software reclaimer, and is not referenced in any XML files.

Sample XML customization file

A sample XML file is shown below, which includes all the element names for text strings that are configurable. Any element included in an XML file will override the default built-in both dialogs for all target locales. If the element is missing then the built-in default text will be used, as decribed below under Partial customization.

The use of the CDATA sections ensures that text containing special XML characters, such as <, > and &, does not need to be specially escaped.

Copy

<?xml version="1.0" encoding="utf-8"?>
<configuration>
  <dialogResourceStrings>
    <mainDialog>
      <title>Asset Management(No LANGUAGE)</title>
      <instructions><![CDATA[
        Dear colleague,
        As part of a cost saving measure, the R&D department has investigated software usage
        within the organization with the intention of discovering expensive licenses that are
        not being used. If we are able to reclaim all of the identified licenses, then this will
        deliver very significant cost savings over the next 3 years.

        The following applications do not appear to have been used recently:
      ]]></instructions>
      <footnote><![CDATA[
        If you are no longer using this software, please click the <Remove software> button.

        Kind Regards,
        IT Department
      ]]></footnote>
      <button1><![CDATA[Remove software]]></button1>
      <button2><![CDATA[Remove software later]]></button2>
      <header1><![CDATA[Name]]></header1>
      <header2><![CDATA[Cost]]></header2>
      <header3><![CDATA[Last used]]></header3>
      <unknown><![CDATA[Unknown]]></unknown>
      <overOneYearAgo><![CDATA[Over a year ago]]></overOneYearAgo>
      <overNYearsAgo><![CDATA[Over %d years ago]]></overNYearsAgo>
      <overOneMonthAgo><![CDATA[Over a month ago]]></overOneMonthAgo>
      <overNMonthsAgo><![CDATA[Over %d months ago]]></overNMonthsAgo>
      <overOneWeekAgo><![CDATA[Over a week ago]]></overOneWeekAgo>
      <overNWeeksAgo><![CDATA[Over %d weeks ago]]></overNWeeksAgo>
      <yesterday><![CDATA[Yesterday]]></yesterday>
      <overNDaysAgo><![CDATA[Over %d days ago]]></overNDaysAgo>
      <today><![CDATA[Today]]></today>
      <stillNeeded><![CDATA[I still need this]]></stillNeeded>
    </mainDialog>

    <confDialog>
      <title><![CDATA[Confirm software use]]></title>
      <instructions><![CDATA[
        Please type a message (max. 140 characters) indicating why you still need to use
        this software. This information is being collected to gain a better understanding
        of the software requirements of our organization.
      ]]></instructions>
      <button1><![CDATA[OK]]></button1>
      <button2><![CDATA[Cancel]]></button2>
    </confDialog>
  </dialogResourceStrings>

  <appSettings>
    <appClarityReclaimerServiceUrl>
      http://SCCM.QA.LOCAL:8080/CoreExternal/api/ReclaimAction/Action/
    </appClarityReclaimerServiceUrl>
    <activeEfficiencyUrl>http://%AESERVERNAME%/ActiveEfficiency</activeEfficiencyUrl>
    <publicKey></publicKey>
  </appSettings>
</configuration>

AppSettings

The <appSettings> section of the XML file can be ignored or removed if you are using the -service parameter on the Software Reclaimer command-line.

If you are not using the -service parameter, then you must ensure that all XML files contain the correct value for appClarityReclaimerServiceUrl.

The <activeEfficiencyUrl> section is not used, and can be deleted.

The <publicKey> section is used to support the optional SSL pinning feature. Contact 1E for more details about this feature.

Partial customization

For a partial customization, exclude elements from the XML file. This will cause the hard-coded default values embedded in the Reclaimer executable to be used. For example, if you exclude the element in the <mainDialog> section, the Remove software button will take the default value. However, any other elements which override hard-coded defaults would still take effect.

<button1><![CDATA[Remove software]]></button1>

If the element corresponding to the entire dialog is omitted, then that dialog reverts to its hard-coded defaults. For example, omitting the <confDialog> element and its children will result in the main dialog being customized and the confirmation dialog reverting to its hard-coded defaults.

Per-locale customization

Locales are specified by two attributes, using the Microsoft locale name format:

• The first attribute is the language associated with the locale, for example, de for German.

• The second attribute is the geographical region associated with the locale, for example, at for Austria.

In this example de-at represents German (Austria). Another example is en-us which represents English (United States).

You can specify either the first attribute, or both attributes, when creating a customization XML file. The example XML file below specifies both attributes: <configuration xml:lang="de-at">. A customization file that specifies only the first attribute, for example de, would specify the language attribute as such: <configuration xml:lang="de">.

When the Software Reclaimer runs, it reads the Windows user locale and uses the following search order to select the first applicable customization XML file:

• Region: The first XML file found whose language attribute exactly matches the full locale e.g. <configuration xml:lang="de-at">.

• Language: The first XML file found whose language attribute matches the language of the locale e.g. <configuration xml:lang="de">.

• Global default: The first XML file found that does not specify a language attribute i.e. <configuration> .

• Built-in default: Otherwise use the internal hard-coded default text.

The selection is then used for both dialogs. Although you can have multiple XML files for different regions and languages, you cannot use multiple files to independently configure either dialog. The first XML file which is considered applicable will always be used, to the exclusion of any other files. If the selected XML file has Partial customization, the built-in default text will be used for the omitted elements.

The example XML below is a full customization of the text in both dialogs for the locale de-at.

Example XML of full customization

Copy

<?xml version="1.0" encoding="utf-8"?>
<configuration xml:lang="de-at">
  <dialogResourceStrings>
    <mainDialog>
      <title><![CDATA[Vermögensverwaltung(de-at)]]></title>
      <instructions><![CDATA[
        Lieber Kollege,

        Im Rahmen eines Kostensenkungsmaßnahme, die IT-Abteilung hat die Softwarenutzung
        innerhalb der Organisation mit dem Ziel, die Entdeckung teure Lizenzen, die nicht
        verwendet werden untersucht. Wenn wir in der Lage, alle identifizierten Lizenzen
        zurückfordern, dann wird dies sehr deutliche Kosteneinsparungen über die nächsten
        3 Jahre zu liefern.

        Die folgenden Anwendungen werden nicht angezeigt, bis vor kurzem verwendet haben:
      ]]></instructions>
      <footnote><![CDATA[
        Wenn Sie keine Folge mit dieser Software sind, bitte klicken Sie auf die
        <Entfernen-Software> -Taste.

        Kind Regards,
        IT Department
      ]]></footnote>
      <button1><![CDATA[Entfernen Sie die software]]></button1>
      <button2><![CDATA[Entfernen Sie die Software später]]></button2>
      <header1><![CDATA[Namen]]></header1>
      <header2><![CDATA[Kosten]]></header2>
      <header3><![CDATA[Zuletzt vervendet]]></header3>
      <unknown><![CDATA[Unbekant]]></unknown>
      <overOneYearAgo><![CDATA[vor mehr als ein Jahr]]></overOneYearAgo>
      <overNYearsAgo><![CDATA[vor mehr als %d Jahre]]></overNYearsAgo>
      <overOneMonthAgo><![CDATA[vor mehr als 1 Monat]]></overOneMonthAgo>
      <overNMonthsAgo><![CDATA[Vor über %d Monaten]]></overNMonthsAgo>
      <overOneWeekAgo><![CDATA[mehr als vor einer Woche]]></overOneWeekAgo>
      <overNWeeksAgo><![CDATA[mehr als %d Wochen]]></overNWeeksAgo>
      <yesterday><![CDATA[gestern]]></yesterday>
      <overNDaysAgo><![CDATA[Vor über %d Tage]]></overNDaysAgo>
      <today><![CDATA[heute]]></today>
      <stillNeeded><![CDATA[Ich muss noch diese]]></stillNeeded>
    </mainDialog>

    <confDialog>
      <title><![CDATA[Bestätigen Sie Software verwenden]]></title>
      <instructions><![CDATA[
        Bitte geben Sie eine Nachricht (max. 140 Zeichen), das anzeigt, warum Sie
        noch brauchen, um diese Software zu nutzen. Diese Informationen werden gesammelt,
        um ein besseres Verständnis für die Software-Anforderungen unserer Organisation
        zu gewinnen.
      ]]></instructions>
      <button1><![CDATA[OK]]></button1>
      <button2><![CDATA[Stornieren]]></button2>
    </confDialog>
  </dialogResourceStrings>

  <appSettings>
    <appClarityReclaimerServiceUrl>
      http://%ACSERVERNAME%:8335/appclarity/services/softwareReclaimer/
    </appClarityReclaimerServiceUrl>
    <activeEfficiencyUrl>http://%AESERVERNAME%/ActiveEfficiency</activeEfficiencyUrl>
  </appSettings>
</configuration>

Demo mode allows you to run the Software Reclaimer dialogs without the need for a server or policies, so that you can:

• Simply demonstrate what it looks like out of the box.

• Validate customizations, including logo, text and locale, as described Customizing the dialogs

If not using demo mode, you would need all the following in order to demonstrate or test the Reclaimer optout dialog.

• Full SLA Platform infrastructure installed and working, with a Configuration Manager connector.

• Applications installed on your test machine.

• Optional policies configured that match your test machine.

The following is a way that you can run the Reclaimer as many times as you want using optout mode without requiring policies or affecting anything already configured.

• Copy AppClarity.SoftwareReclaimer.Demo.xml

  Copy

  <?xml version="1.0" encoding="utf-8"?>
  <OptionalUninstalls>
    <!--
      name is required
      cost is optional
      if lastUsedDate is given, it must be of the form "YYYY-MM-DDTHH:MM:SSZ" (example: 2011-03-10T10:53:12Z)
      if lastUsedDate is not given, the application will be shown as "never" used
    -->
    <OptionalUninstall name="Adobe Acrobat" cost="$300" />
    <OptionalUninstall name="Microsoft Office Professional" cost="$250" lastUsedDate="2011-03-10T10:53:12Z" />
    <OptionalUninstall name="Microsoft Visio Professional" cost="$450" lastUsedDate="2011-03-10T10:53:12Z" />
  </OptionalUninstalls>

  • Make modifications to the OptionalUninstall applications.

  • You can specify from 1 up to 3 applications.

• Copy the following into a test folder on your computer

  • AppClarity.SoftwareReclaimer.exe.

  • Your copy of AppClarity.SoftwareReclaimer.Demo.xml.

  • Any custom XML files and logo.png that you wish to test.

• From a command prompt run the following:

  Copy

  AppClarity.SoftwareReclaimer.exe -mode OPTOUT -nowait

• The dialog is displayed showing the optional uninstall applications, with a new logo and customized dialog text from other custom XML files

• Click on I still need this... to show the second dialog with its text customization.

• To close the window select one of the buttons.

  • in demo mode these buttons do not send opt-out responses back to the server.

• You can then make further changes to your custom XML files, and repeat testing until you are happy with the customizations.

• When done, copy the custom XML files to your deployment package for deployment testing (do not include the Demo XML file).

AppClarity.SoftwareReclaimer.Demo.xml:

<?xml version="1.0" encoding="utf-8"?>
<OptionalUninstalls>
    <!--
        name is required
        cost is optional
        if lastUsedDate is given, it must be of the form "YYYY-MM-DDTHH:MM:SSZ"
        (example: 2011-03-10T10:53:12Z)
        if lastUsedDate is not given, the application will be shown as "never" used
    -->
    <OptionalUninstall name="Adobe Acrobat" cost="$300" />
    <OptionalUninstall name="Microsoft Office Professional" cost="$250" lastUsedDate="2011-03-10T10:53:12Z" />
    <OptionalUninstall name="Microsoft Visio Professional" cost="$450" lastUsedDate="2011-03-10T10:53:12Z" />
</OptionalUninstalls>

Certificate limitations - signing certificates missing

On Windows computers, the installation MSI files, and binary executable and DLL files of 1E software are digitally signed. The 1E code signing certificate uses a timestamping certificate as its countersignature. 1E occasionally changes its code signing certificate, and uses it for new releases and patches for older versions, as shown in the table(s) below.

Root Certificate Authorities are implicitly trusted to validate certificates, and their certificates must be correctly installed to do this. Your computers should already have the necessary root CA certificates installed, however this may have been prevented by your organization's security policies, or inability to connect to the Internet, or they are legacy OS. In general this is not an issue because by default Windows allows software to be installed and run without validation, although you may see a warning or experience a delay. However, you must have relevant CA certificates installed if you are using 1E Client (which self-validates its own files), or your organization has applied more secure polices (for example UAC, AppLocker or SmartScreen).

Typical reasons for issues with signing certificate are:

• If your organization has disabled Automatic Root Certificates Update then you must ensure the relevant root CA certificates are correctly installed on each computer.

• If computers do not have access to the Internet then you must ensure the relevant root and issuing CA certificates are correctly installed on each computer, numbered in the table(s) below.

The signature algorithm of the 1E code signing certificate is SHA256RSA. In most cases, the file digest algorithm of an authenticode signature is SHA256, and the countersignature is a RFC3161 compliant timestamp. The exception is on legacy OS (Windows XP, Vista, Server 2003 and Server 2008) which require the file digest algorithm of an authenticode signature to be SHA1, and a legacy countersignature.

The table below applies to software and hotfixes released in 2020.

Certificate limitations - expired root certificates

Ensure that your Root CA Certificates are up-to-date on clients and servers. The Automatic Root Certificates Update feature is enabled by default, but its configuration may have been changed or restricted by Group Policy Turn off Automatic Root Certificates Update.

If this GPO is enabled, then you will see DisableRootAutoUpdate = 1 (dword) in HKLM\Software\Policies\Microsoft\SystemCertificates\AuthRoot.
