Deploying software in large networks

Scenarios for deploying software in large networks, introducing FanOut and Single-Site Download (SSD).

Our environment is configured to represent two distinct locations (a datacenter and a remote office), with the servers all located in the datacenter and the computers are all located in the remote office. It just so happens that the remote office has two subnets.

In our example, we'll use Single Site Download, which enables a 1E Client to obtain content from a peer in an adjacent subnet (within the same defined location) if that content is not available on a peer in its own local subnet.

We'll then enable FanOut and watch when this feature is enabled to allow multiple 1E Clients to serve content simultaneously within the same subnet instead of relying on a single elected master. In our example computers with a name ending in an odd number are in subnet 10.0.1.0, while those with a name ending in an even number are in subnet 10.0.2.0.

Not only is 1E Content Distribution aware of the file level differences between different versions of a package so that only changed files are downloaded, it is also aware of the differences within individual files. Refer to Download resumption and consistency checking. This is sometimes known as binary differential replication or binary deltas but is more commonly known as remote differential compression (RDC) integration, refer to About Remote Differential Compression.

Using Single-Site downloads to deal with multi-subnet sites

The Single Site Download (SSD) feature ensures a download across the WAN only happens once per site. It does this by maintaining information about which subnets are neighbors of each other (accessible on LAN rather than WAN), so that when an elected master considers a download from a DP rather than a peer in its subnet, it can discover which other local subnets already has the package. These subnets are typically at a single customer site, specifically a single geographical location.

SSD uses Microsoft content distribution. When a client downloads a package, it registers this information with Microsoft content distribution, enabling a profile to be created on which clients hold particular packages.

Before enabling clients to use SSD, you need to ensure the following:

• 1E Platform installed and running successfully

• The Microsoft content distribution database is populated with information about sites and their associated subnets

High-level overview of how to enable SSD

The following information applies to both new and existing installations of 1E Content Distribution:

• Make sure that 1E Platform is installed in your environment and is used as a content location metadata repository.

• Within Microsoft content distribution, populate the SSD sites and subnet information. A sample PowerShell script called PostADSitesandSubnets.ps1 is included in the 1E Content Distribution installation files, which reads sites and subnets from AD

• 1E Content Distribution captures a list of background channels from the 1E Client in the BackgroundChannelUrl and uses the first working URL as the PlatformURL by appending /Proxy/ContentDistribution/ if this PlatformURL is unreachable it attempts to connect to the next BackgroundChannelUrl, for details about BackgroundChannelUrl refer to Content Distribution architecture.

• Enable SSD on all 1E Content Distribution agents, by modifying HKLM\Software\1E\NomadBranch\SSDEnabled to 3, this enables SSD for both "Provide" and "Consume" modes, specifically 1E Content Distribution will provide content to other peers and consume content from other peers.

• If you already have 1E Content Distribution installed and are only now enabling SSD, then ensure HKLM\Software\1E\NomadBranch\Platform\ContentRegistration is set to 1, in other words, downloaded content will be registered with Microsoft content distribution, this is automatically enabled for new installations of 1E Content Distribution and SSD.

If you have clients on networks where broadcasts are disabled (for example wireless) then enable local SSD by setting SSDEnabled=7. Also set ContentProviderOnWifi=1.

Building a subnet profile in Microsoft content distribution

For Microsoft content distribution to build a subnet profile for SSD and the peer backup assistant feature, 1E Content Distribution must communicate with its web service. When the 1E Content Distribution service starts, it connects and registers the hosting device by name with Microsoft content distribution, which returns a device ID in the form of a GUID that enables it to uniquely identify the 1E Content Distribution client and its default subnet. If it is unable to communicate with Microsoft content distribution, it retries every 5 minutes until it succeeds (as long as SSD is enabled). An attempt to communicate with Microsoft content distribution is also made prior to a package download to register its status.

Refer to Enabling SSD in WinPE to make use of 1E Content Distribution SSD in OS Deployment.

The following points should be noted:

• On a multi-NIC host, only one NIC gets registered, and a wired interface takes precedence over a wireless interface during registration.

• If 1E Content Distribution fails initially to register an adapter, it retries every 5 minutes (for as long as SSD is enabled) until it succeeds.

• Wireless adapters can be configured to act as SSD content providers and consumers. Use the ContentProviderOnWifi registry setting to do this.

• If the initial device registration was successful when the 1E Content Distribution service started, but Microsoft content distribution later becomes unavailable, when 1E Content Distribution subsequently downloads and caches a package it will not be able to register the package with Microsoft content distribution (see below for details). 1E Content Distribution does not re-attempt package registration, so Microsoft content distribution will not know that this particular 1E Content Distribution host has the package.

Example PowerShell scripts

You can get information about sites and subnets from AD, or by other means. Example PowerShell scripts can be used for retrieving information about sites and their associated subnets from the AD and updating the Microsoft content distribution database.

• Example Active Directory Single Site script: Sample script that scans the Active Directory (AD) environment for all sites and subnets and stores the information in the Microsoft content distribution locations table.

• Example Single Site script: Sample script that provides two functions to update sites and subnets in the Microsoft content distribution locations table: DeleteAllLocations and AddLocation().

Enabling a 1E Content Distribution package for Single-Site downloads

1E Content Distribution is enabled or disabled for each Configuration Manager package inConfiguration Manager, Software Library workspace, Packages node. In our example we will enable 1E Content Distribution for legacy package and see how 1E Content Distribution takes part in the download process and shares the content.

In this example, we will configure a legacy package to use 1E Content Distribution and then deploy it to our example Workstations Collection. Before deploying our package, we are going to amend the Work Rate for our deployment. The Work Rate determines the percentage of available bandwidth to use for the download.

In this example we have changed this from the default 80% of available bandwidth to 10% to slow down the deployment and so making it easier to monitor.

For more details about the Nomad tab, and how you can use Work Rates, refer to Nomad tab and Setting intra-day work rates.

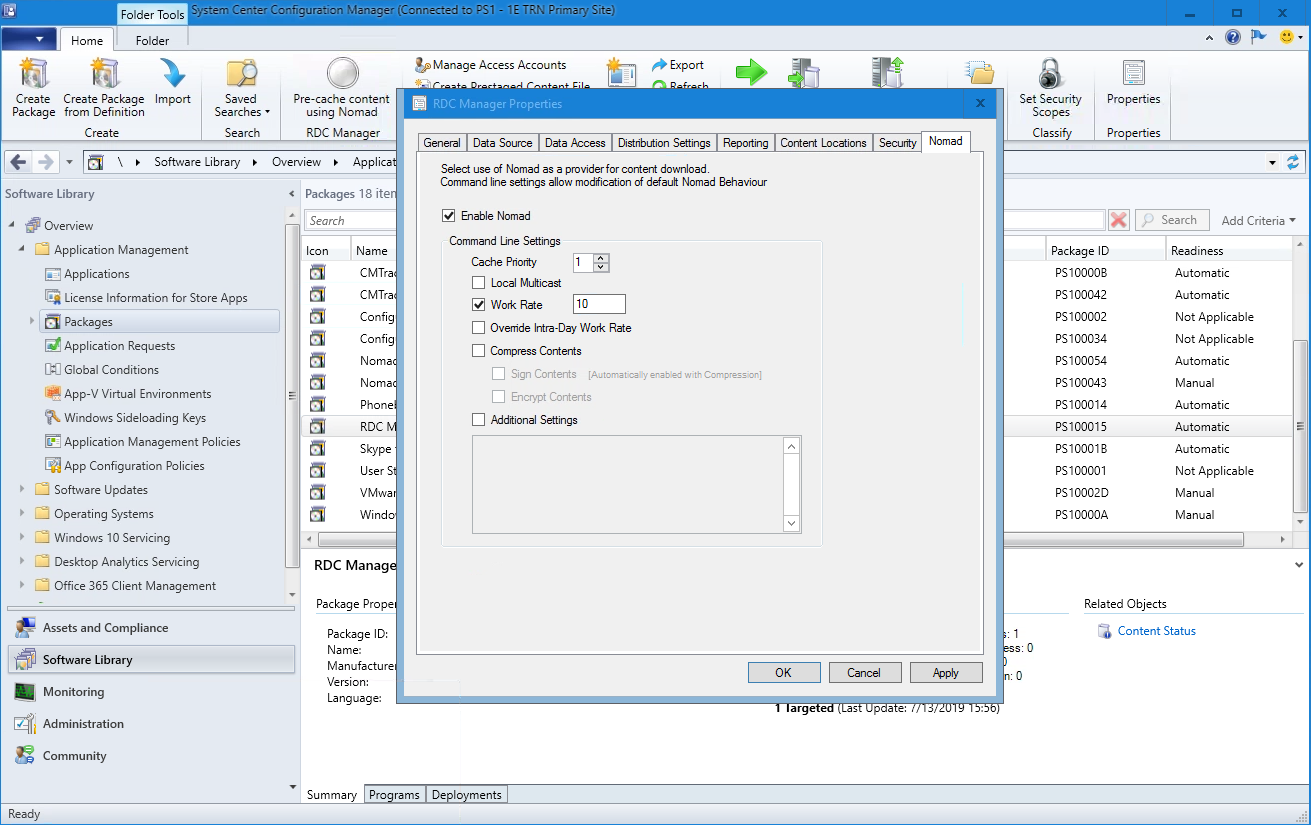

In our example in Configuration Manager:

1. We select the Software Library workspace and choose the Packages node.

2. Then right-click the Remote Desktop Connection Manager (RDCMan) package in the right-hand pane and select the Nomad tab.

3. In the Nomad Properties dialog box, we check:

   1. Enable Nomad

   2. Work Rate (%)and set the value to10.

Once this is done, we force a policy update on the collection containing our workstations called Workstations.

Deploying a legacy package with Nomad

We then deploy the updates to our workstations using the following Deploy Software Wizard page settings:

Deploy Software Wizard Page	Setting
General	Selected the Workstations Collection.
Content	Made sure the content is present on the DP.
Deployment Settings	Set the Purpose to Required.
Scheduling	Created a new assignment schedule to run at the current time.
User Experience	Checked Allow users to run the program independently of assignments.
Distribution Points	Selected both Deployment Options to Download content from distribution point and run locally.

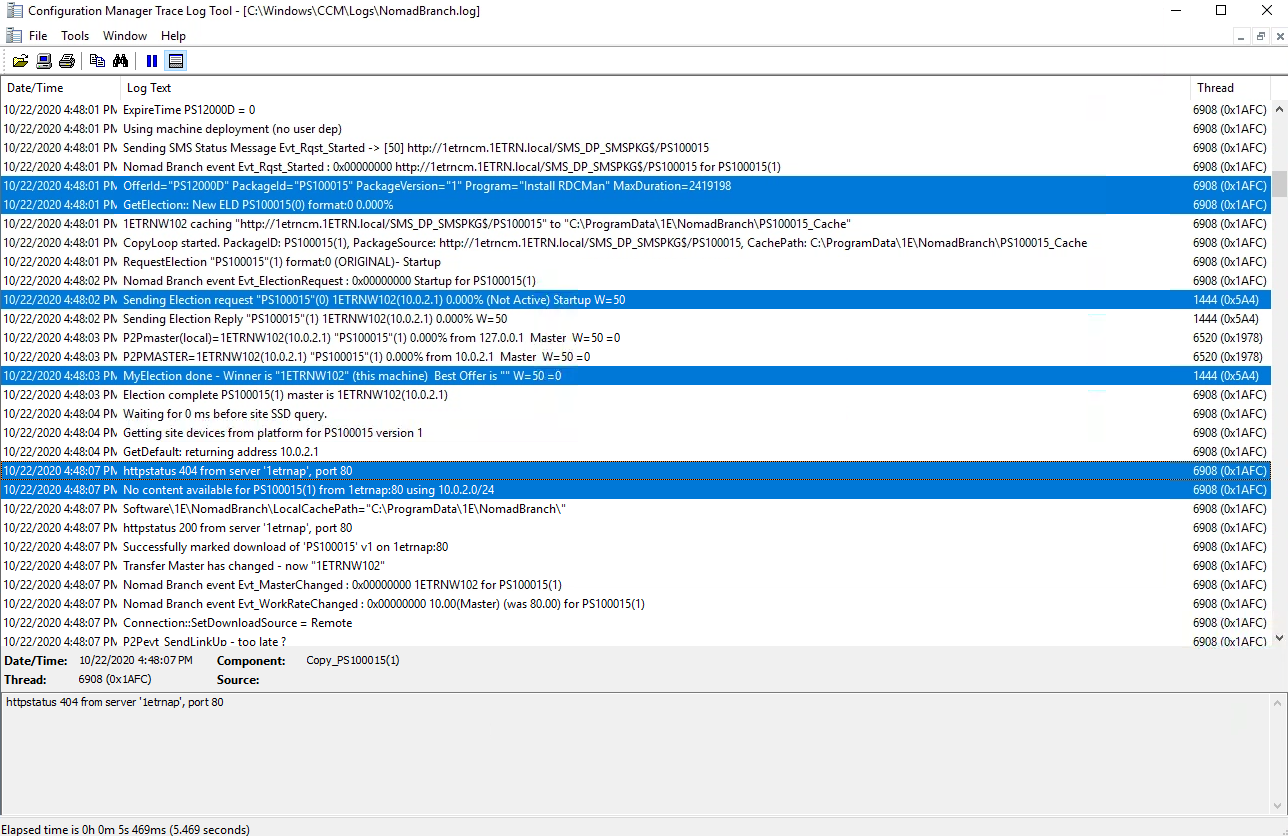

Our elected master is 1ETRNW102 in subnet 10.0.1.0 in the C:\Windows\CCM\Logs\NomadBranch.log we can see the normal election process. This is followed by a request for content for the RDCMan package but there is no content available.

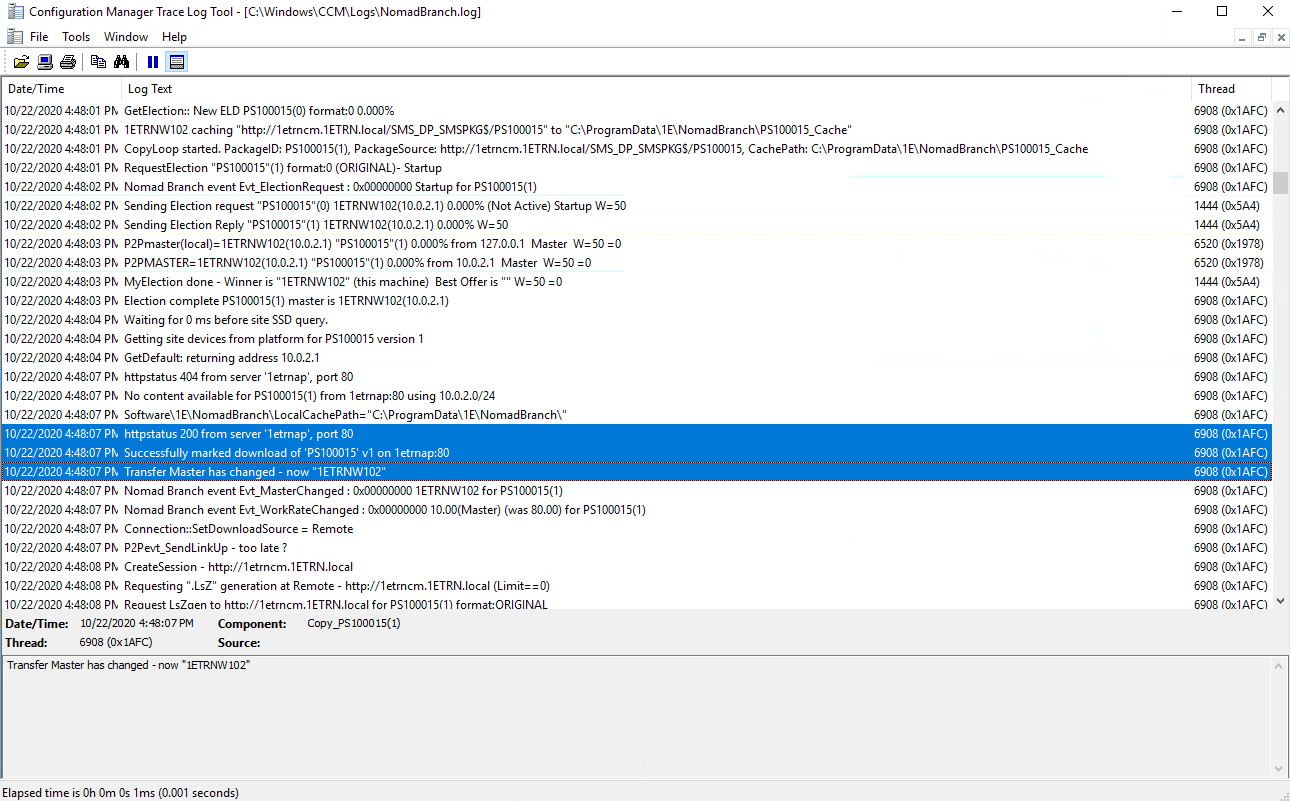

From this point onwards 1ETRNW102 will be returned by the 1E Content Distribution Consumer as a content source for other clients in its subnet within the same location.

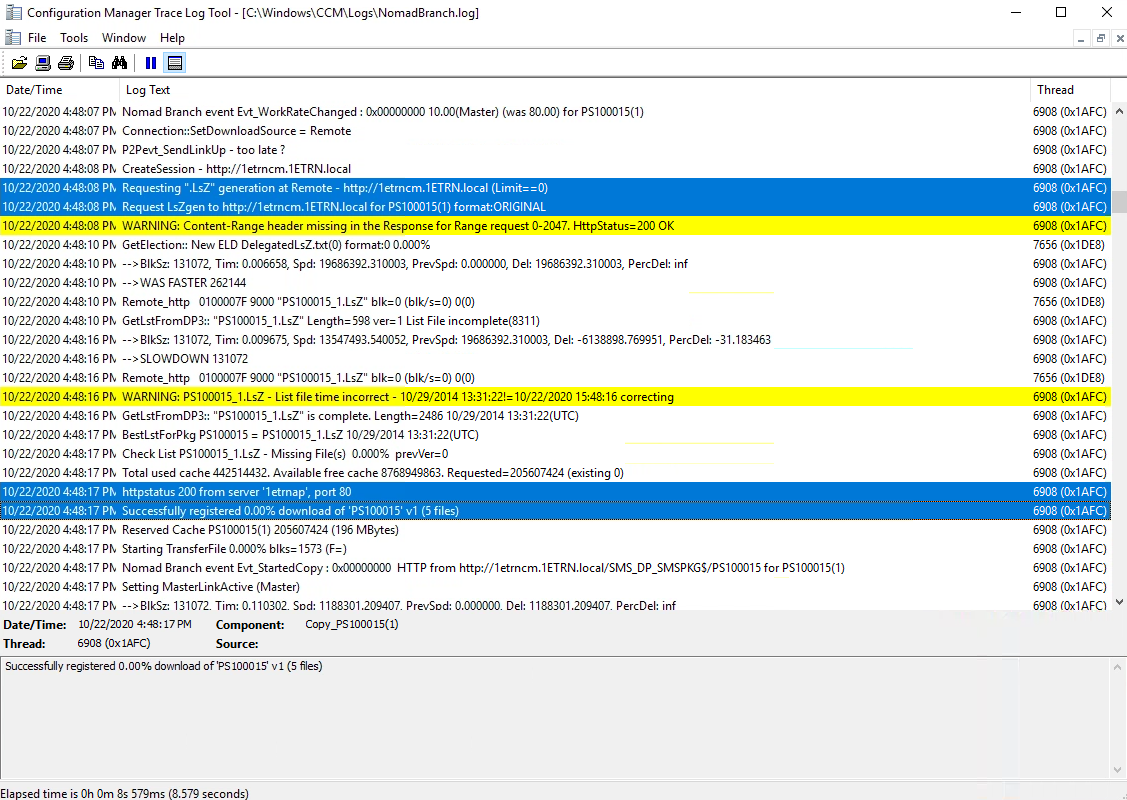

We can see 1ETRNW102 downloading the .LsZ file from the DP and updates the 1E Content Distribution Consumer to indicate the download has started.

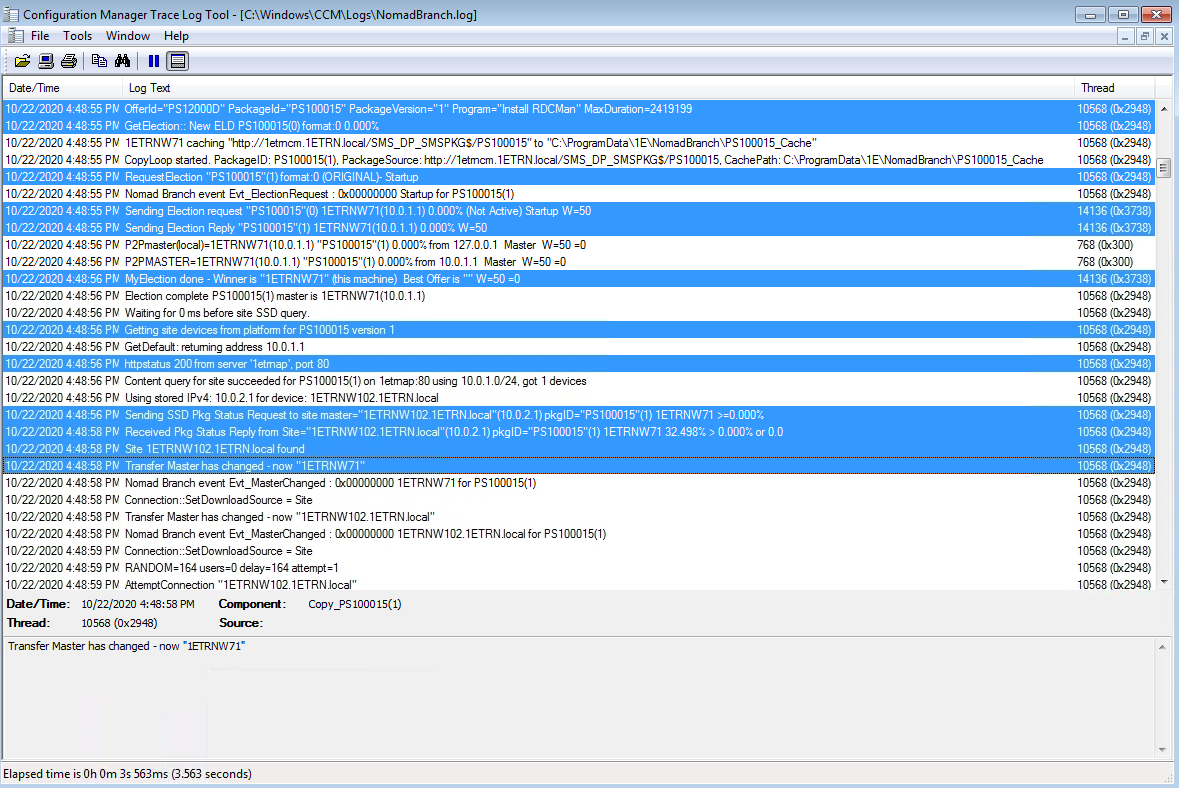

If we now look at the other subnet in our example, 10.0.2.0 and identify the first election request from this subnet which is from 1ETRNW71. In the NomadBranch.log we see the normal activity where 1ETRNW71 is elected as the master.

Following this 1ETRNW71 queries the 1E Content Distribution Consumer to see if the content is available on and adjacent subnet. The query returns 1ETRNW102 as a potential candidate, 1E Content Distribution then sends a Package Status Request to the returned client and selects it.

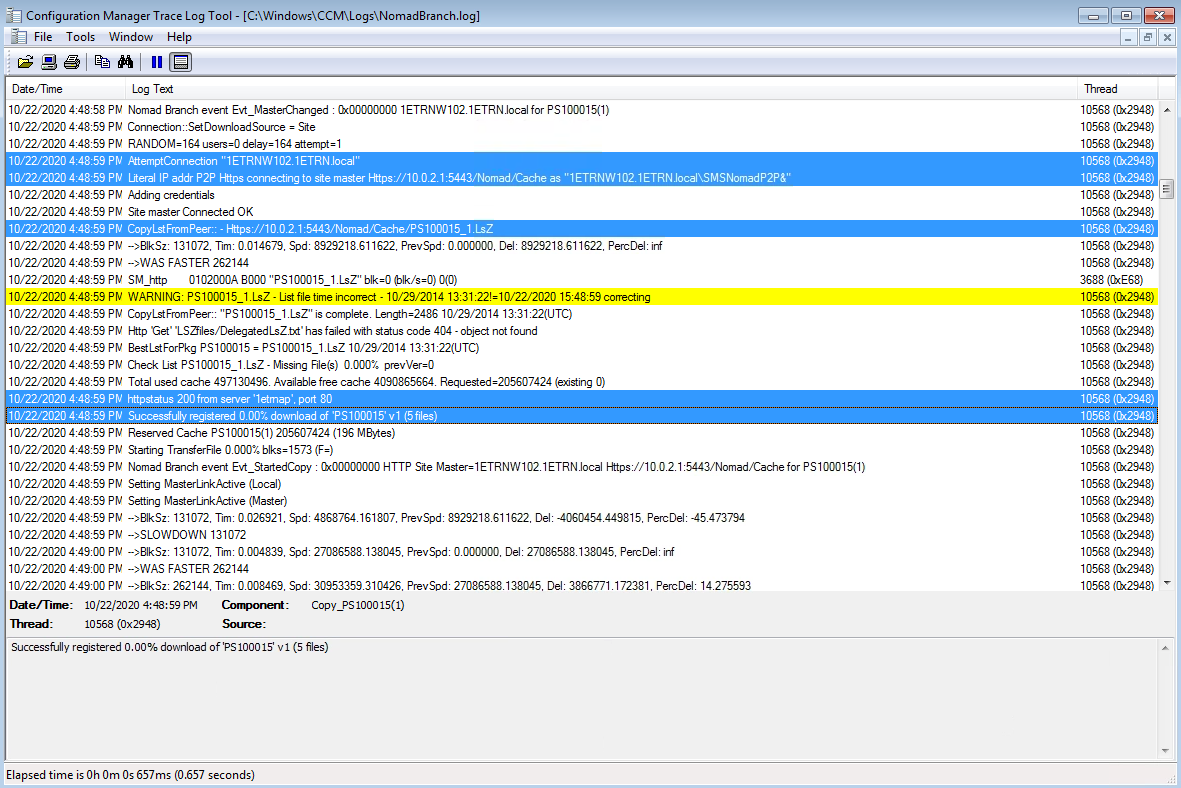

The elected subnet master starts to download content starting with the .LsZ file and the agent registers with the 1E Content Distribution Consumer that it's now started the download. Every client with ContentRegistration enabled will update the 1E Content Distribution Consumer in this way whenever it starts to download content.

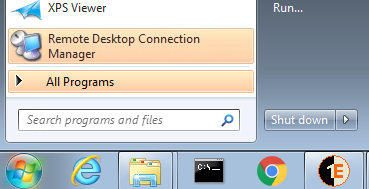

The Remote Desktop Connection Manager (RDCMan) package is then installed on our computers.

We have seen that Single Site Download allows you to deploy content to a large network, for example where you have a datacenter and a remote office and the computers are located in the remote office on two different subnets. Using Single Site Download allowed the 1E Client to obtain content from a peer in an adjacent subnet (within the same defined location) when that content was not available on a peer in its own local subnet.

Using FanOut for large subnets

Windows imposes a limit on the number of concurrent connections on the 1E Content Distribution share. The Nomad FanOut feature compensates for this limitation by enabling any peer that has more content than the requester to respond to the FanOut request. It is not limited to peers that have an active connection to the master.

The 1E Content Distribution cache share NomadSHR$ is created with a connection limit of six, this also applies for HTTP(S) transfers. This means that up to six 1E Content Distribution peers can get content from the master at a time. If a 1E Client tries to connect to the master and all six connections are in use on the master, that agent would back off and retry later. The Fanout feature enables the 'rejected' agent to ask for an alternative peer in the same subnet that has the content it needs. Any other peer on the subnet can respond to this request, but will only do so if it has:

• More content than the agent requesting it

• Available connections and is not already be connected to a Fanout peer

To find out more about how FanOut works refer to Nomad FanOut.

Enabling FanOut

To use FanOut, the Nomad SpecialNetShare registry value must be updated to include bit 6 (0x40 or 64 decimal) on all computers hosting 1E Content Distribution. To do this in our example, we imported a Configuration item and used Configuration Manager Settings Management to update our 1E Clients using a configuration baseline.

In our example, we'll reinstall the RDC Manager package we installed in Using Single-Site downloads to deal with multi-subnet sites using two computers, 1ETRNW71 and 1ETRNW73 in our 10.0.1.0 subnet to prompt 1E Content Distribution to re-download the content when the NomadSHR connection limit (1) is reached on the elected master which should be 1ETRNW101 as it has the content in its cache. For the purpose of this example we have reduced the connection limit to 1 to demonstrate FanOut behavior with a couple of clients. This is not something we recommend you do in a production environment.

On both 1ETRNW71 and 1ETRNW73 we reinstalled RDC Manager using Software Center.

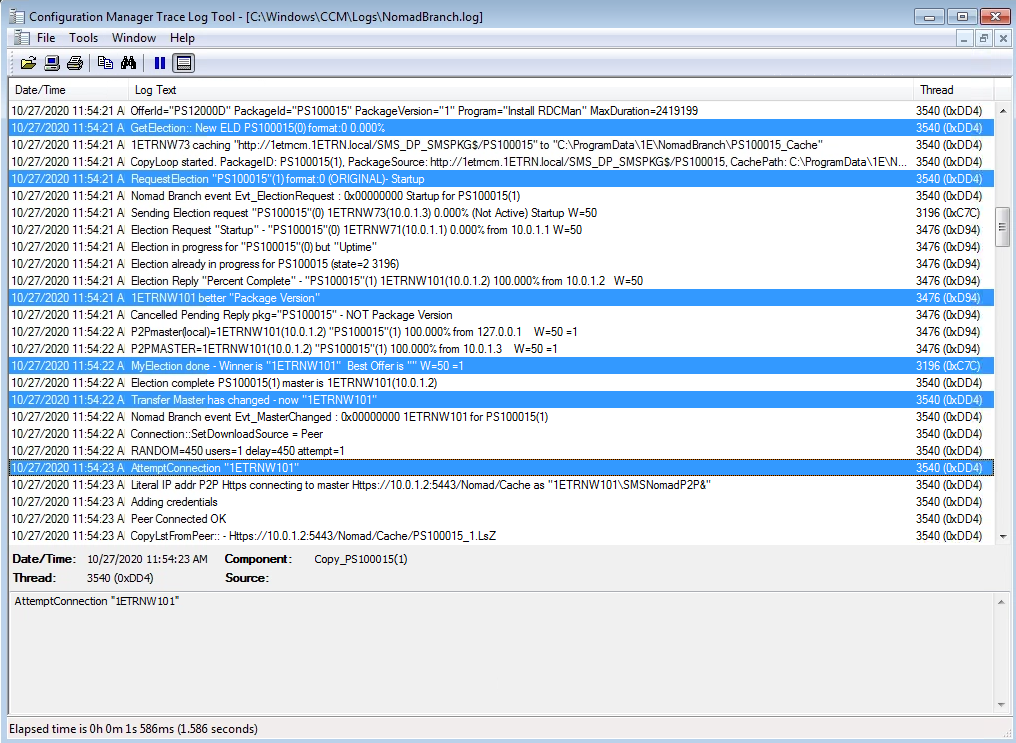

When we open NomadBranch.log on 1ETRNW73 there's an election where 1ETRNW101 wins as it has 100% of the content in its cache.

The elected master does not change for 1ETRNW71, but as there is only one connection available on NomadSHR which is being used by 1ETRNW73, 1ETRNW71 would fail to connect to the master. 1ETRNW71 then polls for a FanOut and receives a reply from 1ETRNW73 and then starts downloading the content from 1ETRNW73.

In this example we saw how FanOut can be enabled to allow multiple peers within a subnet to serve content to others in the situation where there are insufficient connections available on the elected master. This feature will typically enable faster distribution of content in larger subnets compared to the behavior seen in Using Single-Site downloads to deal with multi-subnet sites, where a maximum of six clients (in addition to the master) can be simultaneously obtaining content within the subnet.
