Architectural requirements

The pictures in the following sections show the most common architectural implementations of 1E that are supported by 1E Setup. Organizations with less than 50000 devices will typically have a single-server system with one Switch, but there may be reasons why a more complex configuration would be required. Key factors are the location of servers and how devices and users will connect to them.

Every 1E system has a single Master Stack, which provides web services for 1E applications. Master Stack components are typically all installed on a single Master Server.

1E real-time features require Response Stacks, which are made up of one or more Response Servers. A DMZ Server is an example of a Response Server. Each Response Stack has at least one Background Channel for sharing resources, and a single Core component that supports an associated set of up to five Switches. Switches are the primary mechanism for rapidly requesting and retrieving responses from the clients. As each Switch can handle up to 50,000 devices there is a limit of 250,000 devices per Response Stack. Higher numbers can be achieved if you contact 1E for guidance. Switches may be local or remote to the other components in the Response Stack.

Databases for 1E, 1E Catalog, Content Distribution, Experience Analytics, SLA and BI, are installed on SQL Server database instance(s) that may also be local or remote to their respective Master and Response servers. It is also possible for multiple Response Stacks to share the same Responses database. The Cube used by Patch Success (SLA-BI) is installed on a local or remote SQL Server Analysis Services (SSAS) instance.

The pictures of the single-server and internet-facing configurations each show a system with a single Response Stack. The internet-facing system is special because the components of its Response Stack are split over two servers. Splitting a stack across multiple servers is not usually necessary except in special circumstances, for example the Switch and Background Channel on a DMZ Server is remote from its Core. The DMZ picture shows a dual firewall design, but single firewall is also supported.

The databases for 1E Master and Response Stacks can exist on local or remote installations of SQL Server. Local is the simplest implementation. A local Responses database offers the best performance, whereas a remote Responses database requires an additional network interface and network routing explained in Network requirements. For an explanation of 1E components, refer to 1E components.

1E Server setup has several standard options described above. There is also a custom installation option to support different configurations to those described. SQL Cluster and SQL Always On are supported, but require additional steps, refer to High Availability options for SQL Server.

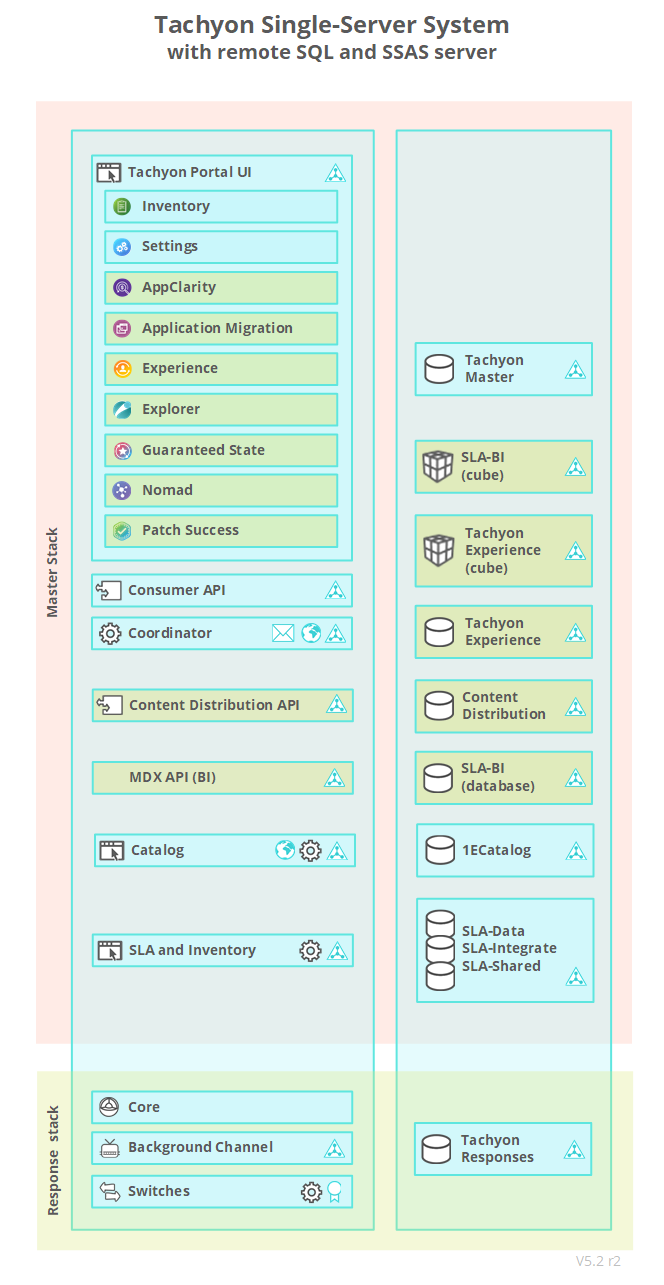

1E Single-Server system

1E Multi-Stack system

1E architecture for Internet-facing devices

1E Business Intelligence

Business Intelligence is an optional component installed by 1E Setup on the Master Stack, and requires SQL Server Analysis Services (SSAS). Business Intelligence is a prerequisite for the Patch Success application to support efficient presentation of visualizations on a large scale.

Applications and tools

1E applications and tools are consumers, and all consumers connect to the 1E Consumer API. The following consumer applications run on 1E Platform and are installed using 1E Server setup, refer to the License requirements page.

Applications are categorized as follows:

• Configuration: Applications required to configure 1E Platform and required by all other applications.

• Client: Applications that communicate with devices in real-time.

• Inventory: Applications that use inventory features.

Applications included in the 1E Platform license:

Applications that require a license:

The following types of application require 1E Client (with 1E Platform features enabled) to be deployed to all in-scope devices.

• All Client applications.

• Inventory applications if you intend using the 1E Platform connector to populate your inventory.

Auto-curation

The AI Powered Auto-curation feature is optionally used by Inventory applications to provide automatic curation of new products. This avoids having to manually add products to the 1E Catalog, or wait for it be updated. This optional feature requires additional memory on the 1E Platform Server (Master Stack), refer to Memory requirements table.

Some benefits of using AI Powered Auto-curation are that you can:

• Achieve significantly more normalized software from the first sync.

• Reduce the manual effort required to normalize software.

• Get an expanded SAM offering as more data is available for AppClarity.

• Get additional coverage for Application Migration.

• Identify more software to review for security threats.

1E tools

The following are tools included in 1E Platform. These tools are not installed using 1E Setup. They have either their own installers or are included in download zips.

• 1E ConfigMgr UI Extensions: Installed as part of the 1E Toolkit, this is a right-click extension for the Configuration Manager console that provides the option to browse and run an instruction on devices in a specified Collection, refer to Preparing ConfigMgr extensions for 1E Endpoint Troubleshooting.

• 1E Run Instruction command-line too: Installed as part of the 1E Toolkit, it is used for sending instructions to the 1E server from a script or from a command prompt.

• 1E product pack deployment tool: Included in the 1E Platform zip.

• TIMS: Used for the development of instructions using the 1E SDK, refer to Writing instructions > Getting started with TIMS > About TIMS in the PDF version of the 1E SDK documentation.

Telemetry helps 1E to continually improve your experience with 1E. Only summarized statistical information is collected, which enables 1E to see how customers use features of the application. No personally identifiable data is collected. 1E use this information to:

• Understand how the product is being used to influence future development decisions.

• Plan supported platforms (OS, SQL etc. versions) over time.

• Deliver a smooth upgrade experience as we can focus testing on implemented scenarios.

• Improve system performance.

• Identify early warning signs of potential issues such as excessive growth of database tables, instruction failures etc. so we can pro-actively address them.

Server telemetry reports how the platform is used and data is compressed, encrypted and sent to 1E through email on a configurable schedule. Full details of the Server telemetry data sent to 1E is provided in Server telemetry data. User Interface telemetry reports how the user interface is used, and data is sent directly from administrator browsers to the 1E Cloud, refer to Whitelisting connections to 1E Cloud

Telemetry features are configurable using 1E Server Setup during installation or upgrade, and can be enabled or disabled as a post-installation task. 1E encourages customers to enable sending telemetry, refer to Enabling or disabling Telemetry features.

There are many possible hardware server configurations, or cloud instance types and storage options, that customers can choose from, but the aim of this document is to recommend prescriptive guidance, and detailed configuration of the best performant implementation that customers, of varying client count sizes, should use to implement 1E. This document focuses heavily on the SQL Server implementation and required storage for 1E, as this is singly the most performance demanding component of the system.

The default 1E configuration assumes, and recommends, a single 1E server and a separate remote SQL Server in a standard two server setup. There are sections for additional and complex implementations for separate Switch and Background Channels servers (DMZ), plus the extreme scenario where multiple 1E servers in a split, Response and Master Stack server configurations could be deployed, depending on the specific requirements for larger customers, for reasons of scale and higher availability.

Assumptions

The key assumption in this document for sizing guidelines is that the customer is using all components of 1E, that is, Endpoint Troubleshooting, Endpoint Automation, Experience Analytics, Patch Insights, Inventory Insights, and Content Distribution. The sizing guidelines are based on extensive testing of all components of the 1E Platform, at different client count scales, using representative test data to simulate typical customer environments and their administrative and reporting usage.

Therefore, the following sizing guidelines should be used as the minimum hardware requirements for the specific numbers of managed clients in the respective size environments:

• In terms of CPUs, the test environment used Intel Xeon E5-2687 v3 @3.1Hz, though any server-level CPU from 2016 should meet the performance needs for the cores specified in the following tables. Additional or newer and faster speed CPUs will improve performance, and the 1E Platform will SQL Server will utilize all the CPU resources available.

• In terms of data sizing, actual customer data and individual requirements will vary greatly. The data sizing is provided only as general guidance and assumes that some amount of storage will remain as free space, most of the time, when not at peak loads.

Performance load modelling

To simulate 100,000s of actual 1E Clients, 1E developed a Load Generation tool (loadgen) that maintains the same number of persistent connections and can respond with the same data responses as would actual real-world clients.

In reality, loadgen generates more data and creates greater data storms at the 1E servers than, offline and latent 1E Client responses would generate, so can be considered as producing a more extreme and worst-case scenario performance loads on the 1E servers.

Assumptions used when creating the sizing guide:

Component	Feature	Assumptions
Endpoint Troubleshooting	Instructions	An average of 1,000 instructions per day (including Synchronous instructions). Peak loads of 10 simultaneous small and some large instructions, targeted at both small and large device sets. Small instructions (<4K) can be received and processed from all online clients in less than 15 seconds.
Endpoint Automation	Policies	Around 20 deployed policies totaling 300 active rules and remediations. An average of up to 100 rule state changes per device per day.
Experience Analytics	Events and metrics	Each device reports an average of 300 Device and Software Performance, User Interactions and Windows events per day. The Experience Dashboards and UI drill-down queries should be able to display and filter required data views, within a few minutes.
Inventory Insights (also known as SLA)	Hardware and software inventory	At least two connectors are configured (for example SCCM or BigFix) in addition to the 1E Platform connector. An average of 200 software installations and 100 patches per device and up to 50,000 distinct software products, per 50k devices. Up to 50 distinct Management Groups per 50,000 Devices.
Patch Insights	Patch data	Clients process a maximum of 20 patch state changes per month for Windows and other related Microsoft Updates.
Content Distribution	Downloads	For every 50,000 clients there are 100 sites containing around 2,500 distinct subnets. At peak loads (that is, during a critical patch deployment) there could be up to 20,000 content download requests (and their responses) per minute handled by the platform and content registrations.

An overall assumption is that long duration and high impact batch processing operations, such as SLA inventory sync consolidations and Experience Analytics sync processing, are run primarily out of business hours (typically overnight) when there would be little potential impact on other 1E traffic and administrative interactive query and analytical reporting.

Using AI Powered Auto Curation with SLA Inventory Sync

Additional RAM is required if this feature is enabled, based on the total number of distinct software titles found in a specific customer environment, refer to AI Powered Auto-curation, which explains how to calculate the memory requirements. You must then add this to the figures in the following sizing tables.

On-premises installation

The 1E Platform is recommended to be installed on a dedicated server, with a separate dedicated SQL Server, and can be installed on either virtual server or physical hardware.

For every 50,000 clients, 1E requires a separate instance of the 1E Switch component, which requires a dedicated Network Interface (NIC) for each switch instance. In a virtualized environment, this should a dedicated vNIC that preferably maps to a dedicated physical NIC, on the host.

1E is a high-intensity database application and so requires a highly performant Microsoft SQL Server setup, with fast storage, and this is the most important component to size correctly. Storage could be presented locally, but it is expected that the more likely scenario is that this is presented from a customer Enterprise Storage Area Network (SAN), or cloud-based managed storage.

As per Microsoft SQL Server best practice, 1E recommends to provision at least three separate disk volumes for SQL Data, Logs, and TempDB. These volumes may be made up from multiple dedicated disks, striped in a RAID Volume for both resilience and performance, for example RAID 10, depending on the standard operational configuration of the customer’s on-premises storage sub-systems.

Data and log drives disk volumes should be formatted to use 64 KB allocation unit size. It is assumed the customer is using fast SSD based storage to achieve the necessary disk throughput in MB/s and IOPS, at least 6Gb/s SATA, but preferably 12Gb/s SAS or NVMe drives at higher scale.

Microsoft SQL Server should be configured according to the Microsoft best practice documentation. The default installation of SQL Server 2017 or later, will make automatic configuration settings for memory, TempDB, and processing parallelism. However, the best single index to overall Microsoft recommendations for SQL Server can be found at Performance Center for SQL Server Database Engine and Azure SQL Database.

Cloud based SQL Database deployment templates, may configure most, but not all, memory optimizations automatically, but some of the key recommendations to note, are as follows.

• Server memory configuration options, refer to Server memory configuration options.

• Configure the max degree of parallelism Server Configuration Option, refer to Server configuration: max degree of parallelism.

• optimize for ad hoc workloads server configuration option, refer to optimize for ad hoc workloads (server configuration option)

In addition, it is essential that a Backup and Maintenance strategy of SQL server must be defined, and backup and maintenance jobs configured accordingly. These must be run during low peak hours or when server is not in use (such as over-night or weekends) and should include the following.

• At least weekly full backups and then daily differentials, as required.

• Daily Update statistics job and weekly Rebuild index followed by DBCC Checkdb.

Small server sizing (<10K clients, on-premises and cloud)

For small systems with less than 10,000 seat counts and Proof-of-Concept installations, it is allowable for simplicity for all the 1E server components and SQL Server to be installed onto a single server - though it should be noted that this may mean higher SQL per core licensing costs than a split two server installation. In a single server, as per Microsoft SQL Server best practice, it is still recommended to have a minimum of 3 separate disks (OS Drive, SQL DB and Logs, and TempDB) to gain optimum disk performance.

VM and storage sizing for both on-premises and cloud platforms:

Platform	On-Premises	Microsoft Azure	Amazon AWS
Devices	Up to 10,000	Up to 10,000	Up to 10,000
Server Type	Physical or Virtual	Standard E4ds v4	R5.xlarge
CPU Cores	4	4	4
RAM	32 GB	32 GB	32 GB
1E Switches	1	1	1
NICs	1	1	1
Disks
OS Drive disk size	64 GB	64 GB	64 GB
DB and Logs disk size	500 GB	500 GB	500 GB
MBs/IOPS	250/15,000	170/3,500	250/16,000
TempDB disk size	150 GB	150 GB	180 GB
MBs/IOPS	250/15,000	242/38,500	250/16,000

Medium and large on-premises design patterns

On-premises VM and storage sizing for different customer sizes:

	Medium 1	Medium 2	Large 1	Large 2	Large 3
Devices	25,000	50,000	100,000	200,000	500,000
1E server
CPU Cores	4	8	16	32	63
RAM	16 GB	32 GB	64 GB	128 GB	256 GB
1E Switches	1	1	2	4	10
NICs	2	2	3	5	11
Remote SQL Server
CPU Cores	4	8	16	24	64
RAM	32 GB	64 GB	128 GB	256 GB	512 GB
Disks
DB Size	500 GB	1,000 GB	2,000 GB	4,000 GB	8,000 GB
MBs/IOPS	250/15,000	500/30,000	1,000/60,000	2,000/120,000	4,000/240,000
Logs Size	100 GB	200 GB	500 GB	1,000 GB	2,000 GB
MBs/IOPS	170/10,000	250/15,000	500/30,000	1,000/60,000	2,000/120,000
TempDB Size	150 GB	300 GB	600 GB	1,200 GB	2,000 GB
MBs/IOPS	250/15,000	500/30,000	1,000/60,000	2,000/120,000	4,000/240,000

Network considerations

A server hosting a 1E Response Stack requires a dedicated network interface for each Switch, and for the connection to the remote SQL Server, to keep incoming traffic from clients separate from the outgoing traffic to the Response and other 1E SQL databases. It is expected that this Server-to-Server network traffic, would be over a Data Center backbone network of 10Gb or more.

Accelerated Networking which provides enhanced NIC performance, using Receive Side Scaling (RSS) should be enabled on all NICs, refer to Introduction to Receive Side Scaling. It is better performant to increase the transmit (TX) and receive (RX) buffer sizes to their maximum under the Windows network adaptor advanced properties.

Microsoft Azure

Azure out of scope

This document only focuses on implementing 1E components and SQL Server on individual Azure VMs, and configurations using Azure Premium storage.It doesn't consider using Microsoft SQL as part of Azure Platform as a Service (PAAS) offerings, either SQL Server Managed Instances or Native Azure SQL (What is Azure SQL?) as these solutions are not currently supported by 1E as a means to implement SQL Server for 1E.

In addition, it does not consider using Azure instances that do not rely on Azure premium storage, but have local NVMe drives, like the Lsv2-series. Although these instance types have very high performing storage and data transfer bandwidth, the NVMe disks are ephemeral or non-persistent, so only practical for single SQL Server instance for TempDB.

In the future, 1E plan to provide guidance in using non-persistent storage solutions or SQL Business Critical Managed Instances, as part of a SQL Server Always on Availability Group cluster, that would provide storage resilience and redundancy as described in What is an Always On availability group?. However, since these solutions require a cluster of minimum 3 nodes, it should be noted that these solutions would be much more expensive to implement than individual VMs.

Azure VM selection

This document should be read in conjunction with the Azure documentation, especially with the guidance on Maximizing Microsoft SQL Server Performance with on Azure VMs Checklist: Best practices for SQL Server on Azure VMs. Azure Premium storage recommendations for SQL Server workloads are also detailed more completely in Azure premium storage: Design for high performance. Based on these factors, 1E recommend using Azure Dsv4 VMs for the 1E server and Edsv4-series VMs for SQL Server, to achieve the optimum ratio of vCPU and memory count for the separate requirements.

Dsv4 and Edsv4-series sizes run on the Intel® Xeon® Platinum 8000 series (Cascade Lake) processors. In addition, the Edsv4 virtual machine sizes feature up to 504 GiB of RAM, in addition to fast and large local SSD storage (up to 2,400 GiB). These virtual machines are ideal for memory-intensive enterprise applications and applications that benefit from low latency, high-speed local storage in the following specifications.

Azure Dsv4 VMs for the 1E server:

Size	vCPU	Memory: GiB	Temp storage (SSD) GiB	Max data disks	Max uncached disk throughput: IOPS/MBps	Max NICs	Expected Network bandwidth (Mbps)
Standard_D2s_v4	2	8	0	4	3200/48	2	1000
Standard_D4s_v4	4	16	0	8	6400/96	2	2000
Standard_D8s_v4	8	32	0	16	12800/192	4	4000
Standard_D16s_v4	16	64	0	32	25600/384	8	8000
Standard_D32s_v4	32	128	0	32	51200/768	8	16000
Standard_D48s_v4	48	192	0	32	76800/1152	8	24000
Standard_D64s_v4	64	256	0	32	80000/1200	8	30000

Azure VM constrained core CPU options

At some VM sizes, it is possible to reduce the CPU count to therefore lower SQL license requirements, whilst maintaining the higher storage throughput of the VM. Selecting constrained core SQL VMs, specifically to get the higher required storage throughput, although with the same VM and OS license pricing, will provide half the actual presented vCPU core count, but therefore minimise SQL Server license costs. Refer to Constrained vCPU sizes for database workloads.

Azure Premium storage selection

For any solution based on Microsoft SQL Server, storage throughput is normally the major bottleneck to performance, and 1E is no exception to this. The maximum storage throughput in terms of MB/s and IOPS for specific Azure EdsV4 VMs is detailed in the table below, and this will determine the maximum equivalent MBs/IOPS for the selected Azure Premium storage volumes. For example, if you attach a two P30 disks volume (200MB/s provisioned throughput each) to an E16ds_v4 VM, you reach the instance limit of 384 MB/s before you reach the volume limit of 400 MB/s total throughput.

Azure EdsV4 VMs for the 1E SQL Server:

VM Size	Temp storage (SSD) GiB	Max data disks	Max cached and temp storage throughput: IOPS/MBs (cache size in GiB)	Max un-cached disk throughput: IOPS/MBs
Standard_E2ds_v4	75	4	19000/120(50)	3200/48
Standard_E4ds_v4	150	8	38500/242(100)	6400/96
Standard_E8ds_v4	300	16	77000/485(200)	12800/192
Standard_E16ds_v4	600	32	154000/968(400)	25600/384
Standard_E20ds_v4	750	32	193000/1211(500)	32000/480
Standard_E32ds_v4	1200	32	308000/1936(800)	51200/768
Standard_E48ds_v4	1800	32	462000/2904(1200)	76800/1152
Standard_E64ds_v4 1	2400	32	615000/3872(1600)	80000/1200

The recommended Azure Premium storage type are Premium SSDs as these deliver the best high-performance and low-latency disk support for virtual machines at the lowest storage cost. Refer to Azure managed disk types.

Another option would be to use Azure Ultra disks, but these are much more expensive and do not benefit from read caching. Though, some additional benefits of Ultra disks include the ability to dynamically change the performance of the disk, without the need to restart the VM. As per Microsoft SQL Server best practice, 1E recommends to provision at least three separate Azure disk volumes for SQL Data, Logs and TempDB. In the Azure Edsv4 virtual machine, it is possible to use the fast and large local SSD storage for TempDB, as this does not need to be persistent and is re-created automatically every time SQL Server starts.

The Data volumes may be made up from multiple Premium disks (in the higher spec Configurations), striped in a Basic Array using Windows Storage Spaces. This configuration allows for the local NVMe SSDs to act as a read-ahead cache for these striped volumes and gain better read performance. Refer to Storage: Performance best practices for SQL Server on Azure VMs.

Increasing Azure SQL Server Performance

The latest Azure Ev5 series VMs provides up to three times an increase in remote storage performance compared with previous generations, refer to Increase remote storage performance with Azure Ebsv5 VMs. For larger scale 1E environments, achieving the best storage throughput provides the best performance for long running data consolidation operations. In addition, the latest Ev5 Series VMs support disk busting which provides the ability to boost disk storage IOPS and MB/s performance, refer to Managed disk bursting.

On-demand disk bursting in Azure is only available for premium disks of 1TB in size or greater (P30), but by enabling this on SQL data disk(s), allows you to achieve the maximum storage throughput available to the VM on high-intensity operations, refer to Enable on-demand bursting.

Azure prescriptive design patterns

Azure VM and storage sizing for different customer sizes:

	Medium 1	Medium 2	Large 1	Large 2	Large 3
Devices	25,000	50,000	100,000	200,000	500,000
1E server
VM type	Std_D4s_v4	Std_D8s_v4	Std_D16s_v4	Std_D32s_v4	Std_D64s_v4
CPU Cores	4	8	16	32	64
RAM	16 GB	32 GB	64 GB	128 GB	256 GB
Tachyon Switches	1	1	2	4	10
NICs	2	2	3	5	11*
Remote SQL Server
VM Type	Std E4ds v4	Std_E8ds v4	Std E16ds v4	Std_E20ds_v4	Std_E64ds_v4
CPU Cores	4	8	16	20	64
RAM	32 GB	64 GB	128 GB	160 GB	504 GB
Max MB/s	96	192	384	480	1,200
Max IOPS	6,400	12,800	25,600	32,000	80,00
DB Size	500 GB	1,000 GB	2,000 GB	4,000 GB	8,000 GB
MBs/IOPS	170/3,500	340/7,000	400/10,000	800/20,000	1,600/40,000
Logs Size	128 GB	256 GB	500 GB	1,000 GB	2,000 GB
MBs/IOPS	170/3,500	170/3,500	170/3,500	200/5,000	250/7,500
TempDB Size	150 GB	300 GB	600 GB	750 GB	2,000 GB
MBs/IOPS	242/38,500	485/77,000	968/154,000	1,211/193,000	3,872/615,000

Azure network considerations

A server hosting a 1E Response Stack requires a dedicated network interface for each of its Switches, and for the connection to the remote SQL Server instance used for the Responses database to keep incoming traffic from clients separate from the outgoing traffic to the Response database.

Accelerated Networking which provides enhanced NIC performance using SR-IOV should be enabled on the SQL VM Network Interface and Platform VM Network Interface that communicates with it. Detailed steps on how to configure this are given here Create an Azure Virtual Machine with Accelerated Networking. Also increase the transmit (TX) and receive (RX) buffer sizes to their maximum under the network adaptor advanced properties.

If connecting to an Azure based 1E Switch via external public Azure IP addresses or Azure Load Balancers you will need to extend the default TCP timeout from 4 minutes to 15 minutes. Detailed steps on how to do this can be found here New: Configurable Idle Timeout for Azure Load Balancer.

Amazon AWS

Amazon AWS out of scope

This document only focuses on AWS elastic cloud (EC2) instances and configurations using AWS Elastic Block Storage (EBS). It does not consider using Microsoft SQL as part of AWS Platform as a Service (PAAS) offerings such as Amazon Relational Database Service as this not currently supported by 1E as a means to implement SQL Server for 1E.

In addition, it does not consider using AWS instances that do not use the EBS platform but have local NVMe based storage such as I3en and R5d instance types. Although these instance Types have very high performing storage and data transfer bandwidth, the NVMe disks are ephemeral or non-persistent, so only practical for SQL Server use for TempDB.

In the future, 1E plan to provide guidance in using non-persistent storage solutions as part of a SQL Server Always on Availability Group cluster, that provides storage resilience and redundancy as described in What is an Always On availability group? However, since these solutions require a cluster of minimum 3 nodes, it should be noted these solutions would be much more expensive to implement.

AWS instance selection

This document should be read in conjunction with the AWS documentation, especially with guidance on Maximizing Microsoft SQL Server Performance with Amazon EBS, refer to Maximizing Microsoft SQL Server Performance with Amazon EBS. In recommending the desired AWS instance type and size 1E, has followed the following guidance:

• Instances are based on the latest AWS Nitro Systems AWS Nitro System.

• Amazon EBS Optimized systems were selected, so that these can have the best possible storage throughput performance in terms of MB/s and IOPS, refer to Amazon EBS-optimized instance types.

Based on these factors 1E recommend using the EC2 M5 instances for the 1E server and R5 instances for the SQL server, to get the optimum ratio of vCPU and memory count. EC2 M5/R5 instances have 3.1 GHz Intel Xeon® Platinum 8000 series processors with new Intel Advanced Vector Extension (AVX-512) instruction set and following specifications.

AWS EC2 M5 instances for the 1E server:

Instance Size	vCPU	Memory (GiB)	Instance Storage(GiB)	Network Bandwidth (Gbps)	EBS Bandwidth (Mbps)
m5.xlarge	4	16	EBS-Only	Up to 10	Up to 4,750
m5.2xlarge	8	32	EBS-Only	Up to 10	Up to 4,750
m5.4xlarge	16	64	EBS-Only	Up to 10	4,750
m5.8xlarge	32	128	EBS Only	10	6,800
m5.12xlarge	48	192	EBS-Only	12	9,500
m5.16xlarge	64	256	EBS Only	20	13,600
m5.24xlarge	96	384	EBS-Only	25	19,000

AWS instance CPU options

Amazon EC2 instances support multi-threading, which enables multiple threads to run concurrently on a single CPU core. By disabling hyper-threading, it is possible to get less vCPUs (and therefore lower SQL license requirements) whilst maintaining the higher storage throughput, refer to CPU options for Amazon EC2 instances.

AWS EBS storage selection

For any solution based on Microsoft SQL Server, storage throughput is normally the major bottleneck to performance, and 1E is no exception to this. The maximum storage throughput in terms of MB/s and IOPS for specific AWS M5 instances is detailed in the table below and this will determine the maximum equivalent IOPS for the selected AWS storage volumes. For example, if you attach a single 20,000-IOPS volume to an r5.4xlarge instance, you reach the instance limit of 18,750 IOPS before you reach the volume limit of 20,000 IOPS.

AWS EC2 R5 instances for the 1E SQL Server:

Instance size	Maximum storage bandwidth (Mbps)	Maximum throughput (MB/s, 128 KiB I/O)	Maximum IOPS (16 KiB I/O)
r5.xlarge	4,750	593.75	18,750
r5.2xlarge	4,750	593.75	18,750
r5.4xlarge	4,750	593.75	18,750
r5.8xlarge	6,800	850	30,000
r5.12xlarge	9,500	1,187.5	40,000
r5.16xlarge	13,600	1,700	60,000
r5.24xlarge	19,000	2,375	80,000

The recommended AWS EBS storage type is Provisioned IOPS SSD (io1 and io2) volumes. These (io1 and io2) SSD volumes are designed to meet the needs of I/O-intensive workloads, particularly database workloads, that are sensitive to storage performance and consistency.

Unlike General Purpose EBS Storage (gp2), which uses a bucket and credit model to calculate performance, io1 and io2 volumes allow you to specify a consistent IOPS rate when you create volumes, and Amazon EBS delivers the provisioned performance 99.9 percent of the time, refer to Amazon EBS volume types.

As per Microsoft SQL Server best practice, 1E recommends to provision at least three separate AWS disk volumes for SQL Data, Logs and TempDB. These volumes may be made up from multiple Io1 disks, striped in a Basic Array using Windows Storage Spaces to create a single higher performance volume, with the combined IOPS of all individual disks in the Storage Pool. For an example of this, refer to Maximizing Microsoft SQL Server Performance using Amazon EC2 NVMe Instance Store.

The configured volumes should have the combined MBs/IOPS throughput, equal to or above, the total MBs/IOPS supported by the given instance type, to gain maximum storage throughput performance possible for the given instance type.

Increasing AWS SQL Server performance

The latest AWS R5b EC2 instances are specifically designed for larger SQL Server deployments that require higher EBS performance per instance. R5b instances deliver up to 60 Gbps bandwidth and 260K IOPS of EBS performance, the fastest block storage performance on EC2, refer to Better performance for less: AWS continues to beat Azure on SQL Server price/performance. For larger scale 1E environments, achieving the best storage throughput provides the best performance for long running data consolidation operations.

In addition, the latest Amazon EC2 R5b Instances benefit from the highest block storage performance with a single storage volume using io2 Block Express, refer to Amazon EBS Provisioned IOPS Volumes. AWS R5b instances and block express EBS storage allows you to achieve the maximum storage throughput available to the VM for high-intensity SQL Server operations.

AWS EC2 prescriptive design patterns

AWS Instance and storage sizing for different customer sizes:

	Medium 1	Medium 2	Large 1	Large 2	Large 3
Max devices	25,000	50,000	100,000	200,000	500,000
1E server
AWS Instance	M5.xLarge	M5.2xlarge	M5.4xlarge	M5.8xlarge	M5.16xLarge
CPU Cores	4	8	16	32	64
RAM	16 GB	32 GB	64 GB	128 GB	256 GB
Switches	1	1	2	4	10
NICs	2	2	3	5	11
Remote SQL Server
AWS Instance	R5.xlarge	R5.2xlarge	R5.4xlarge	R5.12xlarge	R5.16xLarge
CPU Cores	4	8	16	24*	64
RAM	32 GB	64 GB	128 GB	384 GB	512 GB
Max MB/s	593.75	593.75	593.75	1,187.5	1,700
Max IOPS	18,750	18,750	18,750	40,000	60,000
DB Disk Size	500 GB	1,000 GB	2,000 GB	4,000 GB	8,000 GB
DB Disk IOPS	10,000	10,000	12,000	24,000	48,000
Logs Disk Size	150 GB	300 GB	600 GB	1,200 GB	2,000 GB
Log Disk IOPS	5,000	5,000	6,000	8,000	16,000
TempDB Size	150 GB	300 GB	600 GB	1,200 GB	2,000 GB
TempDB IOPS	6,000	6,000	8,000	10,000	20,000

AWS network considerations

A server hosting a 1E Response Stack requires a dedicated network interface for each of its Switches, and for the connection to the remote SQL Server instance used for the Responses database to keep incoming traffic from clients separate from the outgoing traffic to the Response database.

Enhanced networking (SR-IOV) must be enabled on both NICs which should be the default. Also increase the transmit (TX) and receive (RX) buffer sizes to their maximum under the network adaptor advanced properties. Refer to Networking in Amazon EC2.

Additional and complex configurations

1E Switch and Background Channel servers (DMZ)

In some customer environments, with network segmentation, it may be beneficial to separate the Switch infrastructure servers from other 1E component servers so that clients connect to a more network local server, whilst the platform and SQL Servers reside in a more central datacenter subnet. This same model is true for a DMZ environment, where remote clients only connect to Switch and Background Channel components in an intentionally separated DMZ environment and subnet.

1E Server Setup (DMZ installation) can be used to install 1E components for required for client connectivity only, that is, the Switch and Background Channel (BGC). Servers with only Switch and BGC components will have lesser memory, CPU core and storage requirements than a full 1E server, but the following requirements should be noted:

• As stated above, a new instance of the Switch is required for every 50k clients with a dedicated NIC of at least 1GBps speed. This network IP may be shared with the BGC.

• To support additional client connection count numbers, for every 50k clients, a separate dedicated NIC and additional instance of the Switch and separate IP address will be required.

• An additional internal facing interface is required for outgoing response traffic from Switch(s) on the Switch/DMZ Server to the internal Response Stack. This also should have a minimum speed of 1Gbps, or higher if hosting multiple switch instances.

On-premises and cloud specifications for a Switch and BGC (DMZ) server:

Platform	On-premises	Microsoft Azure	Amazon AWS
Devices	Up to 50,000	Up to 50,000	Up to 50,000
Server Type	Physical or Virtual	Std_D4s_v4	M5.xlarge
CPU Cores	4	4	4
RAM	16 GB	16 GB	16 GB
Switches	1	1	1
NICs	2	2	2
Devices	Up to 100,000	Up to 100,000	Up to 100,000
Server Type	Physical or Virtual	Std_D8s_v4	M5.2xlarge
CPU Cores	8	8	8
RAM	32 GB	32 GB	32 GB
Switches	2	2	2
NICs	3	3	3
Devices	Up to 200,000	Up to 200,000	Up to 200,000
Server Type	Physical or Virtual	Std_D16s_v4	M5.4xlarge
CPU Cores	16	16	16
RAM	64 GB	64 GB	64 GB
Tachyon Switches	4	4	4
NICs	5	5	5

Separate Master and Response Stacks

The standard 1E installation assumes all components are installed on a single server, with databases hosted on a remote dedicated SQL Server.

However, it is also supported to split some of 1E components between multiple servers - in this configuration creating a 1E Master Stack server (Coordinator Service, Consumer API, Experience and SLA Inventory components) and one or more 1E Response Stack servers (Switch, Background Channel and Core components).

1E Server Setup has different configuration options, to support these installation types, installing first a Master Stack and then separate Response Stack servers.

A split-server configuration would only really be practical in large scale environments, but does have a couple of advantages over installing all components on a single server:

• Spread the H/W requirements into multiple, smaller servers: If the required VM sizes (CPU and Memory or of NICs) is greater than the capabilities of the virtual host, then multiple smaller sized VMs may be more practical in some environments.

• Provide some Resilience and fault-tolerance for the Platform: Multiple and redundant Response Stack servers, would allow for the failure of a single Response Server VM, where all clients fall over to the remaining server and it's Switch instances in single VM failure.

Multiple Response Stacks can provide higher performance throughput than a single server, but at the cost of increased total vCPU and Ram for the platform, across multiple VMs. To achieve resilience, it would assume the number of Switches configured and total capacity of a single Response server, is matched to the total load of all required client connections. This may mean at least three response server installations are required, so that two remaining response servers can handle all the required number of active connections, if one VM fails.

In terms of resilience, it should be noted that multiple redundant Response Servers only provide resilience in the failure of one of the redundant Response server VMs – if the separate and single Master Stack VM (or SQL Server) fails, then the entire 1E solution would be unavailable. Overall resilience and high-availability would best be enabled using the standard high-availability features built-in to the chosen virtualization platform and at the storage system level (on-premises), or if in the cloud, through their specific high-availability and disaster recovery options.

The rule that for every 50,000 clients, 1E requires a separate instance of the Switch component, which requires a dedicated Network Interface (NIC), still applies for Response Servers, as they will host switch instance(s) alongside the 1E Core component. If deploying separate Response and Master Stack servers, it is still recommended installing all 1E databases on a separate and dedicated SQL Server, so as not to mix a SQL Server installation with IIS other and web server components, as per Microsoft best practice. Therefore, the VM sizing guidelines, disk throughput and storage requirements for SQL Server VM will be identical, if either a single or split platform server configuration. Refer to the above sections for SQL Server sizing, using specific total client counts required for the environment.

Response Stack server design patterns

With Response Stack servers, there are various configuration sizes that could be used to support the required maximum number of active clients, depending on required resilience or redundancy. The basic formula for sizing a separate Response server is to allocate at least 8x vCPU cores and 16GB of memory for a maximum of 50,000 active clients reporting to that server.

Response Stack server sizing for different customer sizes:

Master Stack server design patterns

The basic formula for sizing a separate Master Stack server is to allocate at least 2x vCPU cores and 16GB of memory for every 50,000 active clients in the environment. The following table details the VM CPU, Memory and NIC requirements for example individual Response servers, supporting a max total number of active clients in the environment.

Master Stack server sizing for different customer sizes:

How we measure disk performance

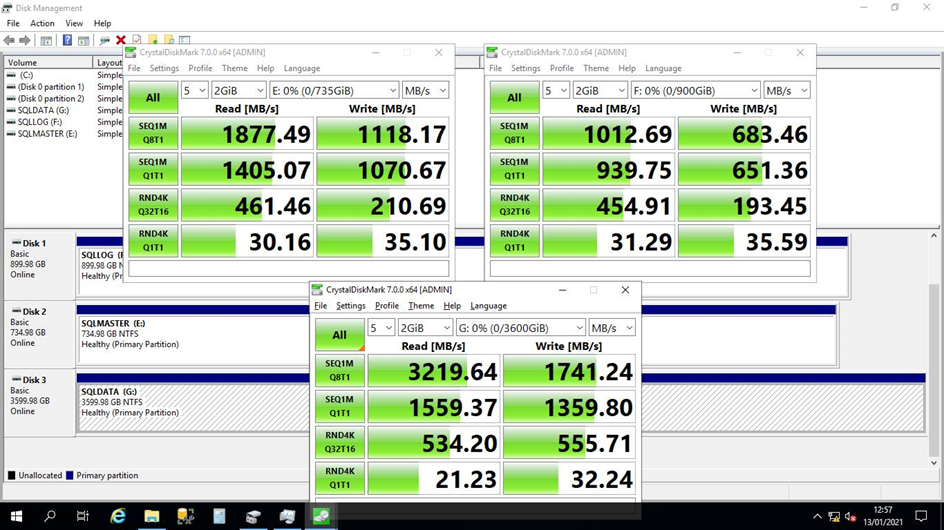

There are a number of third party tools to measure disk and storage performance but the most commonly used and referenced by various hardware providers, is CrystalDiskMark. An example of the output from CrystalDiskMark is shown below, where the drives consist of an array of Samsung Pro 850, 6 Gb/s SATA SSDs.

Under the hood, CrystalDiskMark uses the Microsoft tool Diskspd (DISKSPD 2.2) which can be useful to run on its own to get a simple and reproducible way to measure different server and VM disk subsystem performance. Use the following command line to test each of the relevant SQL volumes, by drive letter, in turn.

Diskspd -b64k –d120 –o32 –t4 –h –r –w25 –L –c2G G:\TestLoad.dat > GDisk_resultdetails.txt

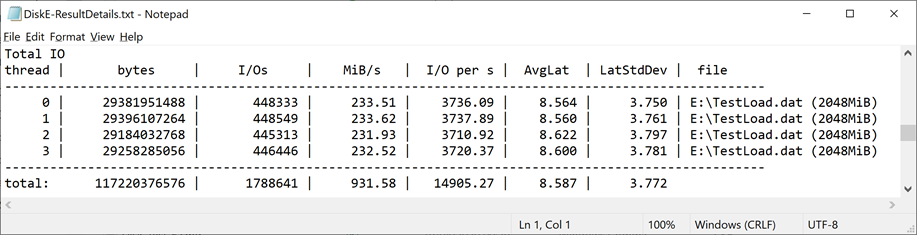

Once complete, review the output in the created results file GDisk_resultdetails.txt for the Total IO thread section. In the following example, the total throughput in MiB/s is measured at 931.58.

1E is more akin to a Data Warehouse type SQL Application (large sequential Writes and Reads) and not an OLTP type system (millions of small random IO requests). Therefore, overall throughput (MB/s) is more important than just IO alone. Also, when comparing IOPS in the sizing tables above (16k), and Diskspd at 64K block size, x4 to equate the values.

External reference documents mentioned in the above sections:
