Management Groups

Management Groups are containers used to group devices and the software installed on those devices. Management Groups are defined using configurable rules that look at various properties of the devices and their installed software, which are then evaluated to determine the group membership. This means that Management Group membership adapts to changes to the devices and software in your environment.

Management Groups are used to determine the following:

• The targets for questions, actions, and reporting

• User permissions for targeting particular devices based on Management Group membership

In terms of permissions for determining how users interact with the devices in your network, Management Groups work alongside instruction sets.

Management Groups are created in two different ways:

• Rule based: The page lets you add, edit, delete, and evaluate Management Groups that are based on rules

• Direct based: These use scripts to create Management Groups by importing lists of devices using FQDN. This type of Management Group has no associated rules and cannot be edited and evaluated from the Management Groups page. we recommend using the 1E PowerShell Toolkit

Both types of Management Group have the following properties:

• Each device known to 1E Platform can be assigned to any number of Management Groups

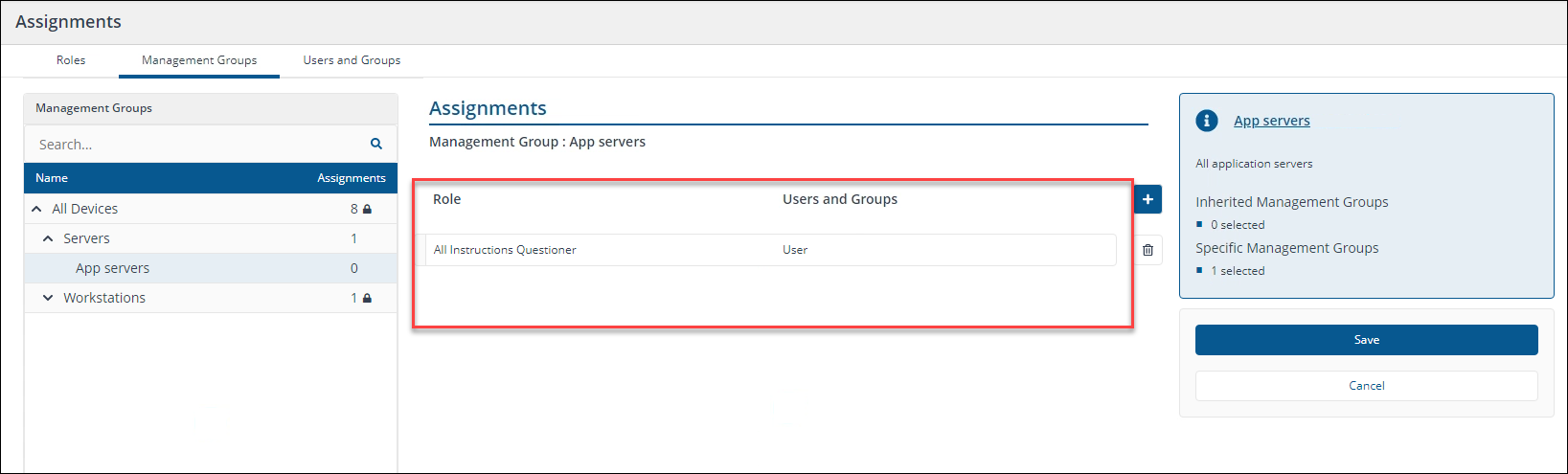

• Roles can be associated with specific Management Groups so that users with those roles will only be able to target the devices in their Management Groups

• Management Groups can only contain devices, and they are completely independent of any other Management Group, even if they contain the same devices

• Each Management Group must have a unique name that is not case-sensitive

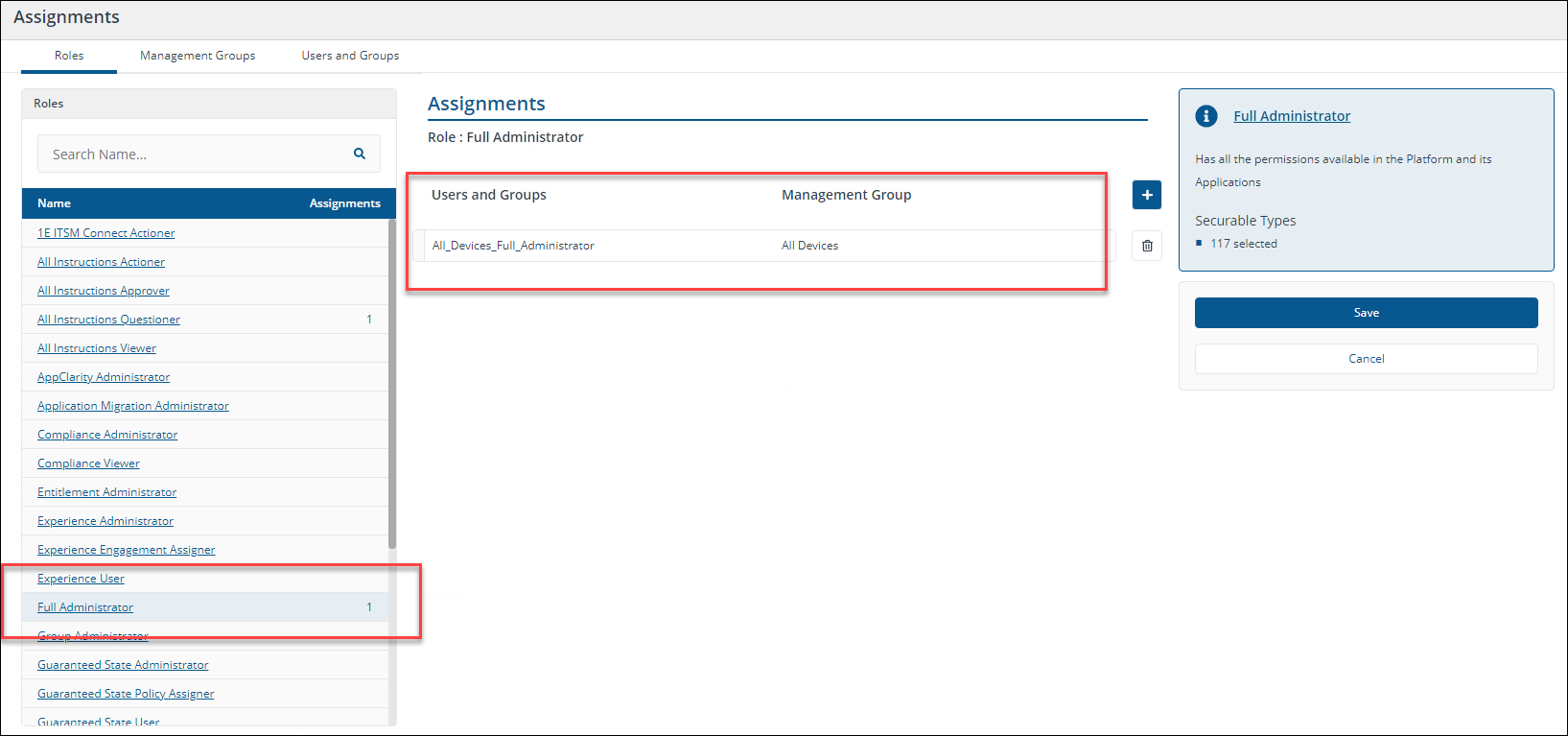

The following roles can add Users and Groups, Roles, Management Groups, Assignments, and Delegation:

• Full Administrator

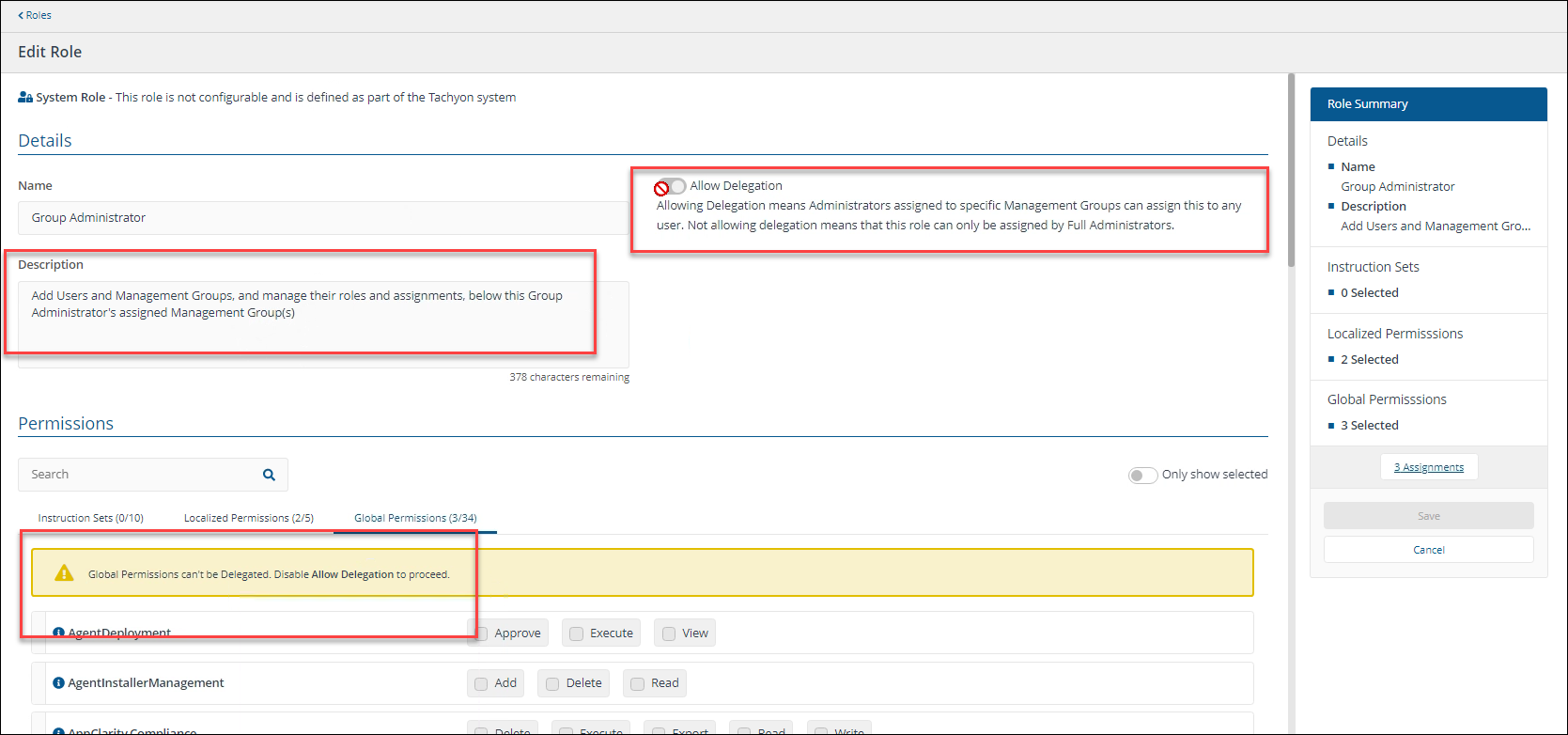

• Group Administrator: Cannot create roles unless they are delegated

Refer to Roles page

Management Groups use device data stored in an Inventory repository, which is populated using one or more inventory connectors, as described in Connectors page. This is sufficient for inventory-based applications like AppClarity, Application Migration, and Patch Success.

If you want client-based applications like Endpoint Troubleshooting, Experience Analytics and Endpoint Automation to use the Management Groups, then you must add a 1E Connector, which synchronizes its own data with inventory data. The username and password you provide for the Connector must be a valid user and belong to the Management Group Administrator role. Refer to 1E connector. You only require to configure the connector, you do not need to schedule or run the 1E connector unless you also want to collect data from clients.

Direct-based Management Groups are created using scripts:

• Each script creates a new log file in the same folder using the format <scriptname>_<ddMMyyyyhhmmss>.log. These log files must be deleted manually.

• If a Management Group with the same name already exists, the script deletes it and recreates it using only the newly provided devices.

• If the file or collection includes a device that is not present in the 1E Inventory repository, the device is ignored and the omission is logged.

• After a successful run, the script triggers a Management Group synchronisation.

Once imported into the Platform, your direct-based Management Groups will be added as child groups of the default All Devices Management Group.

Prerequisites

Ensure the following prerequisites are in place before executing this script:

• The user that is running the script must have read/write permission in the folder where the PowerShell script is present.

• The user that is running the script must have permission to create Management Groups.

• If Windows Task Scheduler is used to run the script, then the scheduled task should provide the current logged-in user.

Create Direct-based Management Groups from a file

1. Create a folder that will contain text files to create Management Groups. This is the FolderPath passed as a parameter in the PowerShell script.

2. Create text files in the above folder with the name same as the Management Group (for example, ManagementGroupName.txt).

   • Enter a description of the Management Group in the first line.

   • Enter one or more Device FQDN from the second line onwards, one device per line.

3. Optionally, add more files if you want to create multiple Management Groups.

4. Download the Create-DirectManagementGroupUsingFile.ps1 PowerShell script and execute it.

   This script reads the Device FQDN list in files and creates Direct Membership Management Groups through SLA/Tachyon APIs. If the group does not exist it is created and devices are added. If the group exists, the existing devices are deleted and new devices are added.

   To download the script, use this link Create-DirectManagementGroupUsingFile.ps1

   Copy

   .\Create-DirectManagementGroupUsingFile.ps1 `
       -TachyonApiBaseUrl "tachyon.testlab.com" `
       -FolderPath "C:\Temp\DeviceFolder" `
       -Ps1eModulePath "C:\Temp\1epowershelltoolkit.v1.2.22.0"

   Parameter name	Requirement	Description
   TachyonApiBaseUrl	Mandatory	Platform base URL, for example, tachyon.lab.local.
   FolderPath	Mandatory	The name of the input folder which contains the files to be used in creating Direct Membership Management Groups. These files contain the list of devices to be used in creating Management Groups. The File name should be same as the name of Name of Management Group. Also, the first line of the file should contain the description of Management Group to be created, from next line onwards every line contains the Device FQDN.
   Ps1eModulePath	Mandatory	Folder path where the PowerShell Toolkit is saved.
   ClientAssertionAppId	Optional	The AppId of the Client Assertion application created inside the cloud which is used for Authentication. Certificate should be present in same application.
   CertificateSubject	Optional	Subject name of the Certificate used for Authentication.
   CertificateThumbprint	Optional	Thumbprint of the Certificate used for Authentication.
   Upn	Optional	UPN of the user for which mapping is targeted. Required only for Add and Update operations.

Create Direct-based Management Groups from a Configuration Manager collection

1. Create a text file that will be passed as a parameter in the PowerShell script.

2. In the file, enter the following as a comma separated single line: Collection name, Management Group name, Management Group description

3. Optionally, enter more lines in the same format if you want to create multiple Management Groups.

4. Download the Create-DirectManagementGroupUsingCmCollection.ps1 PowerShell script and execute it.

   To download the script, right click and select Save link as: Create-DirectManagementGroupUsingCmCollection.ps1.

   Copy

   .\Create-DirectManagementGroupUsingCmCollection.ps1 `
       -TachyonApiBaseUrl "tachyon.testlab.com" `
       -FilePath "C:\Temp\Collection.txt" `
       -Ps1eModulePath "C:\Temp\1epowershelltoolkit.v1.2.22.0"

   Parameter name	Description
   TachyonApiBaseUrl	Platform base URL, for example, tachyon.lab.local.
   FilePath	File path that contains details of CM Collections.
   Ps1eModulePath	Folder path where the PowerShell Toolkit is saved.

Given the information provided in Creating direct-based Management Groups, we can now provide an example of how a direct-based Management Group can be added. In our example, we do not have any Management Groups except the default All Devices group. Once imported into 1E Platform, your direct-based Management Group will be added as a child group of the default All Devices Management Group.

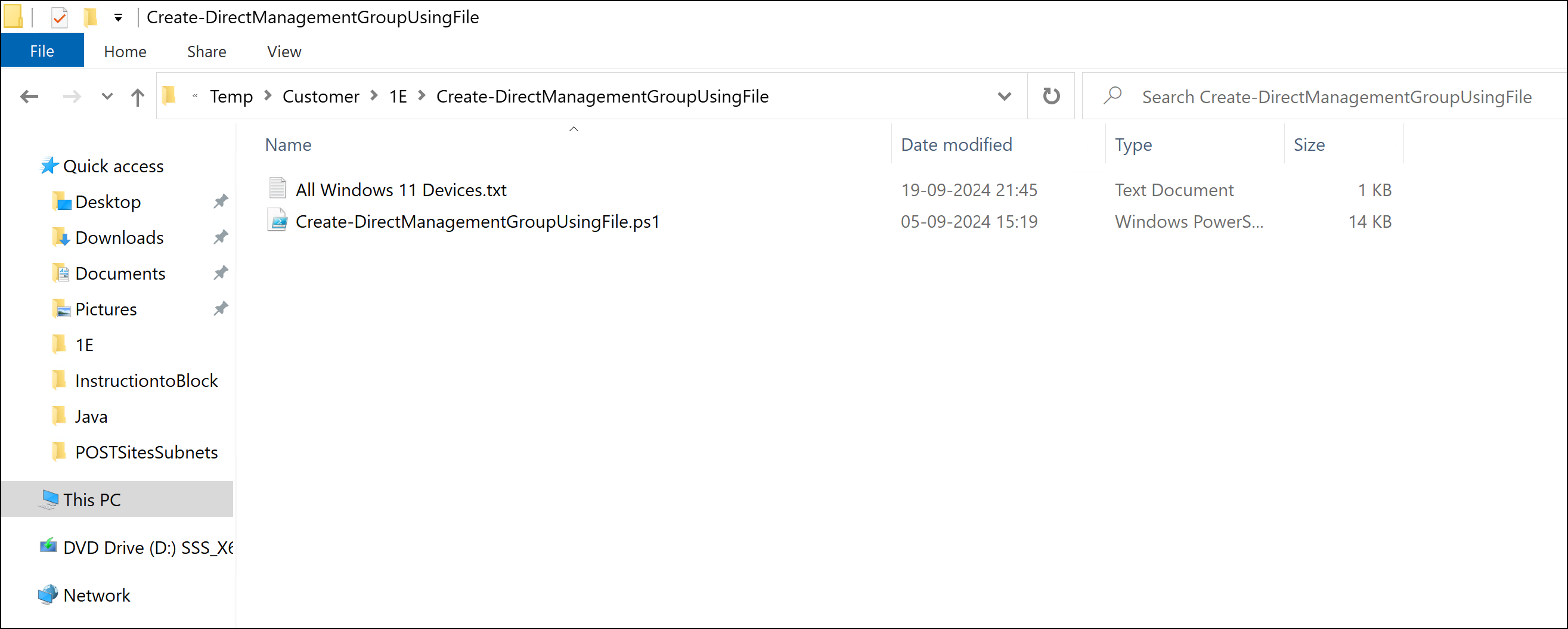

The device file

We've created an E:\Temp\Customer\1E\Create-DirectManagementGroupUsingFile folder and added two files:

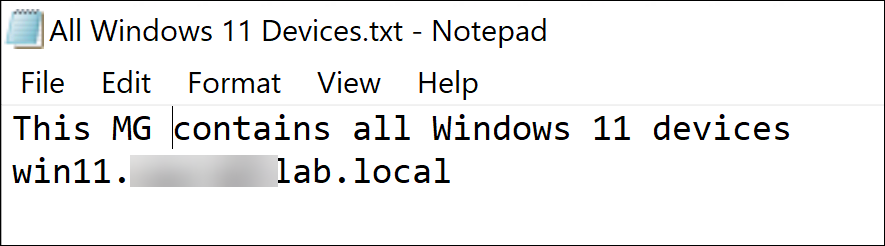

• All Windows 11 Devices.txt file containing a list of device FQDN on separate lines.

• Create-DirectManagementGroupUsingFile.ps1 PowerShell script. In our example, we'll run the script from the same folder as the text file.

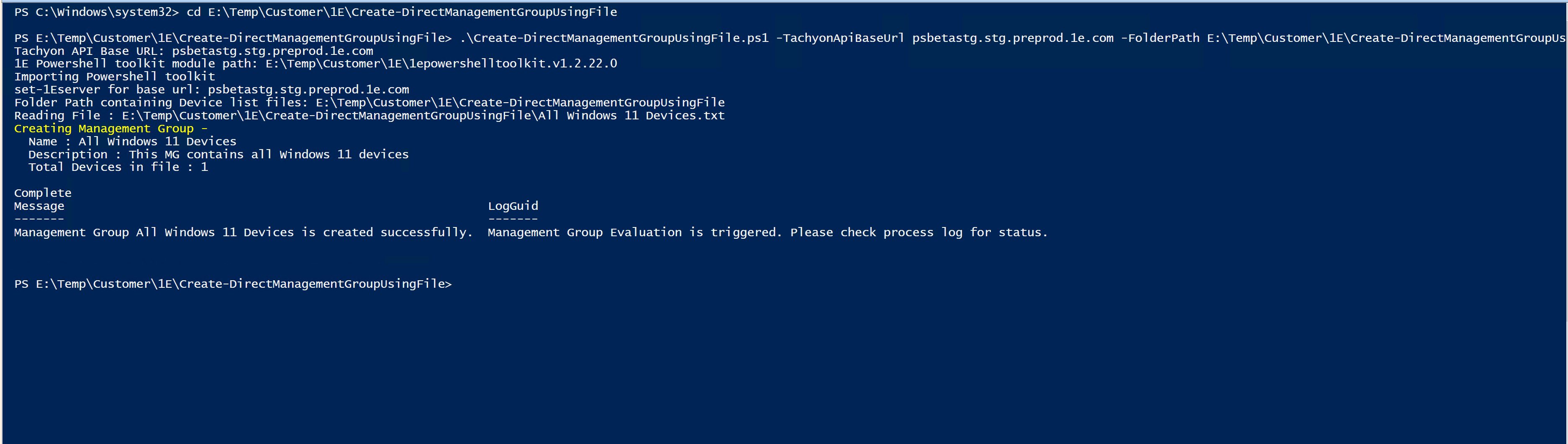

Running the script to populate the direct-based Management Group

With the device file in place, in our example, we run the Create-DirectManagementGroupUsingFile.ps1 file with the following command-line:

.\Create-DirectManagementGroupUsingFile.ps1 `
    -TachyonApiBaseUrl "psbetastg.stg.preprod.1e.com" `
    -FolderPath "E:\Temp\Customer\1E\Create-DirectManagementGroupUsingFile" `
    -Ps1eModulePath "E:\Temp\Customer\1E\1epowershelltoolkit.v1.2.22.0"

The TachyonApiBaseUrl is set to our example instance of psbetastg.stg.preprod.1e.com, the -FolderPath is set to E:\Temp\Customer\1E\Create-DirectManagementGroupUsingFile, and the PowerShell Toolkit folder path is set to E:\Temp\Customer\1E\1epowershelltoolkit.v1.2.22.0.

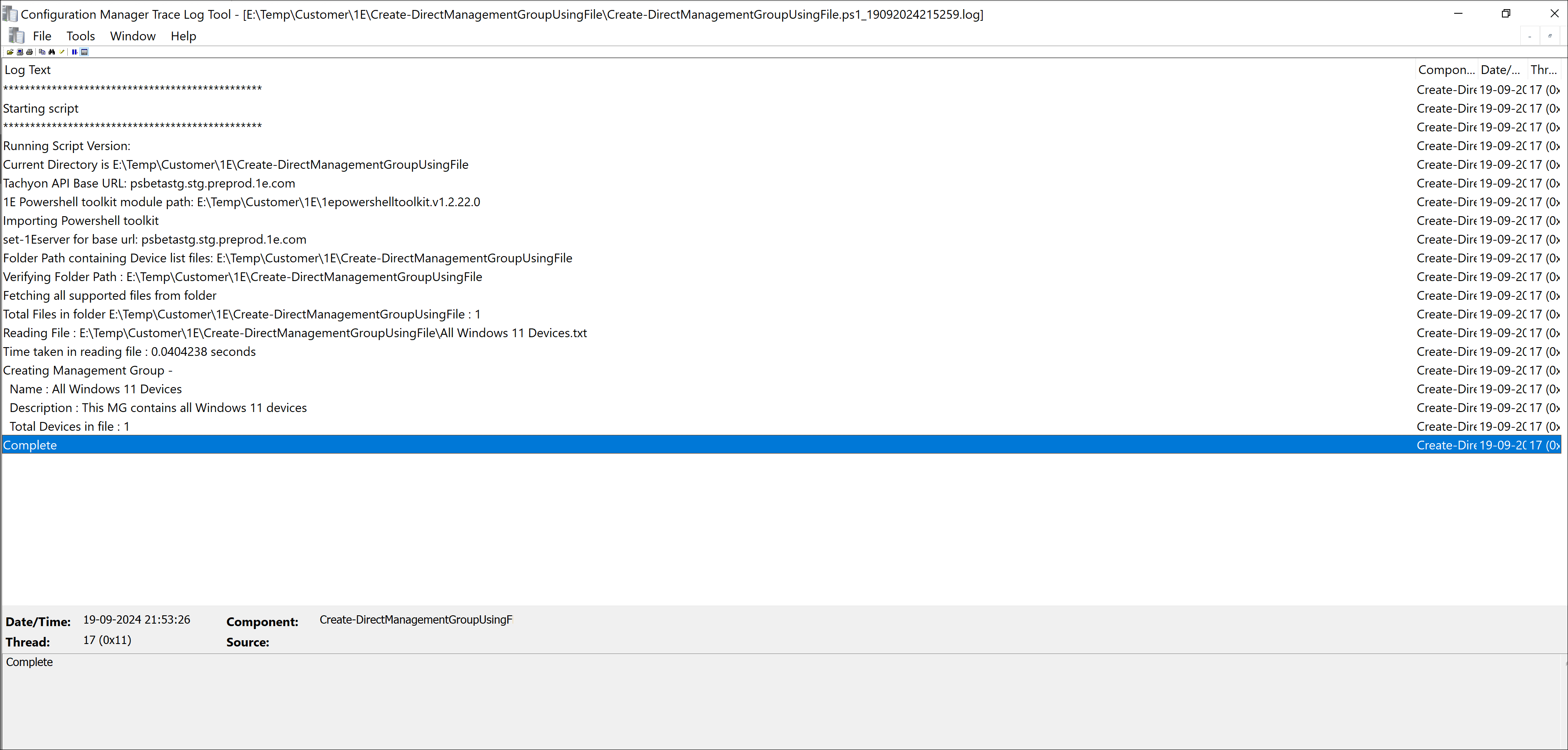

Checking the log file for Create-DirectManagementGroupUsingFile.ps1

After running the script, you will find that a log file is created in the same directory where the Create-DirectManagementGroupUsingFile.ps1 is located. In our example, we can see that the script completed without errors.

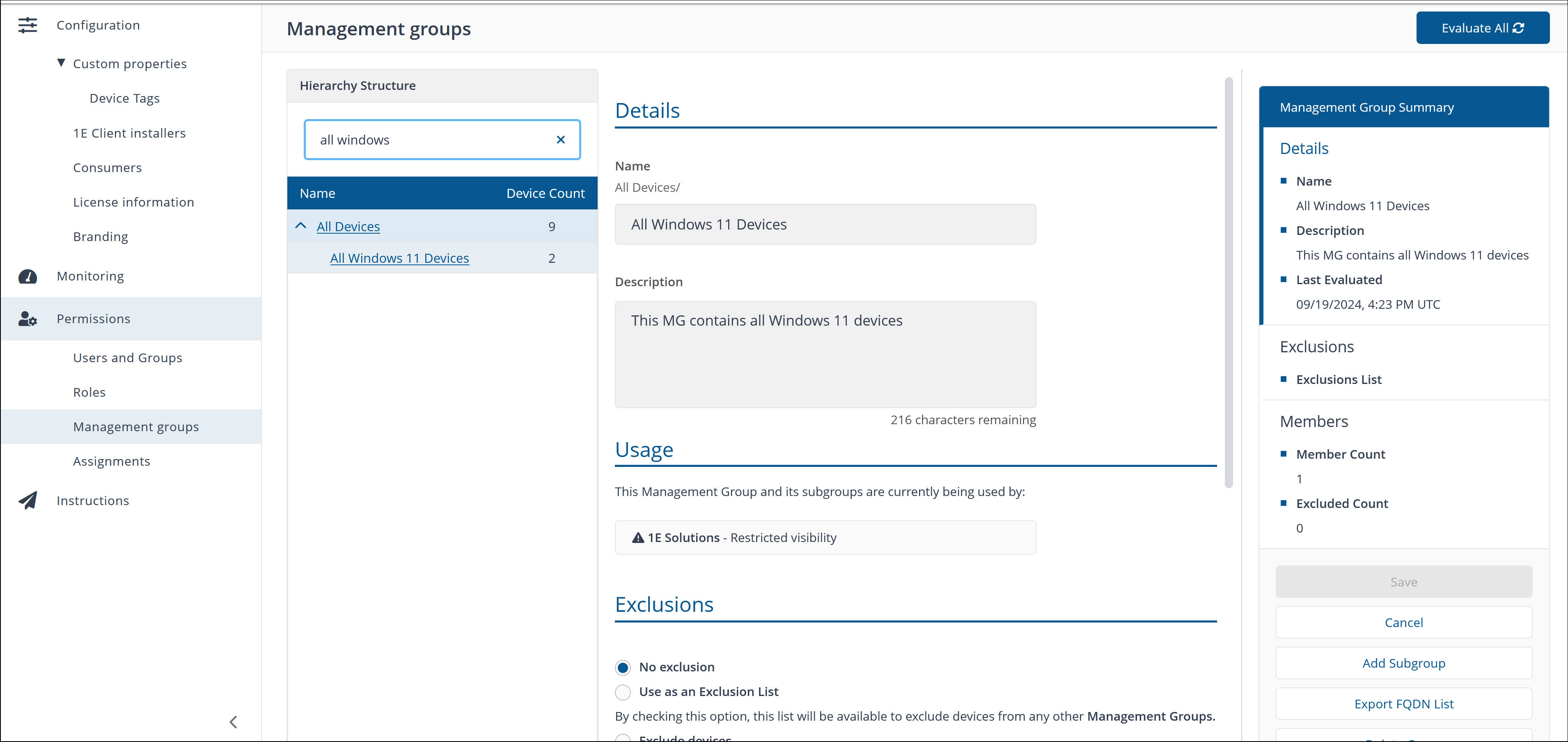

The direct-based Management Group added

After running the script, a new direct-based Management Group called All Windows 11 Devices gets added. Click the name of the Management Group to see more details including usage, exclusions, and members. You can also export the membership as a .TSV file or add subgroups as required.

The reports for creating and enabling direct-based Management Groups

When direct-based Management Groups are added to 1E Platform, some reports will run to enable the Management Groups to be used.

If more than one direct-based Management Group is added, you will see two Management Group Evaluation reports run on the default Inventory repository. You will also see an additional Management Group Evaluation report run on each additional non-default inventory repositories you have in your system.

If you have Application Migration installed, you will also see two Application Migration Consolidation reports run on the default ApplicationMigration repository.

In an example below, we have Application Migration installed, and we see four reports run: two Management Group Evaluation reports and two Application Migration Consolidation reports.

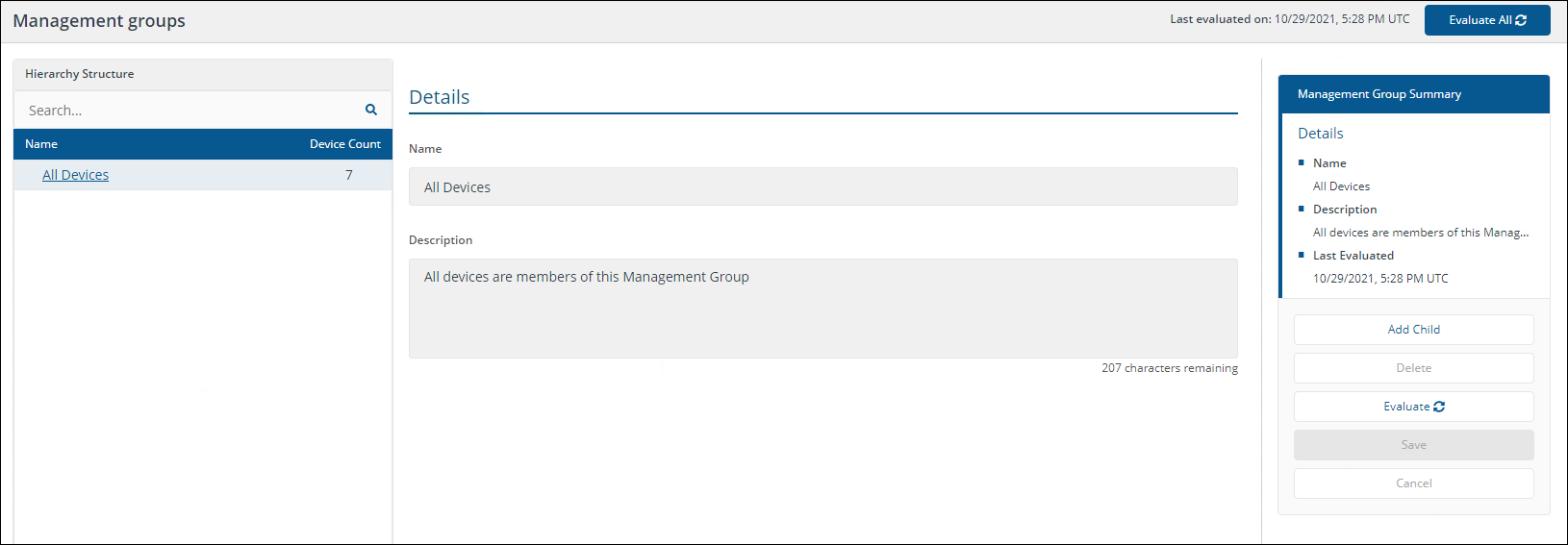

Before adding the direct-based Management Groups

In our example, we do not have any Management Groups except the default All Devices group with a total of all seven devices in our network, as shown. Once imported into 1E Platform, your direct-based Management Groups will be added as child groups of the default All Devices Management Group.

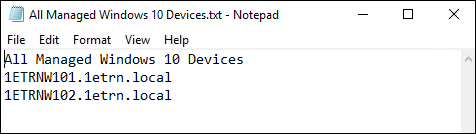

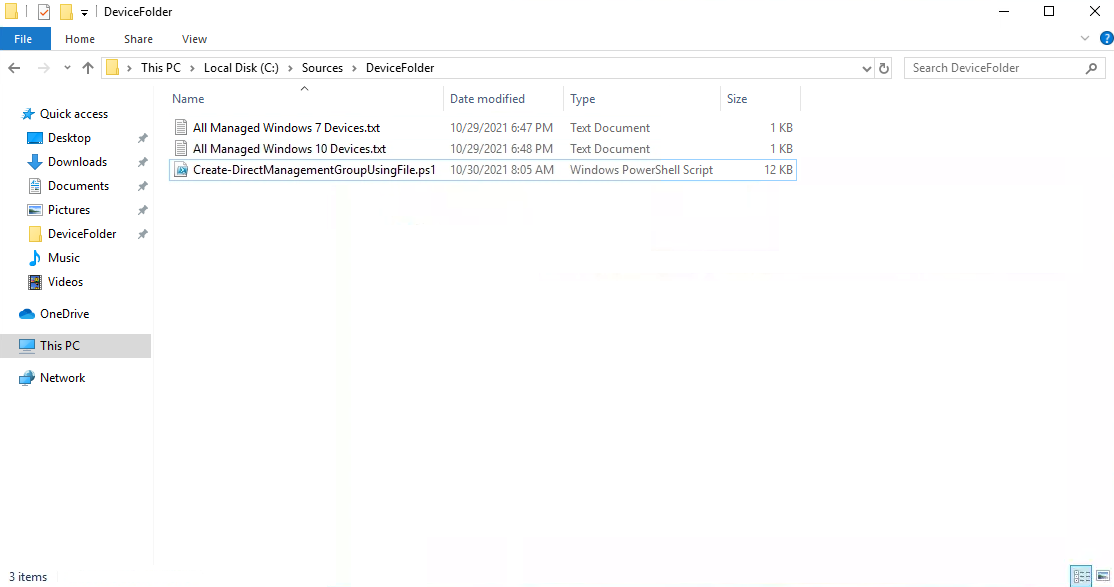

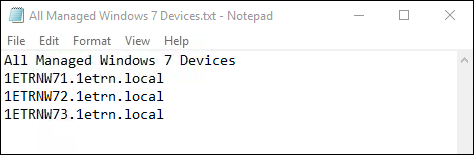

The device files

We've created a C:\Sources\DeviceFolder folder and added two files, All Managed Windows 10 Devices.txt and All Managed Windows 7 Devices.txt that contain a list of device FQDN on separate lines.

We have also added the Create-DirectManagementGroupUsingCmCollection.ps1 script to this folder, in our example we'll run the script from the same folder as the text files.

Running the script to populate the direct-based Management Groups

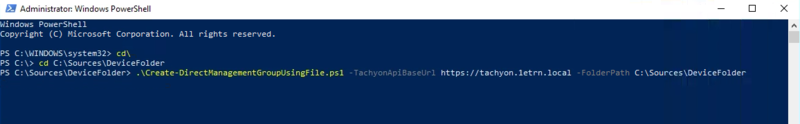

With the device files in place, in our example, we run the Create-DirectManagementGroupUsingFile.ps1 file with the following command-line:

.\Create-DirectManagementGroupUsingFile.ps1 `
    -TachyonApiBaseUrl "https://tachyon.testlab.com" `
    -FolderPath "C:\Temp\DeviceFolder" `
    -UseCustomCredentials

Where the TachyonApiBaseUrl is set to our example instance of https://tachyon.1etrn.local and the -FolderPath is set to the C:\Sources\DeviceFolder we set up earlier.

We don't bother with the UseCustomCredentials setting as the account we are running the script with has administrator permissions in 1E Platform.

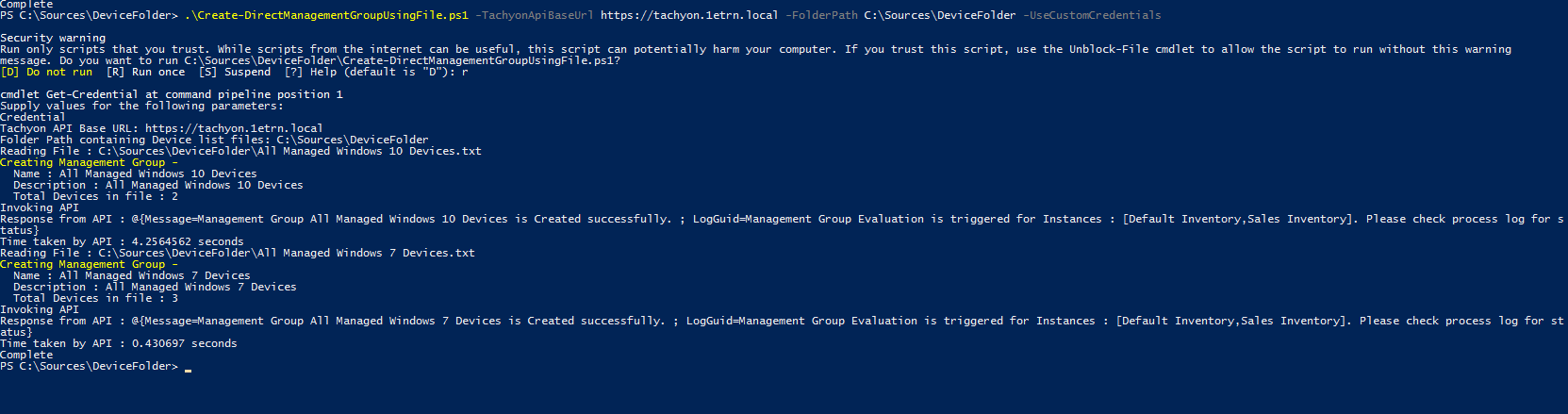

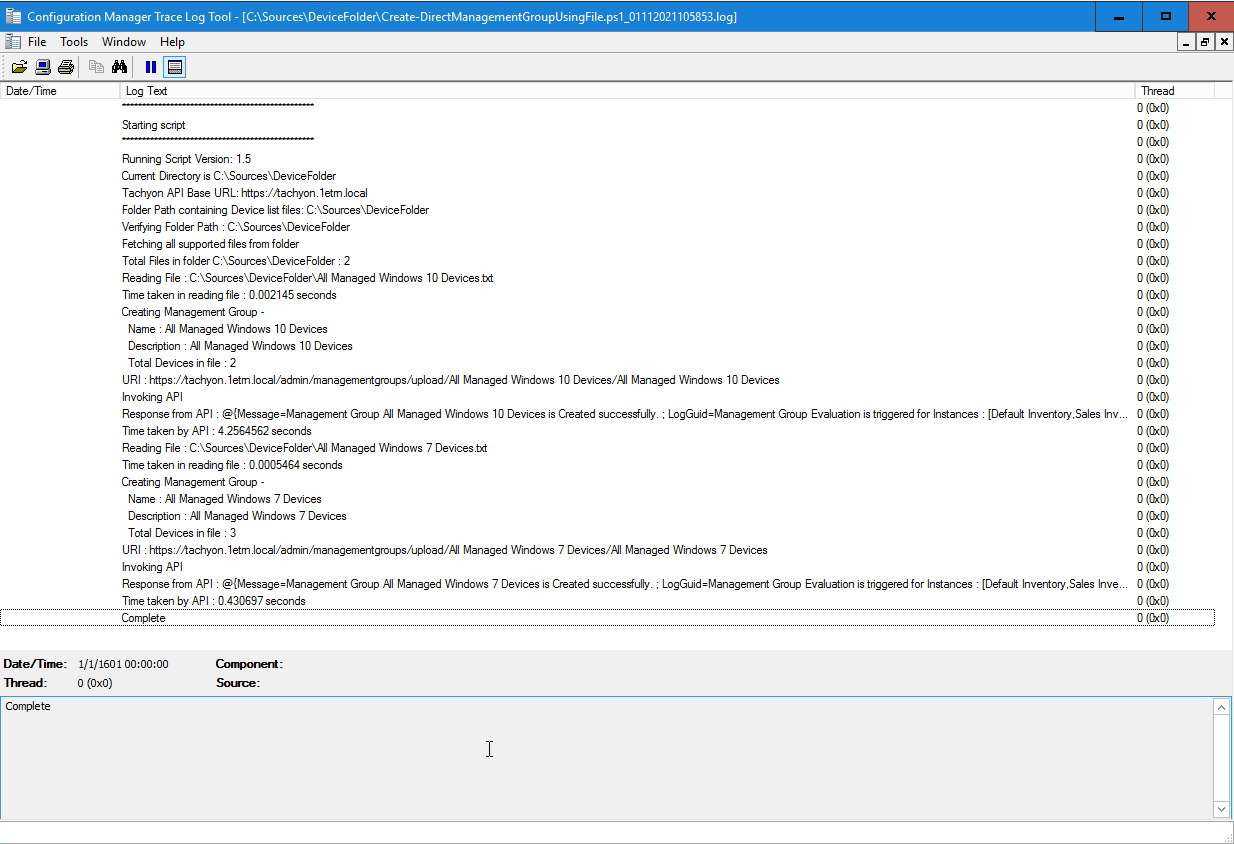

Checking the log file for Create-DirectManagementGroupUsingFile.ps1

After running the script you will find a log file is created in the same directory where the Create-DirectManagementGroupUsingFile.ps1 is located. In our example we can see that the script completed without errors.

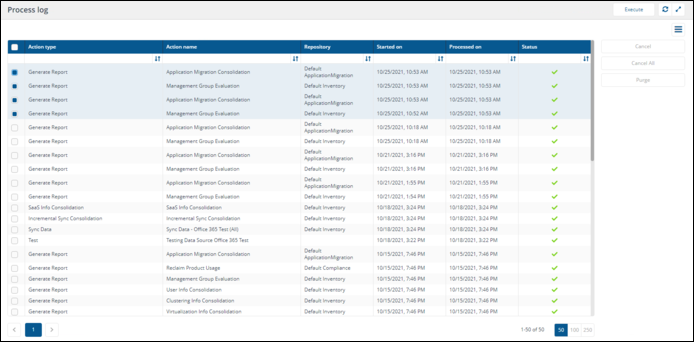

The reports for creating and enabling the direct-based Management Groups

When the direct-based Management Groups are added to 1E Platform some reports will run to enable the Management Groups to be used.

If more than one direct-based Management Groups are being added you will see two Management Group Evaluation reports run on the default Inventory repository. You will also see an additional Management Group Evaluation report run on each additional non-default inventory repositories you have in your system.

If you have Application Migration installed you will also see two Application Migration Consolidation reports run on the default ApplicationMigration repository.

In our example we have Application Migration installed, so we see four reports run when the DB Management Groups are added. Two Management Group Evaluation reports and two Application Migration Consolidation reports, as can be seen in the picture.

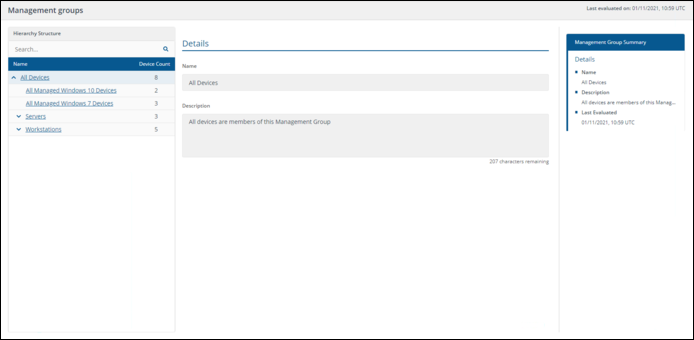

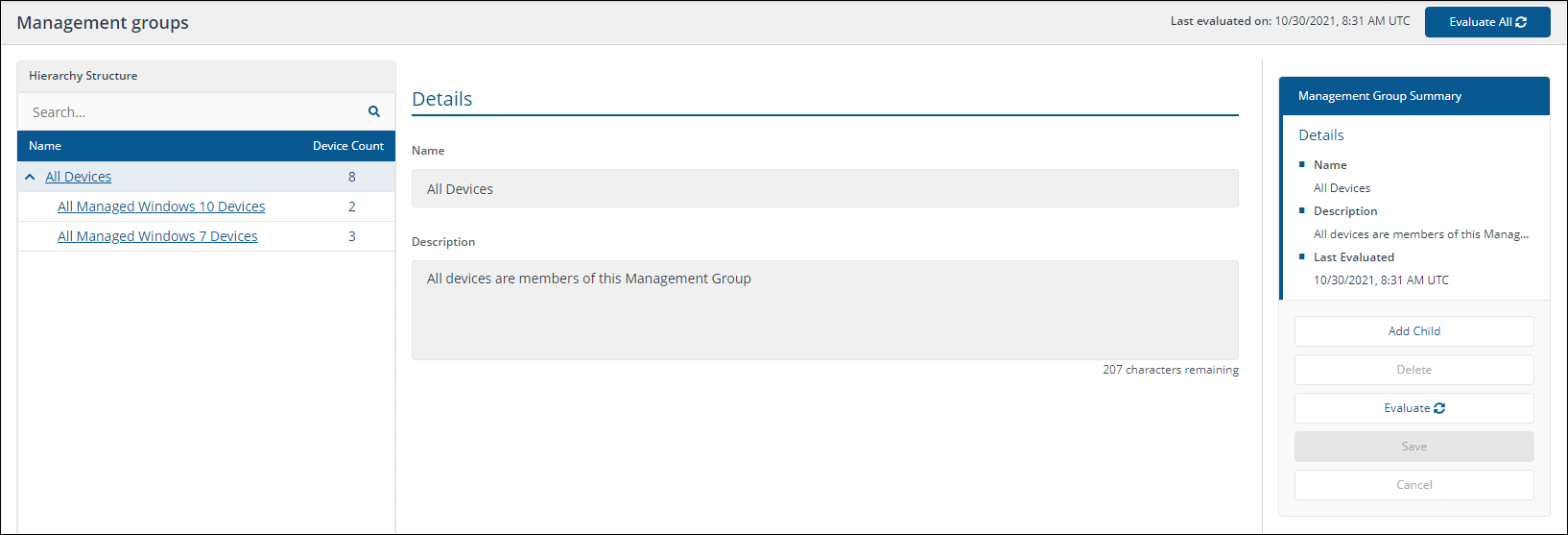

The direct-based Management Groups added

After running the script, two new direct-based Management Groups get added:

• All Managed Windows 10 Devices.txt

• All Managed Windows 7 Devices.txt

You can drill down to see the details of a Management Group by clicking the Name link.

Clicking on the All Managed Windows 10 Devices.txt  Management Group name link displays the details for that Management Group. Here, you can view group members, export the membership as a .TSV file or add Child Management Groups as required.

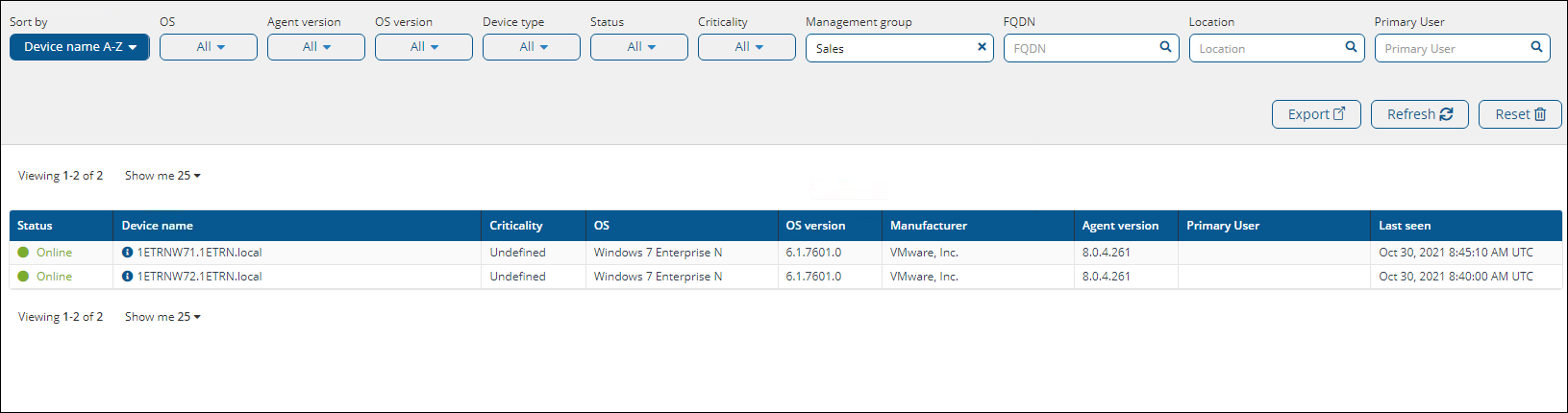

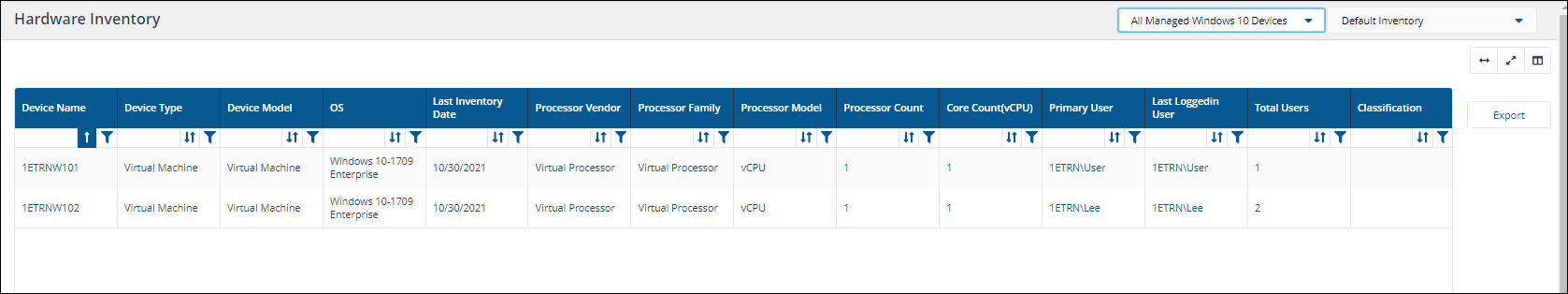

You can use the Inventory > Hardware Inventory page with the Management Group selector set to the name of the Management Group, to view every device contained in the new Management Group.

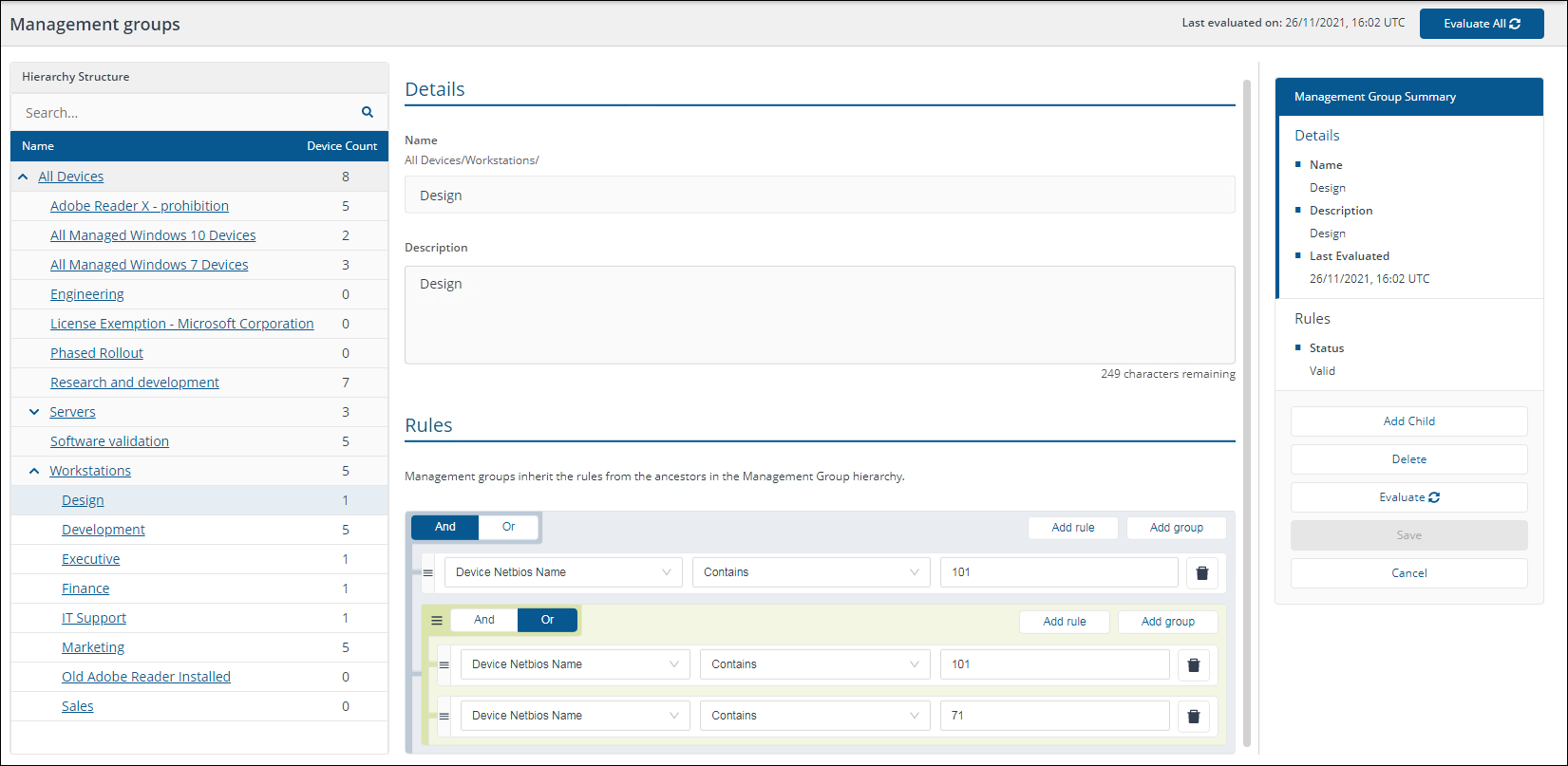

Rule-based Management Groups are defined and maintained in the Settings > Permissions > Management Groups page. They use device inventory data gathered from data sources by connectors and use Management Groups to control how instructions are applied in 1E Platform applications. All child Management Groups must be created under the default All Devices Management Group.

You can easily create complex Management Group definitions by building rules for them, you'll find this in the Rules section of each Management Group. In the Rules section, you can define parameters that determine what devices are members of your Management Groups. The rules you create can be as simple as defining membership according to the OU path in your AD, or as complex as adding groups of rules that narrow membership down to details like Processor Matched Threads per Core. You can also use device tags that you have created to define Management Group membership, or a combination of all these parameters.

By default, in a new instance of 1E Platform, all devices are members of the All Devices group. If you have upgraded from a previous version of 1E Platform, your previously created Management Group will be preserved and will become a child Management Group of All Devices Management Group. You can create Child Management Groups and nest them into a Hierarchy Structure where child Management Groups inherit rules from their parent groups.

Using child Management Groups you could create by hand a Management Group structure which mirrors your Configuration Manager collections, or divide your Management Groups by device type, for example into servers and workstations. You can use the delegation feature to create Management Groups that mirror your organizational structure with associated delegated roles.

To find out how to use scripts to import a Management Group structure from a file or from Configuration Manager collection, refer to Creating direct-based Management Groups.

Management Groups and Organizational Units (OU)

A Management Group can be created by using an Organizational Unit (OU) path as a filter.

Organizational Units (OU) are containers in Active Directory (AD) that organize users, computers, groups, and other objects into a logical hierarchy. OUs function like folders in a file system, enabling structured grouping and management of directory objects.

OUs follow a tree-like structure:

Copy

Domain
 └── OU (Department)
      └── OU (Team)
           └── Objects (Users, Computers, Groups)

Example: Device located in an OU

Copy

CN=LGNew-Globex, OU=Workstations, OU=IT-Department, DC=Tch15, DC=local

This indicates that the device LGNew-Globex belongs to the following hierarchy:

Copy

Tch15.local
 └── OU=IT-Department
      └── OU=Workstations
           └── Device: LGNew-Globex

Example: Device not assigned to an OU

In some environments, devices may not be assigned to an OU and may instead reside in a default container.

Copy

CN=LGNew-Globex, CN=Computers, DC=Tch15, DC=local

This path can be interpreted as:

Copy

DC=local
 └── DC=Tch15        (Domain: Tch15.local)
      └── CN=Computers  (Default container)
           └── CN=LGNew-Globex (Computer object)

In this case, the device is not part of any OU.

Important considerations for creating OU-based Management Groups

Within an organization:

• Some devices belong to specific OUs.

• Some devices do not belong to any OU.

When creating a Management Group with a rule like “OU Path does not contain London”, the result will include:

1. Devices located in other OUs.

2. Devices not assigned to any OU.

This rule behaves like:

Copy

All Devices – Devices in OU "London"

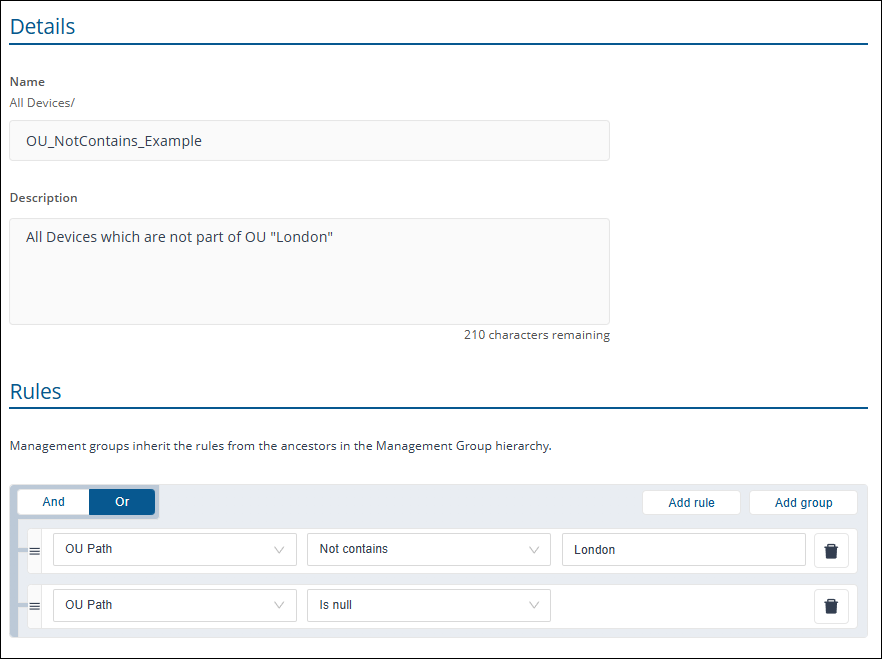

Recommended rule configuration

To ensure that all relevant devices are included, we recommended creating two rules (using OR):

• OU Path > Not contains > London

• OU Path > Is null

This ensures the Management Group includes:

• Devices in other OUs.

• Devices not assigned to any OU.

This configuration ensures that all devices outside the specified OU are included, including devices that are not assigned to any OU. On the Management Groups page, you would see the following view.

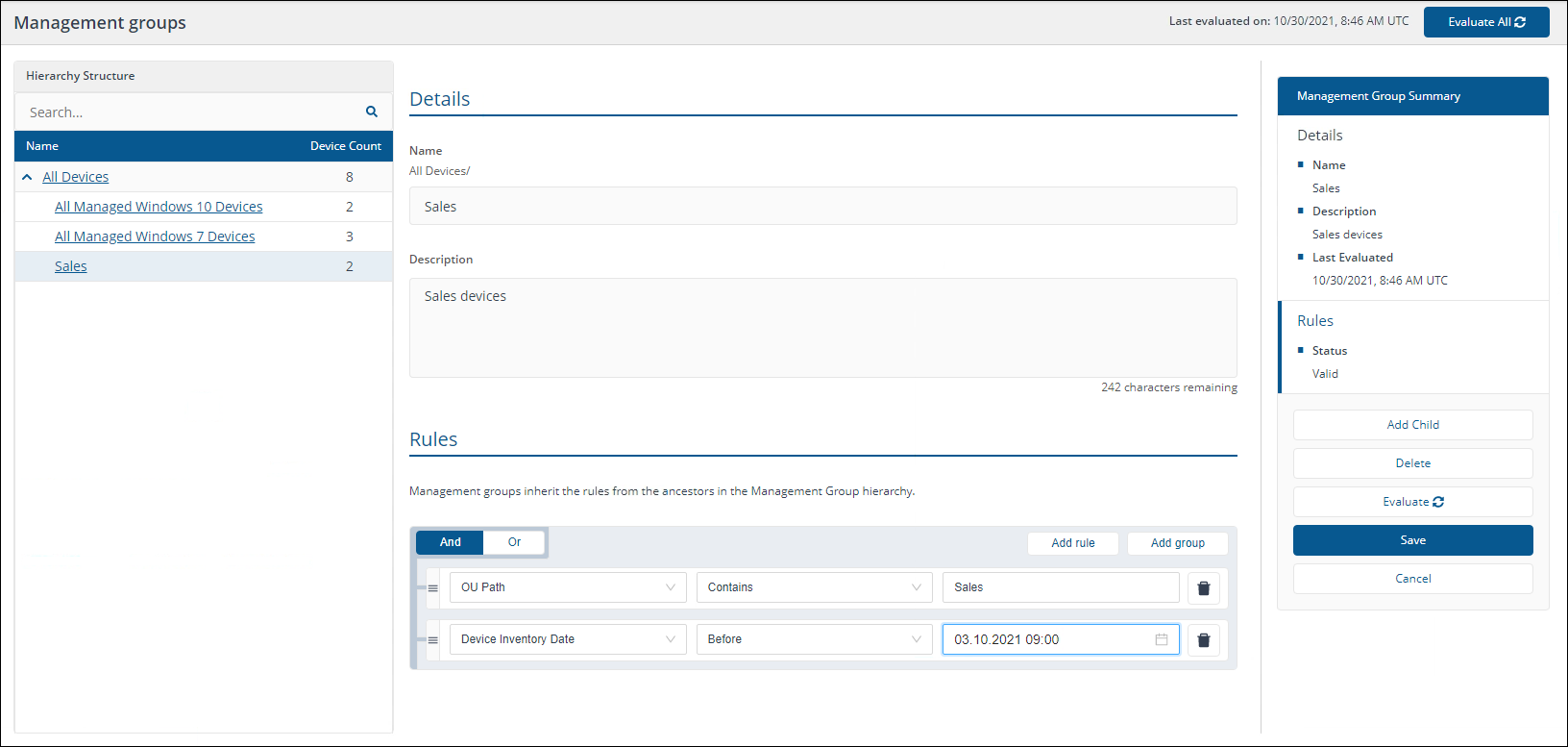

Creating a rule-based Management Group

In this example we will create a Management Group for devices that are based in a different office location, this location contains Windows 7 devices and is named Sales. The new Management Group is going to be a child group of the All Devices group.

To create the rule-based Management Group:

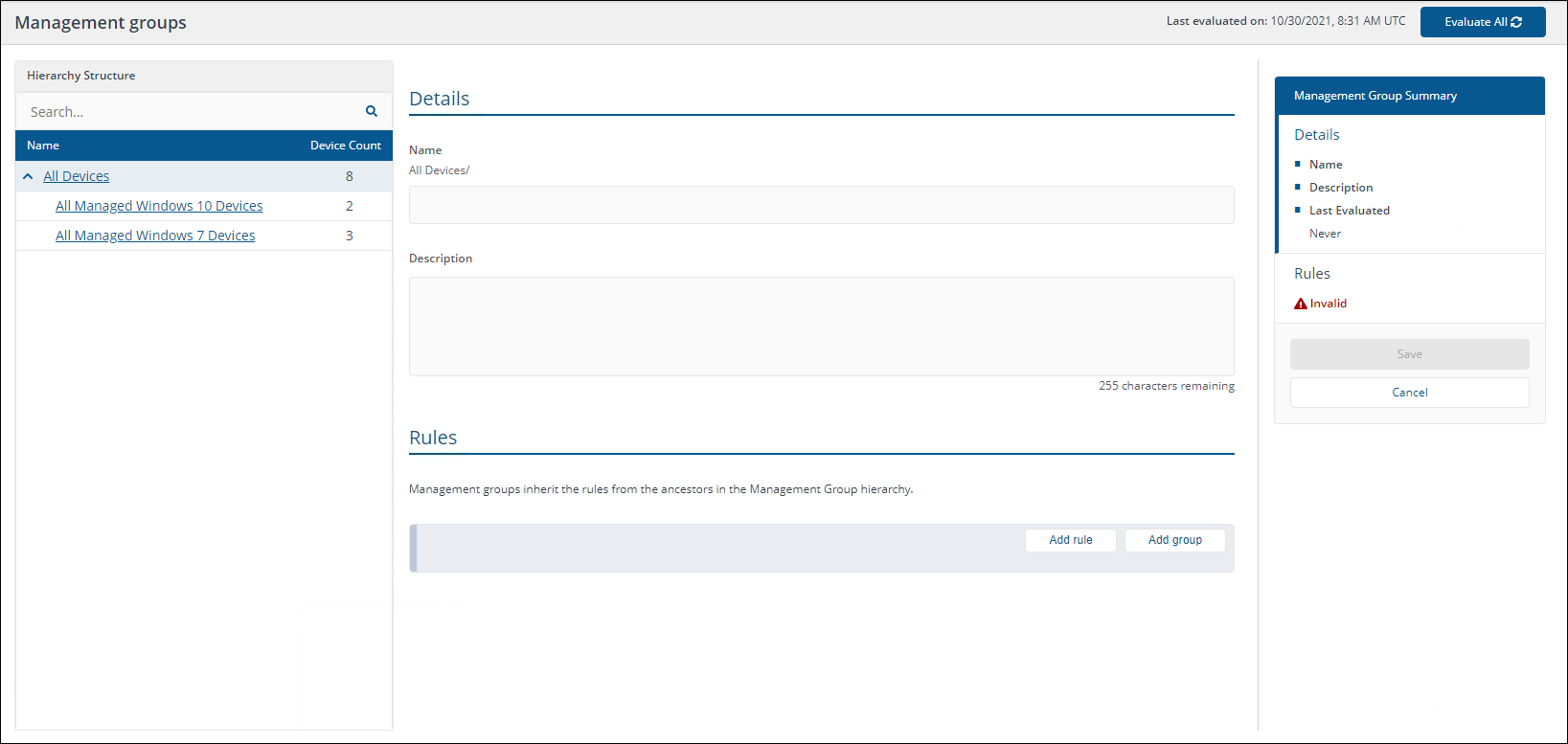

1. Click Add Child to display the new Management Group template.

2. Enter a suitable Name for the Management Group. For example Sales.

3. Add a Description, it's a good idea to use a description that provides an outline of the rules that are used to populate the Management Group. For example OU Path Contains Sales.

4. To add each rule:

   1. Click on Add rule. The first one is already added, all you need to do is fill out the parts of the rule.

   2. First, you select the rule name and description, for example, OU Path.

   3. You then select the condition. For example Contains.

   4. To complete the rule you then set the value. For example Sales.

   5. Click Save.

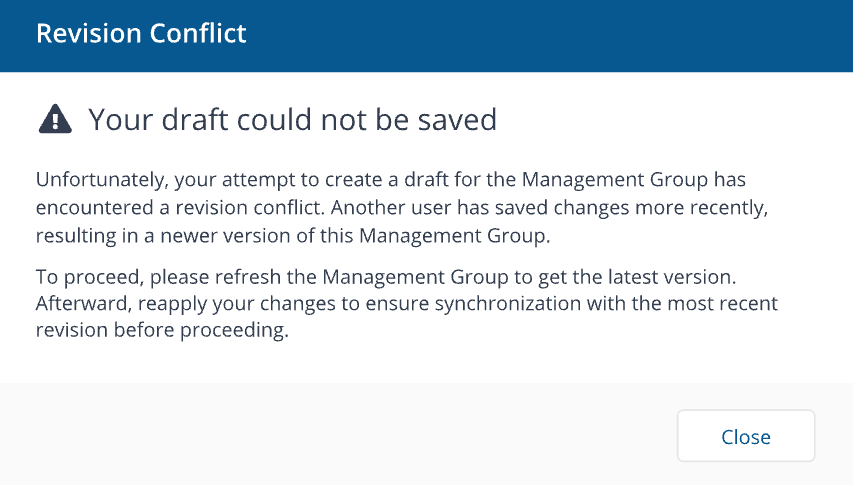

      You cannot save changes to a Management Group if another user has just made new changes to that group. You will need to Refresh the page first.



5. Repeat step 5 for each rule you want to define.

6. When you have more than one rule added, you can:

   • Use the gripper icon at the right-hand end of the rule to change the order the rules are applied by dragging the rule to a new place in the list.

     In version Platform 9.2, the “drag by mouse” feature has been retired. Other screen controls remain accessible using a keyboard.

   • Change the conjunction operator at the left-hand end of the rule to select between AND and OR.

7. When you have finished adding the rules, you need to decide whether you want the Management Group membership to be evaluated immediately on adding the Management Group. If you are just adding one Management Group, it makes sense to click Evaluate. If you are adding a number of Management Groups, it may be a good idea to leave Click Evaluate All at the top of the page.

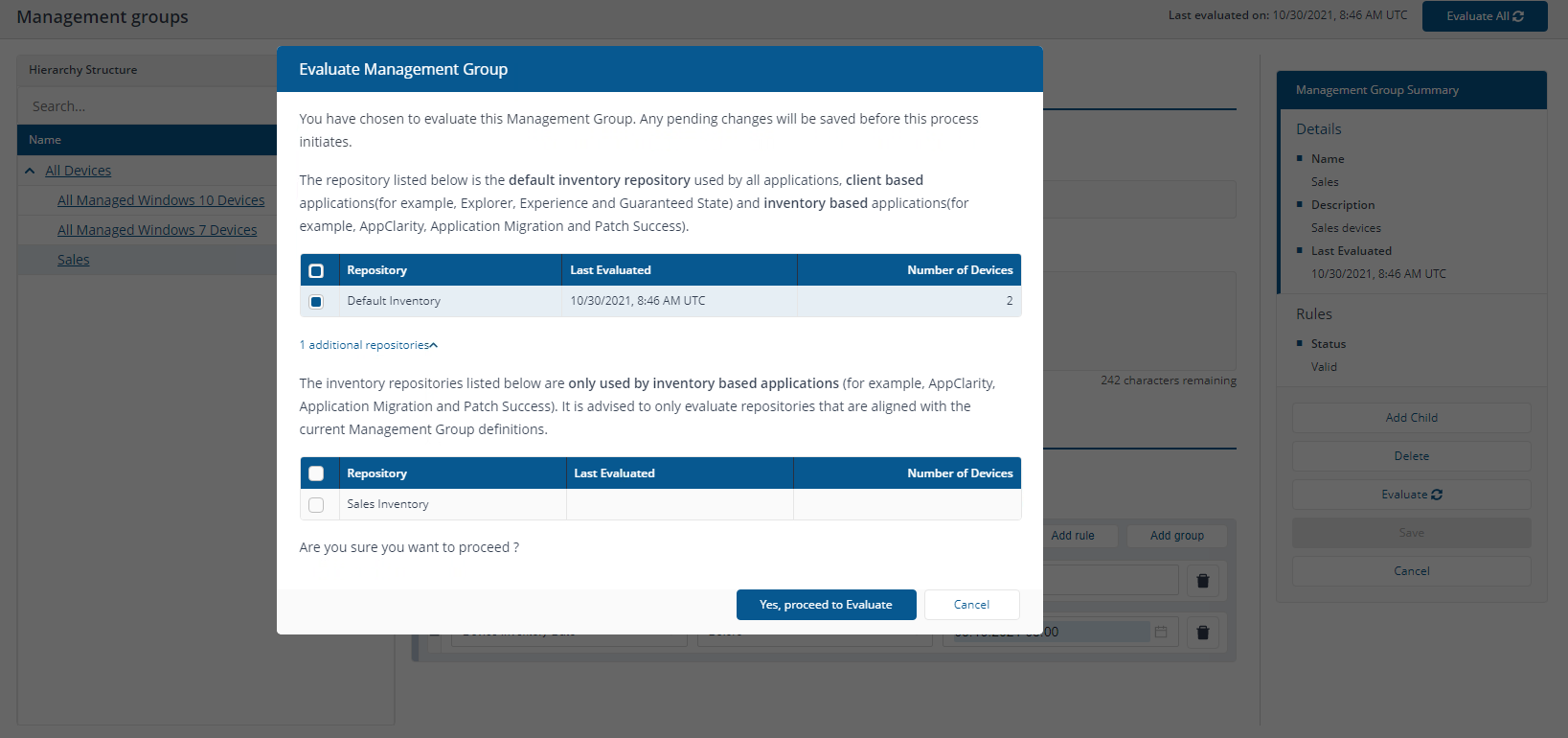

8. If you click Evaluate All and there is more than one inventory repository an additional control will be displayed prompting you to select which repository you want to evaluate the Management Group rules against.

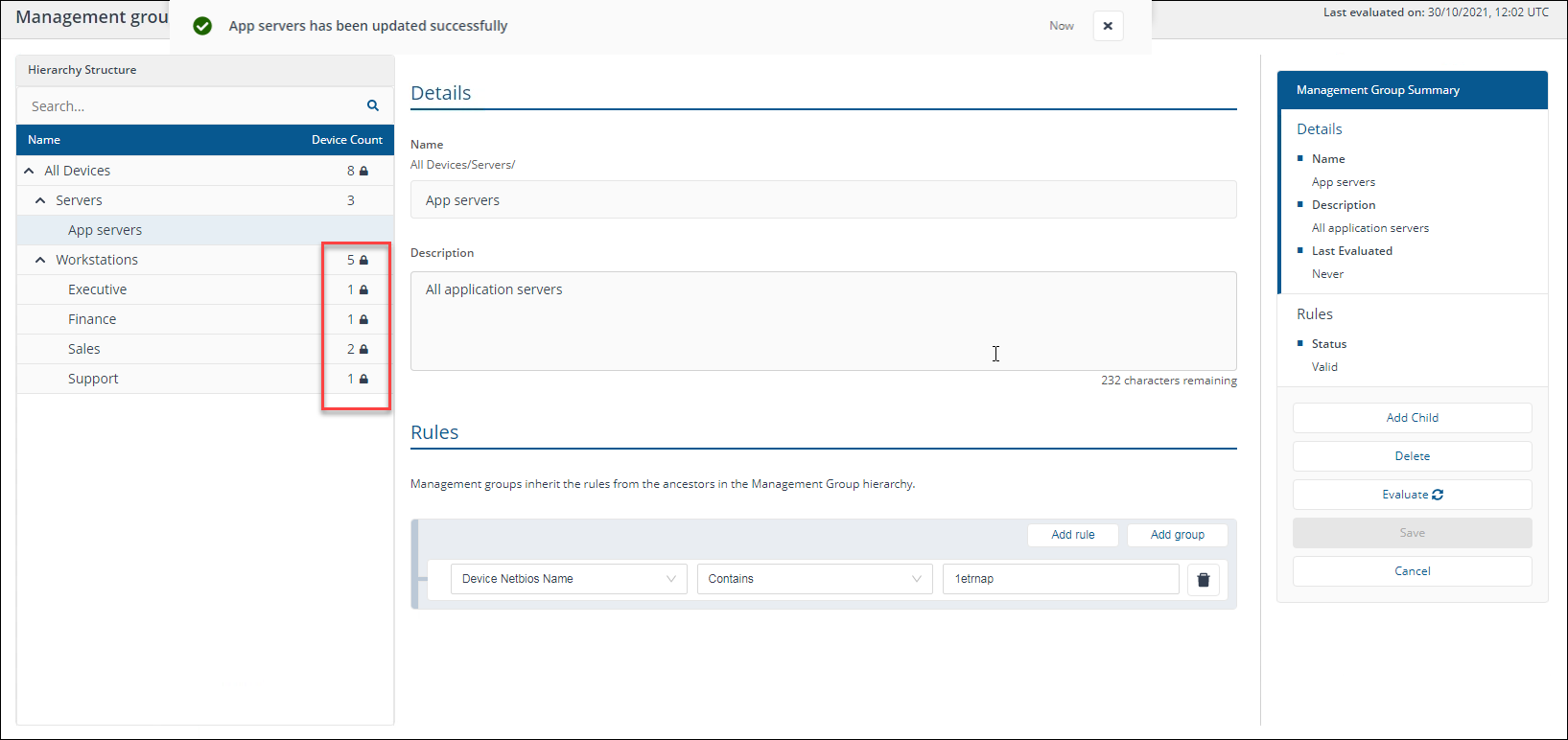

The Management Group will be added to the Hierarchy Structure.

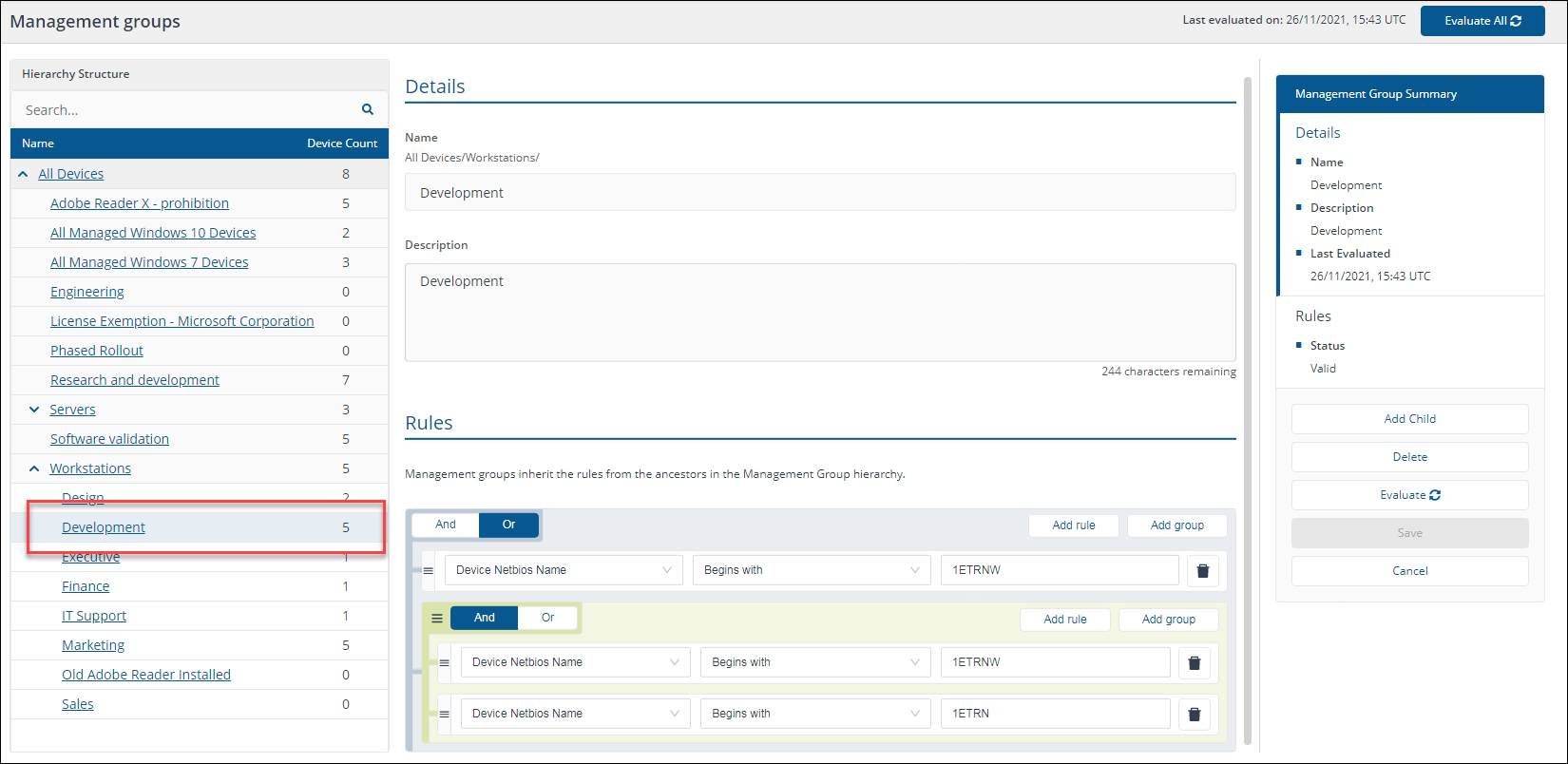

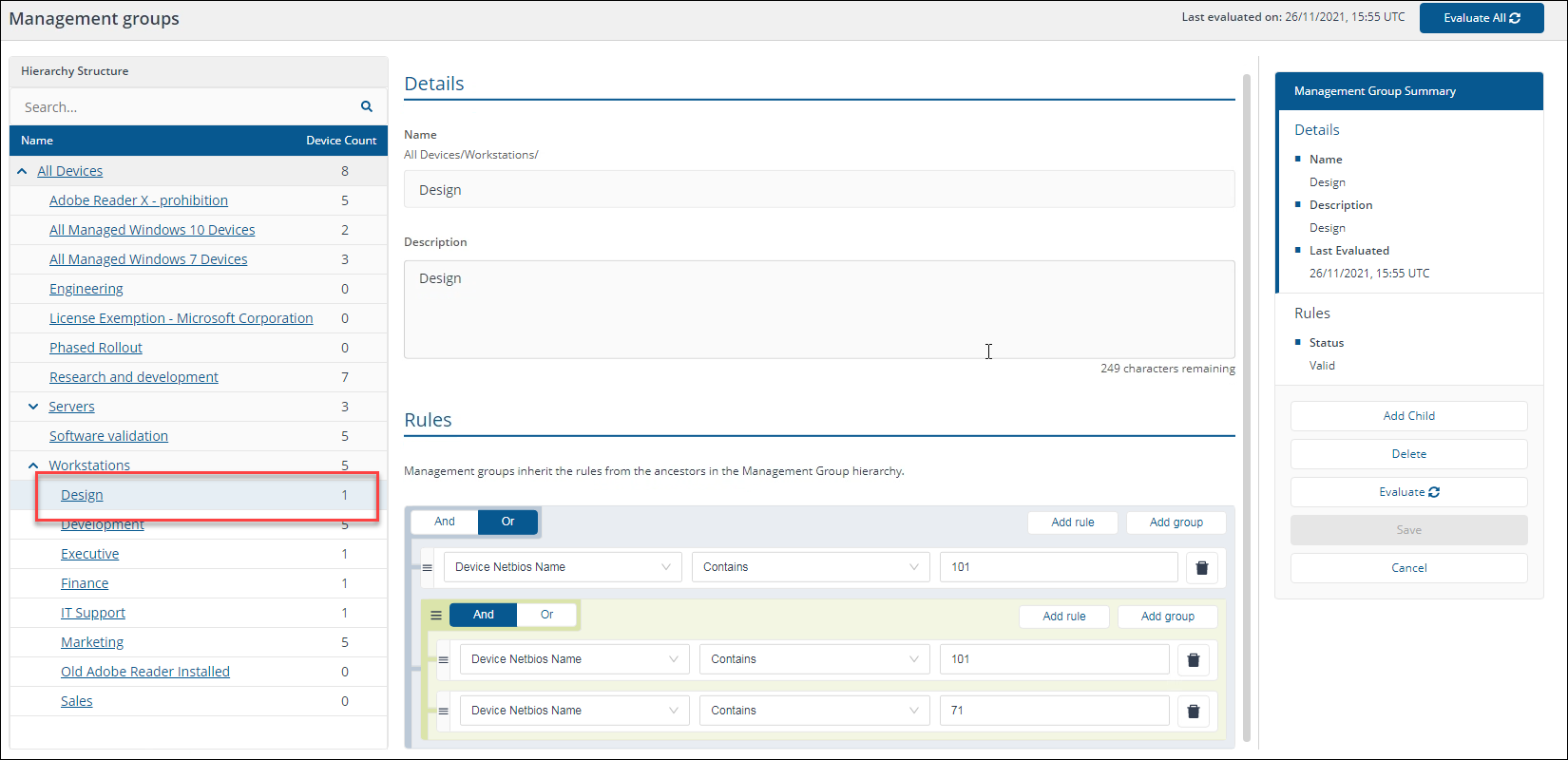

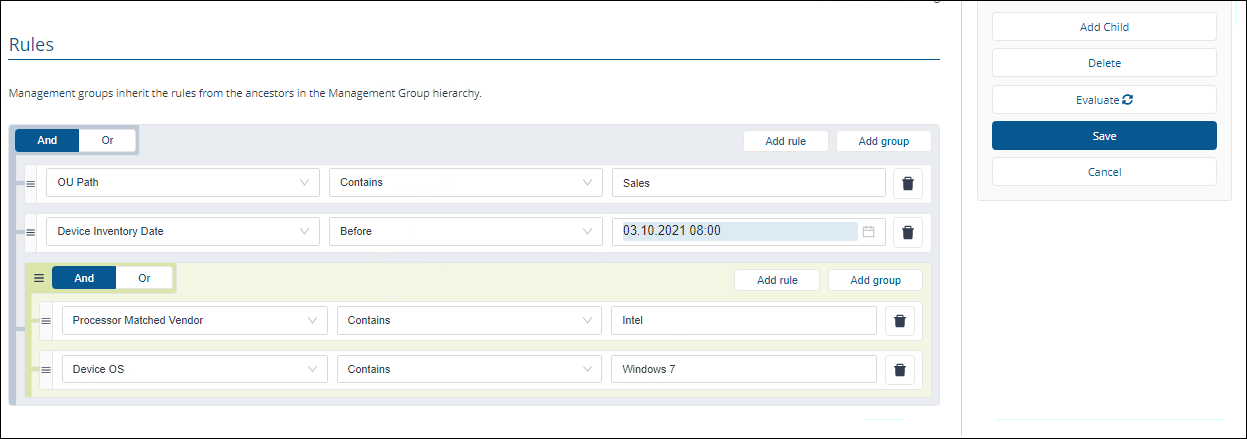

You can create nested groups of rules using Add group. For example, we want to narrow the devices in the Sales group to those devices with an Intel processor and an OS of Windows 7 as we want to upgrade this legacy OS.

If you selected to evaluate rules immediately, the rules you set for the Management Group will be evaluated against the selected inventory repository. To check how many devices are in the Management Group, switch to the Inventory Insights app, select the Management Group name from the drop-down. The picture shows the details for the OU Path contains Sales Management Group, showing that it contains 2 devices.

Once the Management Group rules have been evaluated, you should then be able to check the devices in Endpoint Troubleshooting contained in the group using the Endpoint Troubleshooting > Devices > Table page. The picture shows the Devices table with the Management Group filter set to Sales.

Editing a rule-based Management Group

To edit an existing rule-based Management Group:

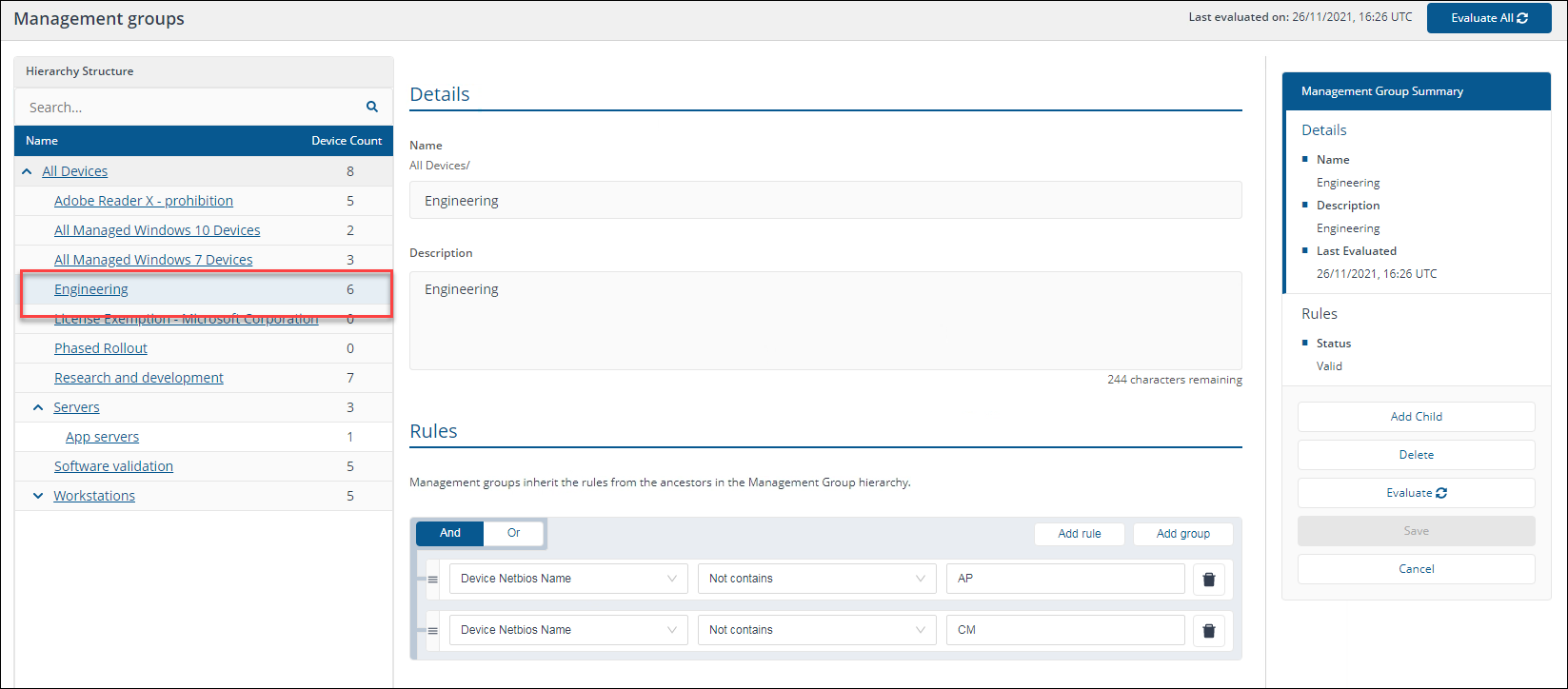

1. In the Management Groups table, locate the Management Group you want to edit and click the title at the left-hand end of its row in Hierarchy Structure.

2. Here you can edit the Name, Description and Rules that define the Management Group.

3. When you've finished editing, before you click Save you can click Evaluate, enables any modifications you've made to the rules to take effect right away. If you don't select the box, the rules won't run, but you'll be able to evaluate the Management Groups later.


You cannot save changes to a Management Group if another user has just made new changes to that group. You will need to Refresh the page first.

Deleting a Management Group

The following applies to rule-based and direct-based Management Groups.

To delete an existing Management Group:

1. In the Management Groups table, locate the Management Group you want to delete and click the title at the left-hand end of its row in Hierarchy Structure.

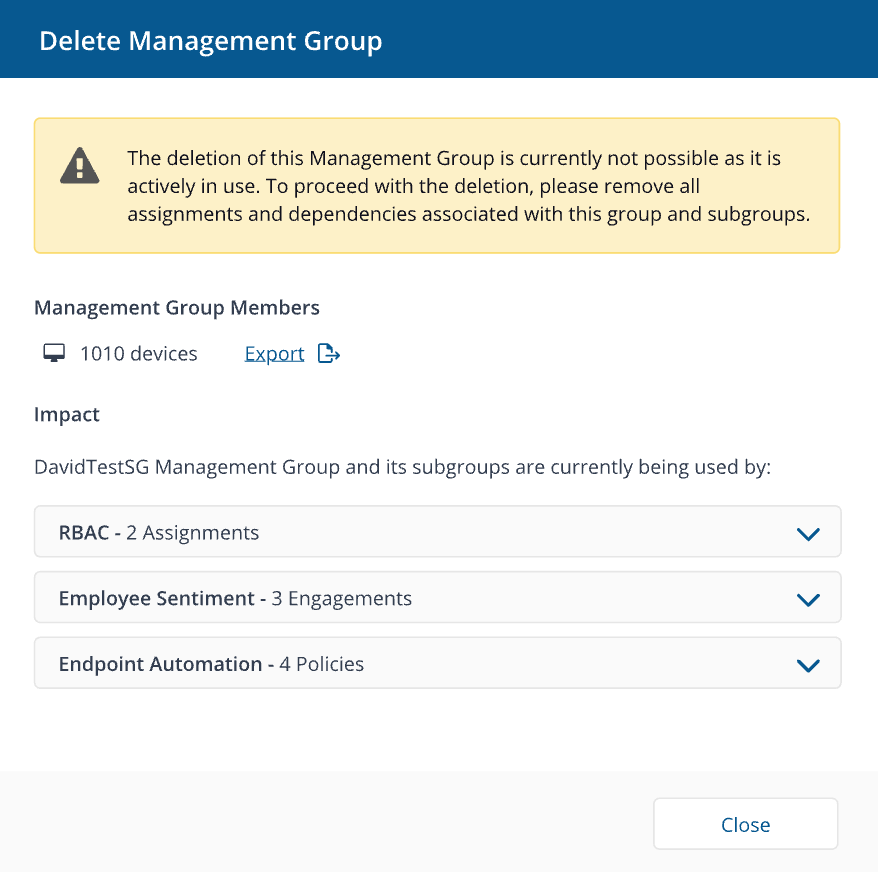

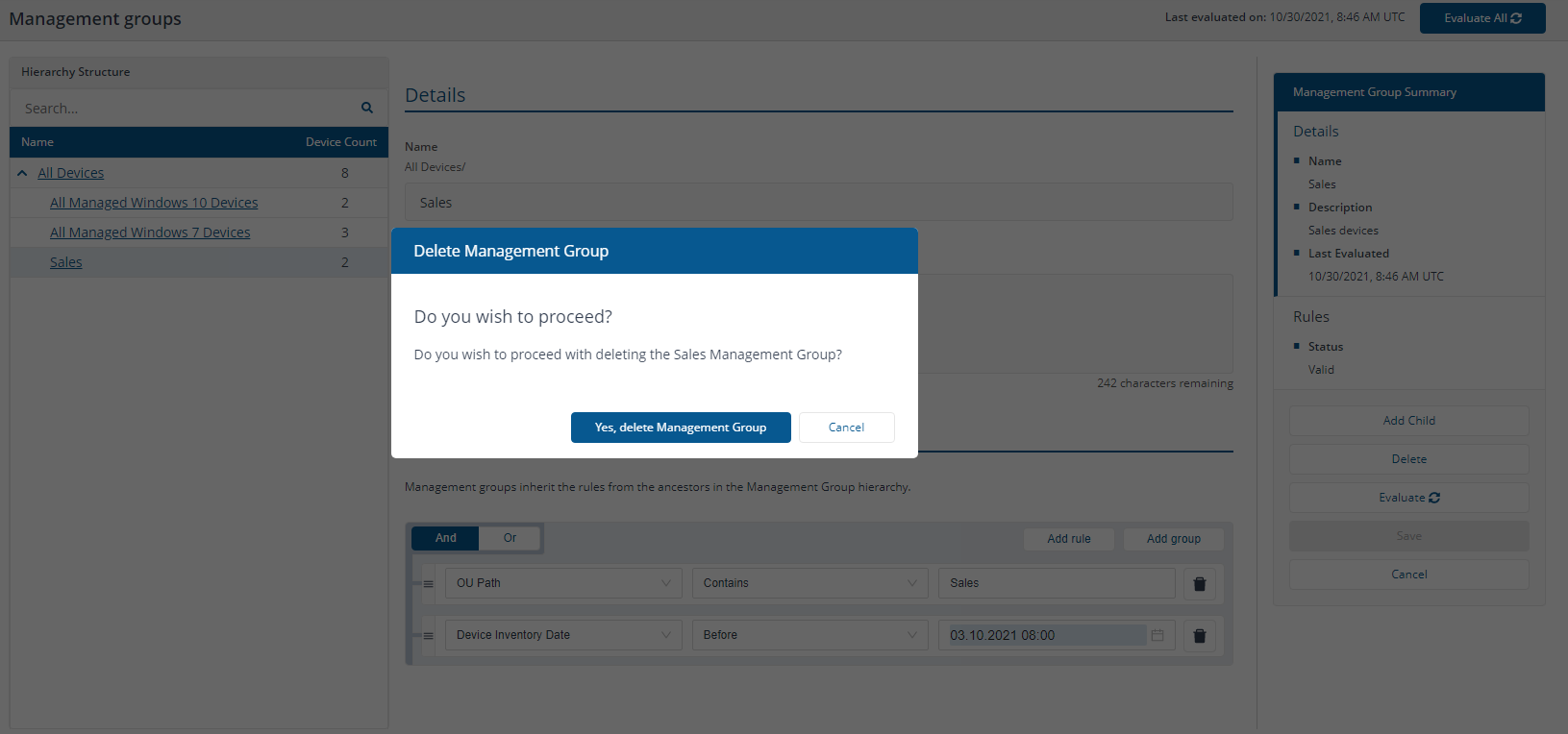

2. Click Delete. This displays the Delete Management Group popup.

   A Management group cannot deleted unless you remove its dependencies (assignments, policies, engagements) first.



3. Here you are asked if you want to proceed with the delete process. Click Yes, delete Management Group to confirm the deletion, or No to cancel.


Evaluating Management Group membership

You can select to evaluate the Management Groups at any time.

When a parent Management Group gets evaluated, all child Management Groups also get evaluated.

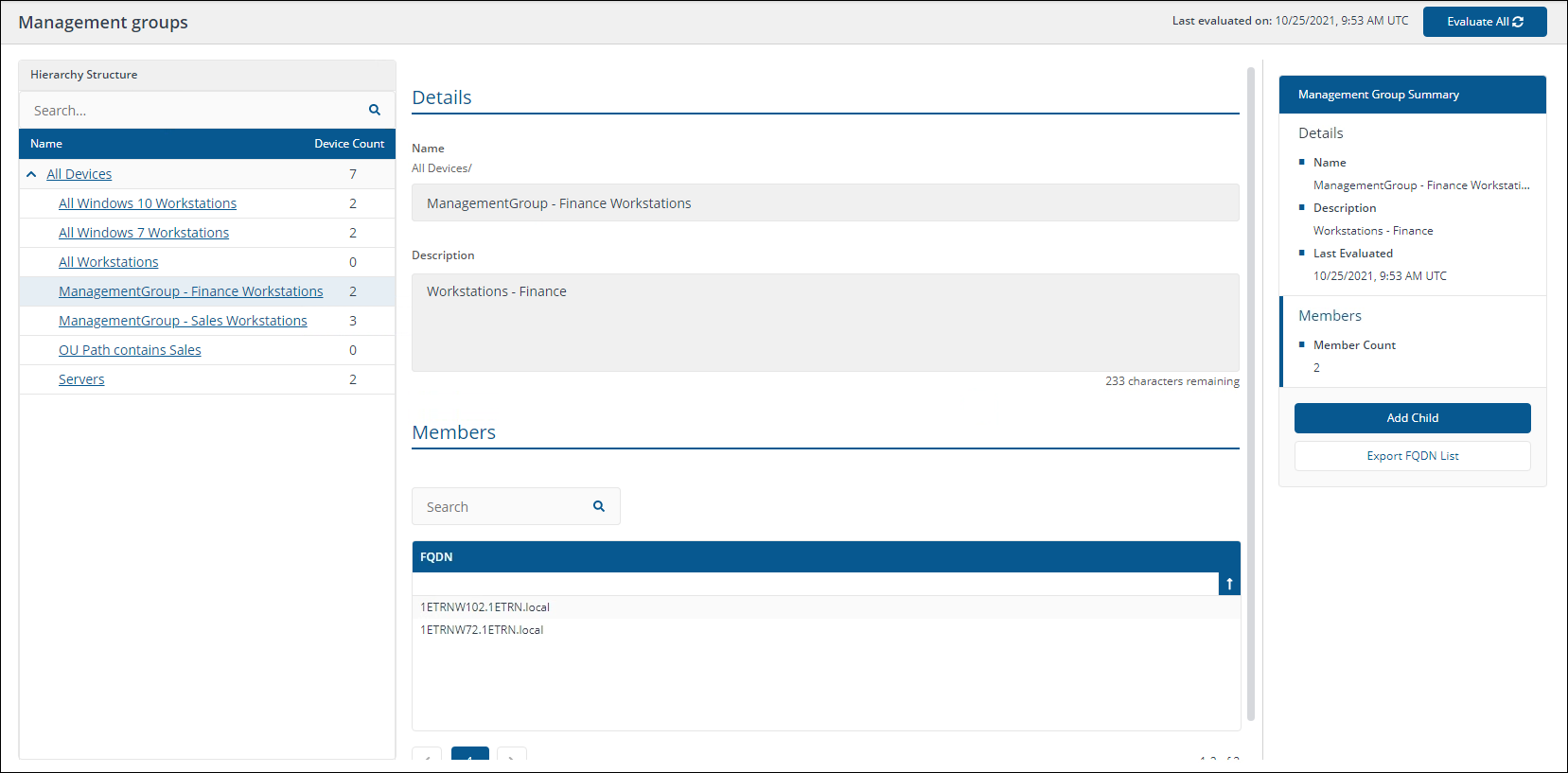

1. Click Evaluate.

2. If there is only one inventory repository, the evaluation will be queued immediately. If there is more than one inventory repository, the Evaluate Management Groups popup will be displayed, and you will need to select a Repository then click the Evaluate before the evaluation is queued.

3. When an evaluation is queued you will see a Management Group Evaluation action appear on the Settings > Monitoring > Process log page. From there you can view the progress of the evaluation.

4. When this action has run, the Endpoint Troubleshooting application will reflect any changes that have been made to the Management Group memberships.


Delegation

Delegation is, a concept where an administrator can delegate some of their own responsibility to other users and limit the area where they can use that responsibility. A Full administrator can create and modify Roles. They can also assign any Role to a 1E Platform user or group using Management Groups, there are exceptions, like the Group Administrator Role which cannot be assigned to All Devices.

For example, a local security administrator with the Group Administrator role cannot create or modify Roles, but they can assign any Role that is marked as delegatable to a Management Group they have the security permission on, or any of its child Management Groups.

The exception is that a local security administrator cannot assign a Role that has the same security permission using the same Management Group they have permissions on. Instead, they have to use a child Management Group of the one they have security permissions on.

Essentially, a local security administrator cannot create an assignment that would result in another user or group having the same security permissions as they do.

Delegation example

In our example we have a new 1E Platform installation with only a few assignments, the one shown in the picture is of the Full Administrator role which is assigned to the group All_Devices_Full_Administrator and is assigned to All Devices. We have used a group to control the assignment instead of an individual user account.

In our example, we want to use the delegation feature and use the Group Administrator role to delegate some tasks to a child Management Group of All Devices called Servers to another administrator. We'll assign the Group Administrator role to a Universal AD group called Server_Group_Administrator which we have added using Users and Groups.

To add the new assignment:

1. We click on the title of the role to configure, in this case Group Administrator this displays the Assignments page focused on that role.

2. Clicking the plus sign allows us to add our group, Server_Group_Administrator and the associated Management Group, Servers.

3. Once we've selected the group and Management Group, we click Save.

When a user in the Server_Group_Administrator group signs in to 1E Platform, they will be able to create a child Management Group. For example a subset of the Servers Management Group for application servers called App servers, other Management Groups at the same level are locked because the Server_Group_Administrator has not been applied to those Management Groups.

If, for example, our Server_Group_Administrator now wants to add a user with the All Instructions Questioner role to the new App servers Management Group, they can now do so.

In computing, a Boolean result means an expression is either true (1) or false (0). That is, expressions such as A AND B or A OR B give you a true or false result. Boolean expressions can be much more complex, and you can use brackets (groupings) to keep the same operators together, for example A AND B AND C. You would not write an expression such as A AND B OR C because it is ambiguous. It can be interpreted as either A AND (B OR C) or (A AND B) OR C.

When you are building rules, and you get different results to the ones you expect, write down each of your rules as A, B, C etc, and put them into a simple Boolean expression, like A OR (A AND B) = A.

This is perhaps the most important point to remember when building Management Group rules, and why it helps to write down what you are trying to achieve as a Boolean expression, then simplify it. The Rule examples section has some simple examples of how Boolean expressions translates to the rules you can apply to your own Management Groups.

Rules section layout

The rows in the Rules section are laid out as follows.

Conjunction	Rule Name	Operators	Value	Delete	Gripper
When there is more than one rule, this field determines how it is evaluated with the other rules. This may be one of: AND: This rule must be satisfied as well as any other rules. OR: Either this rule must be satisfied or any other rules.	Determines the type of information checked when evaluating the rule. For example, selecting Device Computer Name will specify checking the set value against the information held internally for each device's computer name using the selected operand. Refer to List of available rules.	How the value compares against the type of information. This may be one of operators in the following table.	The value field is either a string, date, or numeric value, depending on the chosen rule name. It may also be a Device tag. For more information about Deice tags, refer to Custom properties.	This field contains an icon that lets you delete the rule.	This field lets you grab the rule and change its order where there is more than one rule.

Operators:

Operator	Attribute type	Comparison
Equal to	String, Date, Number, Yes/No	Your value is exactly equal to the device’s value.
Not Equal to	String, Date, Number	Your value is not equal to (different from) the device’s value.
Before	Date	Your date is before the device’s date.
After	Date	Your date is after the device’s date.
Begins with	String	The device’s value begins with your value.
Ends with	String	The device’s value ends with your value.
Less than	Number	Your value is less than the device’s value.
Less than or equal to	Number	Your value is less than or equal to the device’s value.
Greater than	Number	Your value is greater than the device’s value.
Greater than or equal to	Number	Your value is greater than or equal to the device’s value.
Is one of	Tag	The specified Device tag exists on the device, and its value is one of the array of alternative values that you specified.
Is not one of	Tag	The specified Device tag exists on the device, and its value is not one of the array of alternative values that you specified.
Is Null	String, Date, Number, Tag	The device does not provide this information. If you have specified a Device tag, it does not exist on the device.
Is not Null	String, Date, Number, Tag	The device provides this information, but it can be any value. If you have specified a Device tag, it exists on the device, set to any value.
Contains	String	The device’s value contains your text string.
Not Contains	String	The device’s value does not contain your text string.

Rule examples

The following examples may help to illustrate the logic underpinning the rules you can build and apply to the Management Groups in your environment.

Rule example 1

"Device Netbios Name begins with 1ETRNW" OR ("Device Netbios Name begins with 1ETRNW" AND "Device Netbios Name begins with 1ETRN")

Is the same as saying:

"Device Netbios Name begins with 1ETRNW"

You could reduce this to the statement:

A OR (A AND B) = A

In our environment, this returns all five workstation devices with the NetBIOS name beginning 1ETRNW.

Rule example 2

"Device Netbios Name contains 101" OR ("Device Netbios Name Contains 101" AND "Device Netbios Name Contains 71")

Is the same as:

"Device Netbios Name Contains 101"

You could reverse the logic in the statement and say:

"Device Netbios name Contains 101" AND ("Device Netbios name Contains 101" OR "Device Netbios name Contains 71")

Which is the same as:

"Device Netbios Name Contains 101"

You could reduce this to the statement:

A AND (A OR B) = A

In our environment, this returns one workstation device with the NetBIOS name contains 101, which matches one device, 1ETRNW101.

Rule example 3

Management Group rules do not let you place a Boolean NOT operator around a grouping, but you can convert an expression into NOT rules, for example:

NOT ("Device Netbios Name Contains AP" OR "Device Netbios Name Contains CM")

Using rules, you can express this as:

"Device Netbios Name Not contains AP" AND "Device Netbios Name Not contains CM"

You could reduce this to the statement:

NOT (A OR B) = (NOT A) AND (NOT B)

In our environment this returns the six devices where the NetBIOS name does not contain AP or CM, which are 1ETRNAP, our application server, and 1ETRNCM, our Configuration Manager server.

List of available rules

Rules used to create Management Groups, and connectors that provide the data to support the rules.

The number of rules that a single Management Group can contain is variable because of many factors including SQL Server version, server configuration and rule type used. We recommend not exceeding 10,000 rules per rule-based Management Group.

Rule name	Description	SCCM	ServiceNow	1E Platform	OracleLMS	BigFix	BigFixInv	Intune	vCenter	WSUS
Device ADSite Name	AD Site the device is connected to.
Device Assigned Cores	Maximum number of assigned cores for the device. Derived from
Device Classification	Classification of the device. For example, Test, Production or Development. Production is the default.
Device Computer Name	Hostname of the computer.
Device Criticality	By default, Device Criticality is set as one of the following, as described in Using device criticality. Undefined Non-critical Low Medium High Critical
Device Domain Name	Domain the device is installed on.
Device Inventory date	Date that the device was last updated.
Device Matched Device Type	Normalized device type based on chassis type. For example Desktop.
Device Matched Family	Normalized family of the device. For example, Aspire.
Device Matched Model	Normalized model of the device. For example, A30.
Device Matched Socket count	Normalized socket count of the device. For example, 1.
Device Matched Vendor	Normalized vendor name of the device. For example, Acer Inc..
Device Netbios Domain name	NetBIOS version of the device's domain name.
Device Netbios Name	NetBIOS version of the device name.
Device Matched OS	The normalized product title of the OS that is running on the device.
Device Purchase date	Date that the device was purchased.
Device Serial	Serial number of the computer.
Device User Primary Username	The primary user of the device.
OU Name (Deprecated)	Name of the OU that the device is in. For example Sales. All OUs with the same name will be used, therefore the OU Path rule should be used instead. The OU Name rule is deprecated and should be re-defined using OU Path. This rule is deprecated, which means it will continue to work until it is removed in a future version of 1E Platform.
OU Path	The name or path of the OU location in the AD hierarchy, using pipe | as the delimiter. For example, to get all the computers in OU=Sales, OU=Workstations, DC=acme, DC=local you can either specify Sales or - if there is more than one OU called Sales in the AD structure - specify the whole path acme.local|Workstations|Sales. Note that the DC and OU parts of a distinguished name are treated differently.
Processor Matched Chip Module Count	Normalized chip module count of the processor. For example, 1.
Processor Matched Core Count	Normalized core count of the processor. For example, 2.
Processor Matched Family	Normalized family name of the processor. For example, Athlon 64 X2.
Processor Matched Model	Normalized model name of the processor. For example, 3250e.
Processor Matched Processor Type	Normalized type of the processor. For example, Desktop.
Processor Matched Release Date	Normalized release date of the processor. For example, 31-03-2008.
Processor Matched Speed M Hz	Normalized speed of the processor. For example, 2.100.
Processor Matched Threads per Core	Normalized threads per core of the processor. For example, 1.
Processor Matched Vendor	Normalized vendor name of the processor. For example, Advanced Micro Devices, Inc.
Product Catalog Colloquial Version	Software colloquial version contained in the inventory source. For example, 2012. This will usually be blank.
Product Catalog Edition	Software edition contained in the inventory source. For example, Standard. This will usually be blank in SCCM unless the relevant MOF extensions have been installed.
Product Catalog Is Partial Version Matched	Flag that indicates whether the software title was partial matched or not (TRUE/1) or not (FALSE/0).
Product Catalog Matched Colloquial Version	Normalized software colloquial version. For example, 2016.
Product Catalog Matched Edition	Normalized software edition. For example, Standard.
Product Catalog Matched End of Support	Normalized software end of support date that of that version. For example, 31-10-2008.
Product Catalog Matched is Bundle	Flag indicating whether the normalized software is a bundle (TRUE/1) or not (FALSE/0).
Product Catalog Matched Is License Required	Flag indicating whether that normalized software title requires a license (TRUE/1) or not (FALSE/0).
Product Catalog Matched Release Date	Normalized software release date of that version. For example, 31-10-2008.
Product Catalog Matched Title	Normalized software title. For example, Office.
Product Catalog Matched Vendor	Normalized software vendor name. For example, Microsoft Corporation.
Product Catalog Matched Version	Normalized software version. For example, 10.2.233.
Product Catalog Title	Software title contained in the inventory source. For example, Office Standard en_pack.
Product Catalog UN Standard Product Service Code	UNSPC code of the normalized software title.
Product Catalog Vendor	Software vendor name contained in the inventory source. For example, Microsoft.
Product Catalog Version	Software version number contained in the inventory source. For example, 10.2.233.
Product Install Date	Date that software installation was installed according to the inventory source.
Product Instance Name	Instance name if used by a product, for example MSSQLSERVER for SQL Server.
Product Last Used date	Date that software installation was last run according to the inventory source.
Product Usage Category	Usage category assigned to a specific installation of a normalized software title. Potential categories are: Used Unused Rarely used Unreported
